SDO HMI 2014-04-05 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.59 | 151.67 | 18.39 | 83.03 | 17.74 | 30.08 | 7.70 | 342.64 | 0.4285 | -563.3 | -293.9 | |
|
previous
or next observation for the same group /

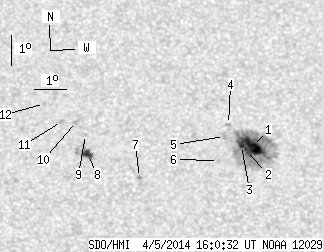

back to the solar disc SDO HMI 2014-04-05 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.21 | 124.23 | 12.73 | 68.10 | 17.74 | 30.90 | 8.52 | 340.84 | 0.4315 | -1235.1 | -442.9 | |
| 2.11 | -1.00 | 1.16 | -1.00 | 17.61 | 30.70 | 8.32 | 341.14 | 0.4285 | -1420.4 | 999999 | |
| 3.08 | -1.00 | 1.69 | -1.00 | 17.77 | 30.55 | 8.17 | 341.59 | 0.4302 | -1154.6 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.97 | 18.45 | 30.17 | 7.79 | 342.89 | 0.4386 | -805.0 | -587.5 | |
| 0.00 | 3.17 | 0.00 | 1.74 | 18.06 | 30.03 | 7.64 | 342.91 | 0.4320 | -748.0 | -610.1 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 17.27 | 29.80 | 7.42 | 342.82 | 0.4190 | -772.0 | -608.2 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 16.68 | 27.29 | 4.90 | 348.13 | 0.4000 | 898.0 | 782.2 | |
| 5.19 | 13.63 | 2.81 | 7.39 | 17.46 | 25.67 | 3.29 | 352.26 | 0.4078 | 1037.1 | 763.5 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 18.08 | 25.62 | 3.24 | 352.58 | 0.4175 | 837.0 | 663.1 | |
| 0.00 | 2.55 | 0.00 | 1.39 | 18.51 | 25.34 | 2.96 | 353.34 | 0.4237 | 770.0 | 648.9 | |
| 0.00 | 1.93 | 0.00 | 1.06 | 18.51 | 24.87 | 2.48 | 354.40 | 0.4229 | 688.0 | 559.3 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 19.10 | 24.34 | 1.95 | 355.70 | 0.4316 | 675.0 | 558.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
