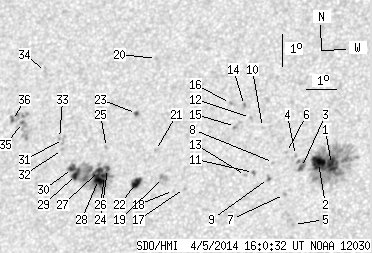

SDO HMI 2014-04-05 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.25 | 287.51 | 35.08 | 161.52 | 10.61 | 359.99 | -22.40 | 52.47 | 0.4715 | -182.5 | -188.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.76 | 125.72 | 5.31 | 68.48 | 10.32 | 4.23 | -18.15 | 47.56 | 0.4172 | -1219.8 | -532.5 | |
| 13.36 | -1.00 | 7.30 | -1.00 | 10.40 | 3.81 | -18.58 | 48.08 | 0.4229 | -1095.6 | 999999 | |
| 1.76 | 8.00 | 0.96 | 4.38 | 10.26 | 3.27 | -19.12 | 49.14 | 0.4279 | -994.7 | -739.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 10.65 | 3.05 | -19.34 | 48.78 | 0.4344 | -636.0 | -513.9 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 8.49 | 3.11 | -19.27 | 52.67 | 0.4123 | -716.0 | -615.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 10.75 | 2.75 | -19.63 | 49.03 | 0.4390 | -496.0 | -454.7 | |
| 0.00 | 1.41 | 0.00 | 0.77 | 9.44 | 2.77 | -19.62 | 51.37 | 0.4257 | -864.0 | -734.0 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 10.45 | 2.35 | -20.04 | 50.13 | 0.4408 | -791.0 | -629.8 | |
| 0.35 | 2.29 | 0.19 | 1.26 | 9.96 | 2.22 | -20.17 | 51.19 | 0.4375 | -1030.8 | -814.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 11.57 | 1.91 | -20.47 | 48.82 | 0.4572 | -772.0 | -563.1 | |
| 0.00 | 1.85 | 0.00 | 1.02 | 10.17 | 1.72 | -20.67 | 51.51 | 0.4457 | -865.0 | -707.9 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 11.90 | 1.49 | -20.89 | 48.84 | 0.4654 | -806.0 | -685.8 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 10.08 | 1.46 | -20.92 | 52.00 | 0.4480 | -421.0 | -369.6 | |
| 0.00 | 1.49 | 0.00 | 0.84 | 12.29 | 1.26 | -21.12 | 48.52 | 0.4719 | -882.0 | -743.1 | |
| 0.00 | 2.20 | 0.00 | 1.23 | 11.64 | 1.02 | -21.36 | 49.91 | 0.4683 | -875.0 | -643.9 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 12.37 | 0.79 | -21.59 | 49.01 | 0.4781 | -682.0 | -571.9 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 9.77 | 359.48 | -22.90 | 55.07 | 0.4698 | 830.0 | 723.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 9.72 | 359.12 | -23.26 | 55.57 | 0.4739 | 671.0 | 561.0 | |
| 0.00 | 4.84 | 0.00 | 2.73 | 10.14 | 358.76 | -23.63 | 55.25 | 0.4821 | 989.0 | 823.2 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 13.92 | 358.17 | -24.22 | 49.84 | 0.5231 | -735.0 | -564.0 | |
| 0.00 | 1.58 | 0.00 | 0.90 | 11.00 | 358.42 | -23.97 | 54.18 | 0.4937 | 727.0 | 481.4 | |
| 6.33 | 8.88 | 3.60 | 5.05 | 10.03 | 357.86 | -24.52 | 56.44 | 0.4924 | 995.8 | 689.3 | |
| 0.79 | 2.11 | 0.46 | 1.22 | 12.20 | 357.67 | -24.72 | 53.07 | 0.5133 | 813.1 | 667.3 | |
| 1.85 | 81.85 | 1.06 | 47.20 | 10.52 | 356.85 | -25.54 | 56.70 | 0.5092 | 827.3 | 74.3 | |
| 0.00 | 1.49 | 0.00 | 0.86 | 11.18 | 356.75 | -25.63 | 55.71 | 0.5157 | 686.0 | 521.1 | |
| 3.52 | -24.00 | 2.02 | -24.00 | 10.30 | 356.76 | -25.62 | 57.14 | 0.5085 | 1114.8 | 999999 | |
| 3.17 | -24.00 | 1.82 | -24.00 | 10.47 | 356.58 | -25.80 | 57.06 | 0.5121 | 723.4 | 999999 | |
| 11.25 | -24.00 | 6.47 | -24.00 | 10.19 | 356.57 | -25.81 | 57.53 | 0.5100 | 997.0 | 999999 | |
| 5.36 | -24.00 | 3.11 | -24.00 | 10.38 | 355.81 | -26.58 | 57.97 | 0.5212 | -1103.7 | 999999 | |
| 3.43 | -24.00 | 1.99 | -24.00 | 10.58 | 355.65 | -26.73 | 57.80 | 0.5247 | -962.8 | 999999 | |
| 0.00 | 3.52 | 0.00 | 2.06 | 11.51 | 355.25 | -27.13 | 56.69 | 0.5369 | -714.0 | -616.9 | |
| 0.00 | 1.41 | 0.00 | 0.82 | 11.19 | 355.25 | -27.14 | 57.19 | 0.5345 | -758.0 | -587.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 11.55 | 355.11 | -27.28 | 56.77 | 0.5389 | -630.0 | -529.7 | |
| 0.00 | 4.04 | 0.00 | 2.42 | 13.70 | 354.37 | -28.02 | 54.18 | 0.5649 | 644.0 | 426.9 | |
| 0.62 | 11.17 | 0.37 | 6.64 | 12.12 | 353.76 | -28.63 | 57.13 | 0.5598 | 939.3 | 743.4 | |
| 0.70 | 10.64 | 0.42 | 6.37 | 12.21 | 353.40 | -28.99 | 57.33 | 0.5648 | 702.5 | 657.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
