SDO HMI 2014-04-05 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.42 | 613.60 | 65.67 | 306.62 | -11.29 | 18.16 | -3.68 | 154.09 | 0.1270 | -52.8 | -196.6 | |
|
previous
or next observation for the same group /

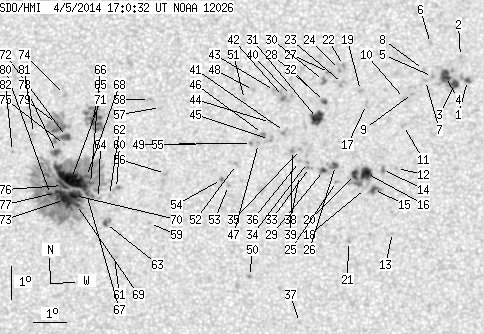

back to the solar disc SDO HMI 2014-04-05 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.23 | 5.54 | 0.61 | 2.76 | -8.84 | 27.75 | 5.91 | 246.07 | 0.1119 | 1092.4 | 797.9 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -8.12 | 27.52 | 5.69 | 251.62 | 0.1039 | 760.0 | 617.2 | |
| 4.31 | 22.51 | 2.15 | 11.21 | -8.96 | 27.35 | 5.52 | 243.55 | 0.1066 | 1092.8 | 818.4 | |
| 7.56 | -3.00 | 3.76 | -3.00 | -8.72 | 27.07 | 5.24 | 244.50 | 0.1005 | 1215.8 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -8.73 | 26.68 | 4.84 | 242.72 | 0.0944 | 1117.0 | 895.6 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -7.74 | 26.61 | 4.77 | 252.63 | 0.0868 | 917.0 | 764.5 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -8.85 | 26.47 | 4.63 | 240.51 | 0.0921 | 951.0 | 782.5 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -8.52 | 26.40 | 4.57 | 243.43 | 0.0885 | 822.0 | 612.4 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.24 | 26.07 | 4.24 | 234.57 | 0.0900 | 1027.0 | 828.1 | |
| 0.00 | 2.99 | 0.00 | 1.49 | -9.39 | 25.83 | 4.00 | 231.60 | 0.0882 | 926.0 | 751.0 | |
| 0.00 | 2.55 | 0.00 | 1.27 | -10.20 | 25.81 | 3.98 | 224.83 | 0.0973 | 874.0 | 785.6 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -11.50 | 25.61 | 3.78 | 215.32 | 0.1122 | 969.0 | 686.8 | |
| 0.00 | 0.53 | 0.00 | 0.26 | -13.43 | 25.51 | 3.68 | 206.61 | 0.1401 | 571.0 | 365.0 | |
| 0.00 | 3.16 | 0.00 | 1.58 | -11.53 | 25.18 | 3.35 | 211.99 | 0.1086 | 1127.0 | 894.5 | |
| 1.85 | 6.77 | 0.92 | 3.38 | -12.13 | 24.91 | 3.08 | 207.22 | 0.1154 | 1071.1 | 756.2 | |
| 8.88 | 26.90 | 4.42 | 13.40 | -11.65 | 24.69 | 2.86 | 207.54 | 0.1062 | 1191.6 | 831.8 | |
| 0.00 | 2.81 | 0.00 | 1.40 | -9.58 | 24.68 | 2.84 | 220.32 | 0.0760 | 900.0 | 713.5 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -12.10 | 24.67 | 2.83 | 205.45 | 0.1130 | 852.0 | 599.8 | |
| 0.00 | 2.02 | 0.00 | 1.00 | -9.16 | 24.49 | 2.66 | 222.30 | 0.0684 | 842.0 | 825.6 | |
| 3.87 | -16.00 | 1.93 | -16.00 | -11.68 | 24.36 | 2.52 | 204.59 | 0.1041 | 1157.8 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -13.71 | 24.16 | 2.33 | 196.96 | 0.1358 | 958.0 | 701.9 | |
| 0.00 | 2.20 | 0.00 | 1.09 | -8.41 | 23.97 | 2.14 | 224.75 | 0.0527 | 929.0 | 680.7 | |
| 0.00 | 3.87 | 0.00 | 1.92 | -8.95 | 23.94 | 2.11 | 217.95 | 0.0594 | 756.0 | 803.4 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -8.53 | 23.85 | 2.02 | 221.52 | 0.0528 | 952.0 | 819.7 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -11.90 | 23.78 | 1.94 | 198.72 | 0.1039 | 833.0 | 571.0 | |
| 1.93 | 6.24 | 0.96 | 3.11 | -11.41 | 23.74 | 1.91 | 200.05 | 0.0958 | 1071.5 | 844.6 | |
| 0.00 | 2.55 | 0.00 | 1.26 | -8.62 | 23.55 | 1.72 | 215.89 | 0.0507 | 974.0 | 908.8 | |
| 1.05 | 3.25 | 0.52 | 1.61 | -9.49 | 23.40 | 1.57 | 205.68 | 0.0625 | 1113.9 | 819.1 | |
| 1.49 | 4.92 | 0.74 | 2.45 | -11.57 | 23.38 | 1.54 | 195.98 | 0.0963 | 927.9 | 573.2 | |
| 0.00 | 3.69 | 0.00 | 1.83 | -8.86 | 23.37 | 1.53 | 210.41 | 0.0525 | 1059.0 | 886.3 | |
| 9.85 | 12.84 | 4.89 | 6.37 | -10.00 | 23.19 | 1.36 | 199.73 | 0.0693 | 1163.9 | 738.9 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -9.31 | 23.19 | 1.35 | 203.77 | 0.0581 | 888.0 | 675.4 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -11.48 | 22.95 | 1.12 | 191.89 | 0.0930 | 726.0 | 689.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.33 | 22.89 | 1.05 | 191.58 | 0.0902 | 1154.0 | 936.7 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -10.93 | 22.67 | 0.84 | 190.05 | 0.0828 | 1021.0 | 708.7 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -11.30 | 22.64 | 0.81 | 189.00 | 0.0889 | 808.0 | 583.9 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -16.16 | 22.65 | 0.82 | 184.58 | 0.1730 | 878.0 | 690.9 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -11.72 | 22.64 | 0.81 | 188.31 | 0.0962 | -499.0 | -370.0 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -10.96 | 22.43 | 0.59 | 187.11 | 0.0827 | 1042.0 | 865.0 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.31 | 22.40 | 0.56 | 190.39 | 0.0540 | 886.0 | 819.9 | |
| 0.00 | 3.69 | 0.00 | 1.83 | -10.39 | 22.18 | 0.35 | 184.80 | 0.0723 | 810.0 | 570.0 | |
| 0.00 | 5.98 | 0.00 | 2.97 | -9.34 | 22.15 | 0.32 | 185.90 | 0.0540 | 1059.0 | 874.7 | |
| 0.00 | 2.99 | 0.00 | 1.48 | -9.16 | 21.88 | 0.05 | 180.93 | 0.0505 | 845.0 | 624.9 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -10.12 | 21.76 | -0.08 | 178.89 | 0.0673 | 962.0 | 718.5 | |
| 0.00 | 4.57 | 0.00 | 2.27 | -10.63 | 21.73 | -0.11 | 178.62 | 0.0763 | 648.0 | 654.0 | |
| 0.00 | 1.93 | 0.00 | 0.96 | -10.45 | 21.51 | -0.32 | 175.68 | 0.0733 | 1083.0 | 977.3 | |
| 0.00 | 2.37 | 0.00 | 1.18 | -10.75 | 21.39 | -0.44 | 174.44 | 0.0787 | 880.0 | 676.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.16 | 21.24 | -0.59 | 168.56 | 0.0515 | 882.0 | 740.4 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -10.75 | 21.18 | -0.66 | 171.79 | 0.0792 | 988.0 | 830.8 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -14.77 | 21.10 | -0.73 | 175.20 | 0.1488 | 1044.0 | 809.5 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.43 | 20.97 | -0.86 | 164.85 | 0.0572 | 1035.0 | 850.1 | |
| 0.00 | 2.46 | 0.00 | 1.22 | -11.38 | 20.72 | -1.12 | 167.88 | 0.0914 | -924.0 | -693.1 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -12.01 | 20.47 | -1.37 | 166.87 | 0.1031 | -838.0 | -708.6 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -11.83 | 20.25 | -1.58 | 164.43 | 0.1010 | -1088.0 | -960.9 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.75 | 19.59 | -2.24 | 153.74 | 0.0873 | 811.0 | 759.6 | |
| 0.00 | 2.46 | 0.00 | 1.23 | -11.64 | 18.54 | -3.29 | 149.00 | 0.1097 | -743.0 | -692.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.66 | 18.41 | -3.42 | 135.13 | 0.0838 | -554.0 | -559.1 | |
| 0.00 | 3.34 | 0.00 | 1.66 | -9.41 | 18.08 | -3.75 | 130.37 | 0.0852 | -984.0 | -709.0 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -13.15 | 18.03 | -3.81 | 151.64 | 0.1367 | -802.0 | -591.3 | |
| 0.00 | 4.31 | 0.00 | 2.15 | -12.08 | 17.03 | -4.80 | 141.08 | 0.1310 | -936.0 | -740.0 | |
| 0.00 | 2.55 | 0.00 | 1.28 | -14.16 | 16.92 | -4.91 | 148.89 | 0.1614 | -617.0 | -503.1 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -12.29 | 16.81 | -5.02 | 140.85 | 0.1362 | -839.0 | -703.8 | |
| 1.14 | 4.48 | 0.57 | 2.25 | -13.13 | 16.67 | -5.17 | 143.79 | 0.1491 | -1026.8 | -857.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.38 | 16.47 | -5.36 | 139.43 | 0.1411 | -903.0 | -717.1 | |
| 2.11 | 35.25 | 1.05 | 17.58 | -10.06 | 16.33 | -5.50 | 125.11 | 0.1159 | -1346.5 | -889.2 | |
| 1.23 | 326.78 | 0.62 | 163.69 | -11.92 | 16.23 | -5.60 | 135.98 | 0.1381 | -1017.2 | -469.4 | |
| 1.32 | -66.00 | 0.66 | -66.00 | -12.22 | 16.10 | -5.73 | 136.83 | 0.1433 | -979.3 | 999999 | |
| 1.14 | -66.00 | 0.57 | -66.00 | -11.71 | 16.11 | -5.72 | 134.27 | 0.1369 | -943.7 | 999999 | |
| 2.81 | -66.00 | 1.41 | -66.00 | -12.55 | 15.79 | -6.05 | 136.87 | 0.1511 | -994.2 | 999999 | |
| 11.17 | -66.00 | 5.59 | -66.00 | -12.28 | 15.73 | -6.10 | 135.33 | 0.1484 | -1221.1 | 999999 | |
| 35.25 | -66.00 | 17.64 | -66.00 | -11.76 | 15.65 | -6.18 | 132.37 | 0.1434 | -1353.1 | 999999 | |
| 3.25 | 9.76 | 1.63 | 4.88 | -10.50 | 15.53 | -6.31 | 124.49 | 0.1317 | -1256.1 | -984.9 | |
| 18.99 | -66.00 | 9.52 | -66.00 | -12.39 | 15.42 | -6.41 | 134.48 | 0.1536 | -1103.7 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.24 | 15.49 | -6.34 | 115.60 | 0.1215 | -746.0 | -698.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.74 | 15.46 | -6.37 | 125.70 | 0.1349 | -918.0 | -737.8 | |
| 4.57 | -66.00 | 2.29 | -66.00 | -11.97 | 15.37 | -6.47 | 132.19 | 0.1493 | -1170.9 | 999999 | |
| 1.85 | -66.00 | 0.93 | -66.00 | -12.18 | 15.18 | -6.66 | 132.41 | 0.1542 | -1002.4 | 999999 | |
| 2.20 | 5.89 | 1.10 | 2.95 | -10.98 | 15.21 | -6.63 | 126.09 | 0.1408 | -1239.4 | -907.4 | |
| 0.00 | 31.03 | 0.00 | 15.51 | -10.10 | 15.23 | -6.61 | 120.76 | 0.1324 | -885.0 | -591.6 | |
| 2.37 | -66.00 | 1.19 | -66.00 | -12.24 | 14.99 | -6.84 | 131.92 | 0.1572 | -850.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.39 | 14.52 | -7.32 | 120.10 | 0.1455 | -623.0 | -535.8 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -10.93 | 13.86 | -7.98 | 121.04 | 0.1598 | -807.0 | -563.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
