SDO HMI 2014-04-05 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.49 | 593.49 | 63.19 | 296.41 | -11.36 | 18.14 | -3.14 | 157.46 | 0.1251 | -58.4 | -221.4 | |
|
previous
or next observation for the same group /

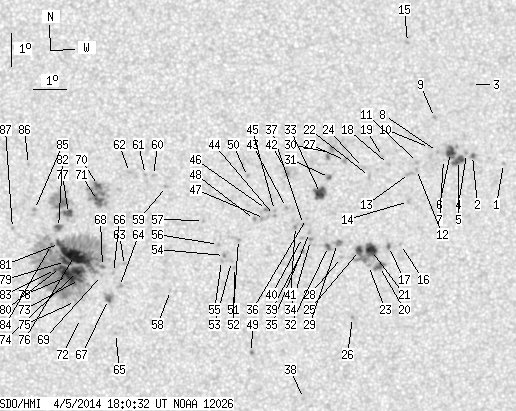

back to the solar disc SDO HMI 2014-04-05 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.53 | -9.02 | 28.75 | 7.47 | 249.20 | 0.1380 | 883.0 | 762.2 | |
| 0.88 | 2.46 | 0.44 | 1.23 | -8.80 | 27.80 | 6.52 | 248.33 | 0.1213 | 1060.9 | 848.4 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -6.67 | 27.74 | 6.46 | 266.19 | 0.1125 | 857.0 | 586.7 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -8.74 | 27.62 | 6.34 | 248.24 | 0.1180 | 899.0 | 737.3 | |
| 5.27 | 22.07 | 2.63 | 11.00 | -8.95 | 27.38 | 6.09 | 245.77 | 0.1155 | 1081.8 | 828.1 | |
| 6.68 | -5.00 | 3.33 | -5.00 | -8.71 | 27.13 | 5.85 | 246.88 | 0.1100 | 1236.6 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -8.93 | 26.92 | 5.64 | 244.32 | 0.1082 | 606.0 | 495.7 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.69 | 26.73 | 5.45 | 245.66 | 0.1035 | 1037.0 | 928.8 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -7.67 | 26.63 | 5.35 | 255.04 | 0.0960 | 996.0 | 832.8 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -8.57 | 26.49 | 5.21 | 245.77 | 0.0988 | 874.0 | 571.0 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -9.02 | 26.13 | 4.85 | 239.98 | 0.0968 | 986.0 | 690.0 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.23 | 26.10 | 4.82 | 237.96 | 0.0982 | 1041.0 | 742.8 | |
| 0.00 | 2.90 | 0.00 | 1.44 | -9.35 | 25.89 | 4.61 | 235.74 | 0.0963 | 1060.0 | 879.1 | |
| 0.00 | 2.37 | 0.00 | 1.18 | -10.20 | 25.87 | 4.59 | 228.92 | 0.1049 | 990.0 | 748.4 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -5.43 | 25.79 | 4.51 | 280.55 | 0.0800 | 1020.0 | 737.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.49 | 25.64 | 4.36 | 219.27 | 0.1182 | 859.0 | 602.6 | |
| 0.62 | 2.20 | 0.31 | 1.10 | -11.55 | 25.27 | 3.99 | 216.51 | 0.1152 | 1094.3 | 900.3 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -9.09 | 25.24 | 3.96 | 234.19 | 0.0845 | 907.0 | 728.2 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.85 | 25.06 | 3.78 | 235.33 | 0.0795 | 926.0 | 699.3 | |
| 3.25 | 6.86 | 1.62 | 3.42 | -12.16 | 25.00 | 3.72 | 211.75 | 0.1212 | 993.4 | 804.2 | |
| 9.76 | 31.82 | 4.86 | 15.86 | -11.68 | 24.75 | 3.47 | 212.19 | 0.1118 | 1158.0 | 767.4 | |
| 0.00 | 2.90 | 0.00 | 1.44 | -9.45 | 24.67 | 3.39 | 226.41 | 0.0809 | 1067.0 | 761.4 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -12.13 | 24.67 | 3.38 | 209.49 | 0.1178 | 782.0 | 640.4 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -9.18 | 24.49 | 3.20 | 227.37 | 0.0753 | 965.0 | 801.5 | |
| 3.87 | -21.00 | 1.93 | -21.00 | -11.68 | 24.39 | 3.10 | 209.37 | 0.1086 | 1098.7 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -13.70 | 24.19 | 2.91 | 200.89 | 0.1390 | 958.0 | 763.2 | |
| 0.00 | 3.52 | 0.00 | 1.75 | -8.97 | 23.94 | 2.66 | 224.16 | 0.0660 | 1117.0 | 858.6 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -11.89 | 23.84 | 2.55 | 204.02 | 0.1076 | 763.0 | 382.8 | |
| 0.00 | 4.75 | 0.00 | 2.36 | -11.47 | 23.71 | 2.43 | 204.64 | 0.1001 | 1216.0 | 971.9 | |
| 0.00 | 5.54 | 0.00 | 2.75 | -8.74 | 23.48 | 2.20 | 221.46 | 0.0575 | 710.0 | 952.5 | |
| 0.88 | 2.37 | 0.44 | 1.18 | -9.49 | 23.45 | 2.17 | 213.72 | 0.0676 | 1073.3 | 853.9 | |
| 1.49 | 3.52 | 0.74 | 1.75 | -11.56 | 23.43 | 2.15 | 201.79 | 0.0996 | 988.1 | 717.7 | |
| 8.35 | 12.31 | 4.15 | 6.11 | -9.97 | 23.18 | 1.90 | 206.91 | 0.0725 | 1198.1 | 801.2 | |
| 0.00 | 2.55 | 0.00 | 1.27 | -11.38 | 22.88 | 1.60 | 197.12 | 0.0935 | 1042.0 | 803.0 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -11.14 | 22.85 | 1.57 | 197.60 | 0.0893 | 1094.0 | 818.1 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.72 | 22.76 | 1.48 | 198.11 | 0.0818 | 912.0 | 748.0 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.90 | 22.67 | 1.39 | 196.42 | 0.0844 | 1043.0 | 840.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -16.16 | 22.69 | 1.41 | 187.84 | 0.1740 | 756.0 | 598.2 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -11.71 | 22.64 | 1.36 | 193.77 | 0.0979 | -692.0 | -524.5 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -11.29 | 22.64 | 1.36 | 194.88 | 0.0908 | 764.0 | 558.8 | |
| 0.00 | 2.37 | 0.00 | 1.18 | -10.96 | 22.42 | 1.14 | 193.48 | 0.0843 | 998.0 | 866.2 | |
| 0.00 | 4.92 | 0.00 | 2.44 | -9.34 | 22.18 | 0.89 | 196.11 | 0.0558 | 1102.0 | 948.8 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.39 | 22.15 | 0.87 | 191.72 | 0.0735 | 965.0 | 853.4 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.63 | 21.78 | 0.50 | 186.46 | 0.0767 | 935.0 | 756.9 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.48 | 21.78 | 0.50 | 186.69 | 0.0741 | 1081.0 | 885.9 | |
| 0.00 | 1.93 | 0.00 | 0.96 | -10.45 | 21.54 | 0.26 | 183.47 | 0.0732 | 1128.0 | 958.0 | |
| 0.00 | 4.31 | 0.00 | 2.14 | -10.72 | 21.48 | 0.20 | 182.48 | 0.0778 | 752.0 | 670.2 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -10.75 | 21.17 | -0.11 | 178.62 | 0.0783 | 1063.0 | 836.6 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -14.76 | 21.07 | -0.21 | 178.63 | 0.1482 | 908.0 | 786.7 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.46 | 20.96 | -0.32 | 174.32 | 0.0560 | 1043.0 | 851.9 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -11.35 | 20.68 | -0.60 | 173.38 | 0.0894 | -961.0 | -786.4 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -12.19 | 20.56 | -0.73 | 173.15 | 0.1042 | -746.0 | -543.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -12.01 | 20.46 | -0.82 | 172.06 | 0.1013 | -847.0 | -631.0 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.83 | 20.25 | -1.03 | 169.69 | 0.0988 | -1057.0 | -949.4 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.98 | 20.16 | -1.12 | 169.08 | 0.1016 | -779.0 | -608.5 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -11.50 | 20.07 | -1.21 | 167.17 | 0.0937 | -950.0 | -725.7 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.78 | 19.62 | -1.67 | 159.99 | 0.0838 | 756.0 | 664.5 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -12.88 | 18.58 | -2.70 | 158.26 | 0.1244 | -723.0 | -458.9 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.75 | 18.50 | -2.79 | 141.68 | 0.0776 | -760.0 | -645.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.42 | 18.10 | -3.18 | 135.08 | 0.0778 | -959.0 | -722.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.38 | 17.86 | -3.42 | 132.69 | 0.0805 | -898.0 | -610.8 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.32 | 17.37 | -3.91 | 128.38 | 0.0862 | -905.0 | -804.9 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -12.11 | 17.18 | -4.10 | 145.55 | 0.1242 | -506.0 | -554.1 | |
| 0.00 | 2.81 | 0.00 | 1.41 | -12.75 | 17.02 | -4.27 | 147.27 | 0.1348 | -781.0 | -690.3 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -14.16 | 16.86 | -4.42 | 151.49 | 0.1572 | -822.0 | -681.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -12.32 | 16.84 | -4.44 | 144.36 | 0.1305 | -849.0 | -694.5 | |
| 2.02 | 7.82 | 1.01 | 3.92 | -13.13 | 16.67 | -4.61 | 146.80 | 0.1437 | -1016.1 | -842.5 | |
| 0.44 | 314.38 | 0.22 | 157.33 | -12.14 | 16.50 | -4.78 | 141.51 | 0.1314 | -768.6 | -493.5 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -12.41 | 16.47 | -4.81 | 142.58 | 0.1355 | -822.0 | -658.9 | |
| 2.46 | 38.33 | 1.23 | 19.09 | -9.70 | 16.42 | -4.86 | 125.73 | 0.1033 | -983.8 | -832.6 | |
| 5.71 | -70.00 | 2.85 | -70.00 | -10.15 | 16.39 | -4.90 | 128.94 | 0.1085 | -1234.0 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -13.70 | 15.79 | -5.49 | 144.35 | 0.1602 | -701.0 | -573.0 | |
| 2.55 | -68.00 | 1.28 | -68.00 | -12.52 | 15.79 | -5.49 | 139.44 | 0.1444 | -999.8 | 999999 | |
| 10.37 | -68.00 | 5.19 | -68.00 | -12.28 | 15.73 | -5.55 | 138.01 | 0.1419 | -1255.6 | 999999 | |
| 0.00 | 2.02 | 0.00 | 1.01 | -13.18 | 15.65 | -5.63 | 141.63 | 0.1547 | -654.0 | -447.3 | |
| 25.93 | -68.00 | 12.97 | -68.00 | -11.80 | 15.65 | -5.63 | 135.17 | 0.1369 | -1431.3 | 999999 | |
| 3.78 | 38.42 | 1.89 | 19.18 | -10.53 | 15.49 | -5.79 | 126.97 | 0.1247 | -1240.9 | -699.3 | |
| 18.55 | -68.00 | 9.29 | -68.00 | -12.43 | 15.42 | -5.86 | 137.18 | 0.1474 | -1096.2 | 999999 | |
| 5.36 | -68.00 | 2.68 | -68.00 | -11.97 | 15.37 | -5.91 | 134.71 | 0.1425 | -1158.9 | 999999 | |
| 2.64 | -68.00 | 1.32 | -68.00 | -12.15 | 15.21 | -6.07 | 134.86 | 0.1466 | -1015.7 | 999999 | |
| 1.76 | -68.00 | 0.88 | -68.00 | -11.43 | 15.20 | -6.09 | 131.01 | 0.1383 | -1039.7 | 999999 | |
| 2.02 | 5.36 | 1.01 | 2.68 | -10.95 | 15.18 | -6.10 | 128.14 | 0.1334 | -1173.1 | -928.7 | |
| 1.41 | -68.00 | 0.70 | -68.00 | -12.21 | 15.05 | -6.23 | 134.44 | 0.1492 | -953.2 | 999999 | |
| 0.44 | -68.00 | 0.22 | -68.00 | -11.46 | 14.95 | -6.33 | 130.05 | 0.1419 | -963.6 | 999999 | |
| 0.00 | 1.93 | 0.00 | 0.97 | -10.40 | 14.45 | -6.83 | 121.81 | 0.1383 | -917.0 | -693.7 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.04 | 14.30 | -6.98 | 112.20 | 0.1303 | -845.0 | -654.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.96 | 13.76 | -7.52 | 122.70 | 0.1534 | -847.0 | -622.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
