SDO HMI 2014-04-05 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.18 | 445.02 | 42.34 | 235.21 | 12.54 | 13.69 | -7.59 | 21.83 | 0.3481 | -1112.0 | -374.6 | |
|
previous
or next observation for the same group /

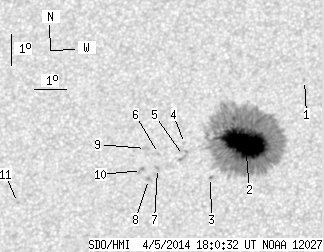

back to the solar disc SDO HMI 2014-04-05 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.61 | 14.54 | 15.59 | -5.70 | 15.14 | 0.3693 | 636.0 | 591.8 | |
| 80.18 | 424.36 | 42.34 | 224.25 | 12.56 | 13.81 | -7.47 | 21.52 | 0.3476 | -1461.4 | -412.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 11.50 | 12.75 | -8.53 | 25.53 | 0.3386 | -732.0 | -642.9 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 12.59 | 11.91 | -9.37 | 26.26 | 0.3606 | -351.0 | -401.2 | |
| 0.00 | 5.19 | 0.00 | 2.75 | 12.21 | 11.89 | -9.39 | 26.79 | 0.3552 | -619.0 | -552.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 12.29 | 11.11 | -10.17 | 28.57 | 0.3623 | 763.0 | 615.8 | |
| 0.00 | 2.20 | 0.00 | 1.16 | 11.82 | 11.10 | -10.18 | 29.25 | 0.3556 | 837.0 | 634.6 | |
| 0.00 | 2.46 | 0.00 | 1.30 | 11.48 | 10.83 | -10.45 | 30.38 | 0.3530 | 879.0 | 720.3 | |
| 0.00 | 2.55 | 0.00 | 1.36 | 12.46 | 10.70 | -10.58 | 29.31 | 0.3679 | 671.0 | 687.5 | |
| 0.00 | 2.90 | 0.00 | 1.54 | 11.76 | 10.60 | -10.68 | 30.50 | 0.3589 | 823.0 | 830.3 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 10.86 | 6.76 | -14.53 | 40.22 | 0.3831 | 770.0 | 562.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
