SDO HMI 2014-04-05 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.65 | 153.22 | 12.99 | 84.21 | 17.75 | 30.30 | 9.02 | 339.86 | 0.4351 | -295.0 | -362.3 | |
|
previous
or next observation for the same group /

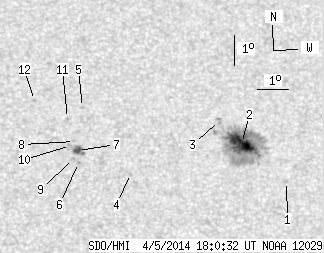

back to the solar disc SDO HMI 2014-04-05 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.82 | 16.54 | 32.22 | 10.94 | 334.77 | 0.4285 | -745.0 | -553.3 | |
| 20.13 | 132.05 | 11.08 | 72.65 | 17.76 | 30.85 | 9.57 | 338.69 | 0.4375 | -1244.8 | -474.3 | |
| 0.00 | 3.43 | 0.00 | 1.89 | 18.51 | 30.19 | 8.91 | 340.64 | 0.4449 | -548.0 | -544.5 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 16.73 | 27.29 | 6.01 | 345.60 | 0.4047 | 763.0 | 669.5 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 18.88 | 25.84 | 4.55 | 349.97 | 0.4333 | 713.0 | 475.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 17.07 | 25.66 | 4.38 | 349.56 | 0.4045 | 929.0 | 816.0 | |
| 3.52 | 7.12 | 1.91 | 3.87 | 17.46 | 25.64 | 4.36 | 349.79 | 0.4106 | 1088.7 | 815.7 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 17.76 | 25.55 | 4.27 | 350.12 | 0.4150 | 592.0 | 553.3 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 17.20 | 25.51 | 4.23 | 349.97 | 0.4061 | 901.0 | 725.1 | |
| 0.00 | 1.58 | 0.00 | 0.86 | 17.63 | 25.42 | 4.14 | 350.35 | 0.4125 | 836.0 | 739.6 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 18.51 | 25.35 | 4.07 | 350.88 | 0.4263 | 791.0 | 652.2 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 19.10 | 24.32 | 3.03 | 353.34 | 0.4333 | 698.0 | 594.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
