SDO HMI 2014-04-05 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.76 | 0.00 | 9.04 | 4.99 | 24.66 | 4.48 | 337.93 | 0.2254 | -198.5 | -192.5 | |
|
previous
or next observation for the same group /

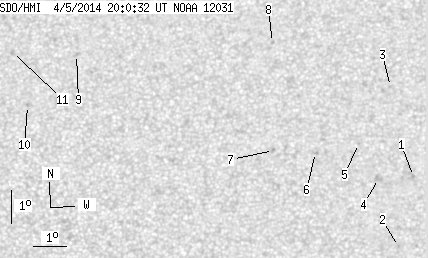

back to the solar disc SDO HMI 2014-04-05 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.72 | 3.54 | 29.13 | 8.96 | 317.46 | 0.2309 | -893.0 | -719.4 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 1.41 | 28.66 | 8.48 | 311.98 | 0.1993 | -870.0 | -756.6 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 6.29 | 28.47 | 8.30 | 326.47 | 0.2608 | -675.0 | -586.4 | |
| 0.00 | 4.57 | 0.00 | 2.32 | 3.47 | 28.07 | 7.89 | 320.84 | 0.2181 | -805.0 | -621.7 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 4.53 | 27.47 | 7.30 | 325.84 | 0.2266 | -622.0 | -599.8 | |
| 0.00 | 1.76 | 0.00 | 0.89 | 4.24 | 26.17 | 5.99 | 330.22 | 0.2106 | -837.0 | -666.7 | |
| 0.00 | 1.67 | 0.00 | 0.84 | 4.29 | 24.90 | 4.73 | 335.83 | 0.2015 | -845.0 | -672.7 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 7.60 | 24.90 | 4.73 | 341.17 | 0.2542 | 957.0 | 702.9 | |
| 0.00 | 2.20 | 0.00 | 1.12 | 7.22 | 18.97 | -1.20 | 5.11 | 0.2354 | 821.0 | 647.8 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 5.66 | 17.50 | -2.68 | 12.68 | 0.2129 | 817.0 | 624.3 | |
| 0.00 | 1.93 | 0.00 | 0.99 | 7.29 | 17.04 | -3.14 | 13.05 | 0.2418 | 768.0 | 640.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
