SDO HMI 2014-04-05 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.02 | 122.74 | 14.38 | 67.77 | 17.72 | 30.27 | 10.65 | 336.60 | 0.4440 | -470.5 | -345.7 | |
|
previous
or next observation for the same group /

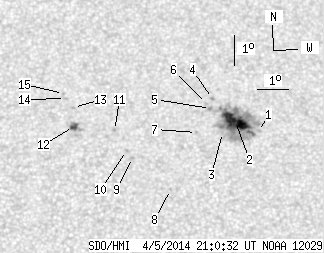

back to the solar disc SDO HMI 2014-04-05 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.07 | 17.45 | 31.58 | 11.95 | 333.72 | 0.4482 | -182.0 | -210.6 | |
| 23.12 | 99.53 | 12.80 | 55.07 | 17.76 | 30.86 | 11.24 | 335.41 | 0.4477 | -1150.3 | -475.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 17.39 | 30.42 | 10.80 | 335.90 | 0.4396 | -535.0 | -503.9 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 18.50 | 30.17 | 10.54 | 337.43 | 0.4540 | -726.0 | -582.5 | |
| 0.00 | 1.67 | 0.00 | 0.92 | 18.17 | 30.08 | 10.46 | 337.30 | 0.4487 | -901.0 | -709.5 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 18.33 | 29.96 | 10.34 | 337.67 | 0.4504 | -631.0 | -525.3 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 17.37 | 29.59 | 9.96 | 337.55 | 0.4343 | -588.0 | -499.4 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 15.50 | 28.67 | 9.04 | 337.73 | 0.4014 | -592.0 | -433.6 | |
| 0.00 | 1.58 | 0.00 | 0.86 | 16.52 | 27.51 | 7.89 | 341.20 | 0.4101 | 771.0 | 537.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 16.75 | 27.33 | 7.71 | 341.78 | 0.4126 | 761.0 | 629.0 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 17.40 | 26.98 | 7.36 | 343.04 | 0.4208 | 716.0 | 559.6 | |
| 2.90 | 7.47 | 1.58 | 4.07 | 17.51 | 25.69 | 6.06 | 345.96 | 0.4170 | 1017.3 | 741.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 18.14 | 25.71 | 6.09 | 346.28 | 0.4267 | 707.0 | 499.3 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 18.43 | 25.47 | 5.84 | 346.98 | 0.4304 | 693.0 | 565.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 18.60 | 25.41 | 5.79 | 347.19 | 0.4327 | 742.0 | 599.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
