SDO HMI 2014-04-05 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.21 | 580.64 | 62.49 | 289.62 | -11.30 | 18.32 | -0.76 | 173.13 | 0.1150 | -14.3 | -183.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

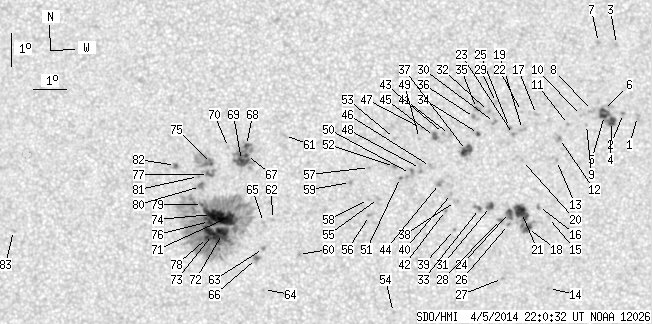

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.08 | 0.00 | 1.55 | -8.76 | 28.44 | 9.37 | 254.49 | 0.1677 | 742.0 | 666.2 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -8.67 | 28.01 | 8.94 | 254.34 | 0.1602 | 1017.0 | 791.1 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -6.61 | 27.75 | 8.68 | 267.34 | 0.1508 | 661.0 | 572.7 | |
| 4.48 | 21.19 | 2.25 | 10.62 | -8.92 | 27.65 | 8.57 | 252.22 | 0.1554 | 977.2 | 745.7 | |
| 3.87 | -4.00 | 1.94 | -4.00 | -8.74 | 27.43 | 8.36 | 252.93 | 0.1509 | 1163.0 | 999999 | |
| 2.20 | -4.00 | 1.10 | -4.00 | -8.59 | 27.39 | 8.32 | 253.84 | 0.1497 | 1086.0 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -6.56 | 27.20 | 8.13 | 267.60 | 0.1413 | 822.0 | 579.8 | |
| 0.00 | 2.81 | 0.00 | 1.41 | -8.60 | 27.06 | 7.99 | 253.20 | 0.1441 | 686.0 | 755.0 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -9.02 | 26.88 | 7.81 | 250.02 | 0.1435 | 561.0 | 478.1 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -8.75 | 26.72 | 7.65 | 251.48 | 0.1394 | 944.0 | 705.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -9.03 | 26.33 | 7.26 | 248.65 | 0.1346 | 969.0 | 782.8 | |
| 0.00 | 3.43 | 0.00 | 1.71 | -9.45 | 26.06 | 6.99 | 244.96 | 0.1331 | 981.0 | 772.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.11 | 25.98 | 6.91 | 240.29 | 0.1371 | 874.0 | 761.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -13.97 | 25.83 | 6.76 | 220.32 | 0.1773 | 803.0 | 618.9 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.83 | 25.78 | 6.70 | 229.55 | 0.1509 | 616.0 | 573.9 | |
| 0.00 | 2.11 | 0.00 | 1.06 | -11.50 | 25.46 | 6.39 | 229.95 | 0.1431 | 982.0 | 816.5 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -8.74 | 25.35 | 6.28 | 248.06 | 0.1170 | 874.0 | 674.0 | |
| 3.69 | 38.78 | 1.85 | 19.40 | -12.17 | 25.14 | 6.06 | 225.03 | 0.1467 | 973.4 | 780.5 | |
| 0.00 | 2.73 | 0.00 | 1.36 | -9.19 | 24.93 | 5.86 | 242.98 | 0.1136 | 826.0 | 708.4 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -10.12 | 24.94 | 5.87 | 236.13 | 0.1218 | 867.0 | 735.4 | |
| 12.31 | -18.00 | 6.16 | -18.00 | -11.69 | 24.94 | 5.87 | 226.57 | 0.1385 | 1133.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.65 | 24.89 | 5.82 | 247.29 | 0.1091 | 815.0 | 595.2 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -9.35 | 24.65 | 5.58 | 240.66 | 0.1107 | 1099.0 | 883.9 | |
| 2.46 | -18.00 | 1.23 | -18.00 | -11.69 | 24.57 | 5.50 | 224.72 | 0.1340 | 1137.8 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -9.14 | 24.53 | 5.46 | 241.82 | 0.1070 | 1118.0 | 884.7 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -12.05 | 24.55 | 5.48 | 222.72 | 0.1382 | 796.0 | 651.9 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -13.68 | 24.40 | 5.32 | 214.89 | 0.1584 | 843.0 | 656.6 | |
| 0.53 | 2.55 | 0.26 | 1.27 | -11.90 | 24.30 | 5.23 | 222.17 | 0.1334 | 1016.8 | 763.7 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -8.39 | 24.12 | 5.05 | 246.87 | 0.0952 | 643.0 | 600.8 | |
| 0.00 | 2.64 | 0.00 | 1.31 | -8.99 | 24.07 | 5.00 | 241.01 | 0.0989 | 996.0 | 807.4 | |
| 2.37 | 5.54 | 1.19 | 2.77 | -11.52 | 23.98 | 4.91 | 222.49 | 0.1248 | 1114.2 | 782.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -8.66 | 23.88 | 4.81 | 243.18 | 0.0934 | 1020.0 | 841.3 | |
| 0.53 | 3.34 | 0.26 | 1.67 | -11.58 | 23.65 | 4.58 | 220.15 | 0.1218 | 1044.7 | 746.7 | |
| 0.88 | 1.93 | 0.44 | 0.96 | -9.32 | 23.59 | 4.52 | 235.49 | 0.0947 | 970.5 | 798.1 | |
| 0.44 | 1.58 | 0.22 | 0.79 | -8.57 | 23.52 | 4.45 | 242.24 | 0.0870 | 1143.2 | 934.2 | |
| 0.00 | 2.99 | 0.00 | 1.49 | -8.85 | 23.46 | 4.39 | 239.21 | 0.0884 | 1087.0 | 856.7 | |
| 6.33 | 11.61 | 3.15 | 5.78 | -9.84 | 23.23 | 4.16 | 228.89 | 0.0952 | 1148.2 | 728.6 | |
| 0.00 | 2.90 | 0.00 | 1.45 | -11.37 | 22.91 | 3.84 | 216.40 | 0.1111 | 640.0 | 612.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -12.22 | 22.89 | 3.82 | 212.13 | 0.1229 | 778.0 | 645.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.13 | 22.78 | 3.71 | 216.84 | 0.1065 | 917.0 | 714.1 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -9.36 | 22.70 | 3.63 | 229.22 | 0.0830 | 714.0 | 734.1 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.65 | 22.61 | 3.53 | 212.80 | 0.1120 | -619.0 | -517.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.33 | 22.52 | 3.45 | 228.03 | 0.0802 | 911.0 | 744.0 | |
| 0.00 | 4.31 | 0.00 | 2.14 | -10.83 | 22.41 | 3.34 | 215.74 | 0.0985 | 1086.0 | 861.3 | |
| 1.85 | 3.87 | 0.92 | 1.92 | -9.42 | 22.25 | 3.18 | 224.85 | 0.0779 | 1117.7 | 880.0 | |
| 0.00 | 2.37 | 0.00 | 1.18 | -10.32 | 22.13 | 3.06 | 216.64 | 0.0885 | 788.0 | 658.2 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -9.18 | 21.85 | 2.78 | 223.32 | 0.0701 | 921.0 | 741.8 | |
| 0.00 | 2.73 | 0.00 | 1.36 | -10.39 | 21.83 | 2.76 | 213.43 | 0.0863 | 906.0 | 792.8 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -9.48 | 21.79 | 2.72 | 219.90 | 0.0733 | 828.0 | 607.0 | |
| 0.00 | 4.92 | 0.00 | 2.45 | -10.54 | 21.52 | 2.45 | 209.53 | 0.0858 | 443.0 | 757.0 | |
| 0.35 | 1.14 | 0.17 | 0.57 | -10.66 | 21.22 | 2.15 | 205.76 | 0.0852 | 780.5 | 573.9 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -10.33 | 21.04 | 1.96 | 205.52 | 0.0786 | 1083.0 | 888.0 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.49 | 21.03 | 1.96 | 211.08 | 0.0657 | 913.0 | 662.4 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -14.73 | 21.03 | 1.96 | 192.69 | 0.1514 | 805.0 | 617.1 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -11.29 | 20.55 | 1.48 | 196.17 | 0.0914 | -803.0 | -621.5 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -11.80 | 20.28 | 1.21 | 192.09 | 0.0989 | -969.0 | -789.0 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.36 | 20.27 | 1.20 | 196.19 | 0.0744 | 772.0 | 628.2 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -11.32 | 20.25 | 1.17 | 192.89 | 0.0906 | -708.0 | -587.2 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -10.81 | 19.70 | 0.62 | 187.72 | 0.0801 | 867.0 | 657.4 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -12.98 | 18.10 | -0.97 | 171.92 | 0.1183 | -863.0 | -626.6 | |
| 0.00 | 2.99 | 0.00 | 1.48 | -9.39 | 17.69 | -1.38 | 156.35 | 0.0596 | -875.0 | -654.3 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.92 | 17.31 | -1.76 | 162.96 | 0.1033 | -754.0 | -638.9 | |
| 0.00 | 2.02 | 0.00 | 1.01 | -12.79 | 17.02 | -2.05 | 162.92 | 0.1192 | -965.0 | -766.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -14.03 | 17.01 | -2.06 | 165.50 | 0.1400 | -768.0 | -655.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.01 | 17.03 | -2.04 | 160.77 | 0.1063 | -831.0 | -612.3 | |
| 0.70 | 4.48 | 0.35 | 2.24 | -13.09 | 16.80 | -2.27 | 162.02 | 0.1254 | -1112.6 | -824.0 | |
| 1.32 | 36.05 | 0.66 | 17.92 | -9.99 | 16.53 | -2.54 | 146.01 | 0.0785 | -1234.9 | -809.0 | |
| 1.58 | -67.00 | 0.79 | -67.00 | -9.69 | 16.53 | -2.54 | 143.74 | 0.0742 | -972.9 | 999999 | |
| 8.09 | -67.00 | 4.02 | -67.00 | -10.14 | 16.37 | -2.70 | 145.51 | 0.0822 | -1167.5 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.75 | 15.98 | -3.09 | 138.77 | 0.0809 | -653.0 | -450.6 | |
| 21.98 | 318.16 | 10.96 | 158.71 | -11.88 | 15.87 | -3.21 | 150.76 | 0.1125 | -1330.2 | -478.2 | |
| 11.78 | -71.00 | 5.88 | -71.00 | -12.33 | 15.77 | -3.30 | 151.93 | 0.1202 | -1187.8 | 999999 | |
| 14.51 | -71.00 | 7.24 | -71.00 | -12.36 | 15.46 | -3.61 | 149.89 | 0.1232 | -1135.6 | 999999 | |
| 11.34 | -71.00 | 5.66 | -71.00 | -11.76 | 15.44 | -3.63 | 147.03 | 0.1145 | -1271.2 | 999999 | |
| 0.62 | 20.14 | 0.31 | 10.02 | -10.22 | 15.46 | -3.61 | 138.04 | 0.0932 | -1223.0 | -621.0 | |
| 5.28 | -71.00 | 2.63 | -71.00 | -11.97 | 15.37 | -3.70 | 147.57 | 0.1182 | -1167.7 | 999999 | |
| 1.32 | 6.86 | 0.66 | 3.41 | -10.55 | 15.36 | -3.71 | 139.60 | 0.0986 | -1264.7 | -932.9 | |
| 2.99 | -71.00 | 1.49 | -71.00 | -12.45 | 15.30 | -3.77 | 149.21 | 0.1259 | -1043.5 | 999999 | |
| 0.79 | -71.00 | 0.39 | -71.00 | -11.45 | 15.17 | -3.90 | 143.56 | 0.1129 | -1049.4 | 999999 | |
| 0.00 | 4.84 | 0.00 | 2.41 | -10.91 | 15.11 | -3.96 | 140.07 | 0.1061 | -1279.0 | -940.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.61 | 15.06 | -4.01 | 137.74 | 0.1028 | -921.0 | -703.8 | |
| 0.62 | 2.90 | 0.31 | 1.45 | -10.27 | 14.36 | -4.71 | 130.88 | 0.1074 | -1071.9 | -819.0 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -12.15 | 9.32 | -9.76 | 122.09 | 0.1964 | 769.0 | 557.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
