SDO HMI 2014-04-05 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 113.73 | 554.39 | 56.73 | 276.39 | -11.36 | 18.16 | -0.36 | 175.62 | 0.1135 | -93.1 | -205.5 | |
|
previous
or next observation for the same group /

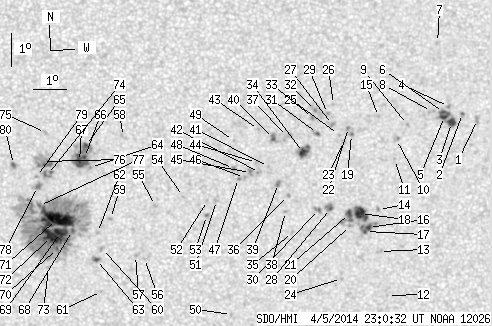

back to the solar disc SDO HMI 2014-04-05 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.73 | 0.00 | 1.37 | -8.81 | 28.50 | 9.99 | 255.06 | 0.1782 | 871.0 | 763.7 | |
| 0.35 | 1.85 | 0.18 | 0.93 | -8.63 | 28.04 | 9.52 | 255.40 | 0.1697 | 855.5 | 701.4 | |
| 4.40 | 17.77 | 2.21 | 8.92 | -8.91 | 27.71 | 9.19 | 253.32 | 0.1654 | 953.1 | 765.0 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -8.43 | 27.60 | 9.09 | 256.01 | 0.1617 | 885.0 | 669.9 | |
| 3.78 | -3.00 | 1.90 | -3.00 | -8.73 | 27.49 | 8.97 | 254.02 | 0.1610 | 1119.7 | 999999 | |
| 1.58 | -3.00 | 0.79 | -3.00 | -8.61 | 27.45 | 8.94 | 254.69 | 0.1600 | 1124.4 | 999999 | |
| 0.00 | 2.02 | 0.00 | 1.01 | -6.52 | 27.23 | 8.71 | 267.94 | 0.1513 | 673.0 | 566.3 | |
| 0.00 | 2.81 | 0.00 | 1.41 | -8.59 | 27.09 | 8.57 | 254.26 | 0.1537 | 805.0 | 773.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -8.99 | 26.36 | 7.84 | 250.28 | 0.1438 | 950.0 | 748.1 | |
| 0.00 | 2.55 | 0.00 | 1.28 | -9.44 | 26.03 | 7.51 | 246.48 | 0.1413 | 733.0 | 820.0 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.05 | 25.98 | 7.46 | 242.49 | 0.1449 | 834.0 | 655.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -14.15 | 25.88 | 7.36 | 222.03 | 0.1863 | 707.0 | 495.5 | |
| 0.00 | 2.37 | 0.00 | 1.19 | -12.82 | 25.59 | 7.07 | 226.29 | 0.1668 | 647.0 | 622.4 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -11.56 | 25.52 | 7.01 | 232.18 | 0.1520 | 882.0 | 751.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.76 | 25.47 | 6.95 | 249.76 | 0.1280 | 958.0 | 783.8 | |
| 2.29 | 11.35 | 1.15 | 5.69 | -12.10 | 25.23 | 6.71 | 228.20 | 0.1540 | 962.5 | 740.4 | |
| 0.70 | -16.00 | 0.35 | -16.00 | -12.22 | 25.14 | 6.62 | 227.23 | 0.1542 | 841.5 | 999999 | |
| 10.91 | 14.16 | 5.46 | 7.09 | -11.68 | 24.97 | 6.45 | 229.26 | 0.1460 | 1138.9 | 836.1 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -9.31 | 24.65 | 6.13 | 243.10 | 0.1188 | 1091.0 | 954.9 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -12.05 | 24.67 | 6.15 | 226.04 | 0.1463 | 851.0 | 643.6 | |
| 2.55 | 8.71 | 1.28 | 4.36 | -11.69 | 24.63 | 6.12 | 227.73 | 0.1416 | 1114.3 | 823.8 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.10 | 24.56 | 6.04 | 244.37 | 0.1157 | 1045.0 | 922.7 | |
| 0.00 | 2.02 | 0.00 | 1.01 | -9.52 | 24.41 | 5.89 | 240.55 | 0.1168 | 865.0 | 722.3 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -13.65 | 24.43 | 5.91 | 217.85 | 0.1639 | 817.0 | 567.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.31 | 24.25 | 5.74 | 241.53 | 0.1127 | 694.0 | 539.7 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -8.42 | 24.09 | 5.57 | 248.52 | 0.1037 | 843.0 | 652.1 | |
| 0.00 | 2.02 | 0.00 | 1.01 | -9.02 | 24.07 | 5.55 | 243.19 | 0.1075 | 1117.0 | 830.2 | |
| 0.70 | 4.75 | 0.35 | 2.37 | -11.54 | 24.05 | 5.53 | 225.67 | 0.1326 | 1132.6 | 924.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -8.69 | 23.91 | 5.39 | 245.42 | 0.1026 | 999.0 | 889.0 | |
| 0.35 | 3.69 | 0.18 | 1.84 | -11.57 | 23.68 | 5.16 | 223.54 | 0.1285 | 1058.5 | 714.7 | |
| 0.53 | 3.96 | 0.26 | 1.97 | -9.29 | 23.61 | 5.09 | 238.86 | 0.1029 | 983.7 | 777.2 | |
| 0.00 | 3.52 | 0.00 | 1.75 | -8.60 | 23.54 | 5.02 | 244.71 | 0.0962 | 1116.0 | 850.5 | |
| 0.00 | 2.64 | 0.00 | 1.31 | -8.81 | 23.45 | 4.94 | 242.34 | 0.0964 | 1051.0 | 778.2 | |
| 4.93 | 11.70 | 2.45 | 5.82 | -9.86 | 23.19 | 4.67 | 231.94 | 0.1025 | 1142.0 | 803.9 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -12.27 | 22.89 | 4.37 | 215.42 | 0.1291 | 881.0 | 578.9 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.16 | 22.75 | 4.23 | 220.31 | 0.1125 | 961.0 | 805.7 | |
| 0.00 | 4.49 | 0.00 | 2.23 | -9.39 | 22.70 | 4.18 | 232.85 | 0.0907 | 883.0 | 752.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.64 | 22.67 | 4.15 | 217.08 | 0.1180 | -742.0 | -600.1 | |
| 0.00 | 3.25 | 0.00 | 1.62 | -10.80 | 22.44 | 3.92 | 220.35 | 0.1043 | 1050.0 | 902.4 | |
| 1.06 | 5.54 | 0.52 | 2.75 | -9.45 | 22.27 | 3.76 | 229.32 | 0.0856 | 1152.6 | 867.2 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -10.29 | 22.13 | 3.61 | 221.45 | 0.0941 | 807.0 | 656.4 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -10.47 | 21.86 | 3.34 | 217.99 | 0.0935 | 925.0 | 732.0 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -9.18 | 21.82 | 3.30 | 228.16 | 0.0765 | 842.0 | 573.5 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -10.17 | 21.76 | 3.24 | 219.29 | 0.0884 | 899.0 | 695.2 | |
| 0.00 | 2.81 | 0.00 | 1.40 | -10.47 | 21.58 | 3.06 | 215.63 | 0.0906 | 1055.0 | 854.8 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.63 | 21.40 | 2.88 | 213.06 | 0.0910 | 952.0 | 707.5 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.66 | 21.22 | 2.70 | 211.19 | 0.0898 | 810.0 | 687.4 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -10.36 | 21.06 | 2.54 | 211.51 | 0.0839 | 1077.0 | 904.0 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -9.52 | 21.06 | 2.54 | 217.68 | 0.0718 | 835.0 | 632.1 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -14.76 | 21.04 | 2.52 | 196.07 | 0.1543 | 836.0 | 580.3 | |
| 0.00 | 2.46 | 0.00 | 1.23 | -11.32 | 20.55 | 2.03 | 201.56 | 0.0950 | -731.0 | -521.2 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.32 | 20.27 | 1.76 | 198.86 | 0.0934 | -693.0 | -563.3 | |
| 0.00 | 1.93 | 0.00 | 0.96 | -11.77 | 20.25 | 1.73 | 197.12 | 0.1007 | -998.0 | -744.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -11.20 | 19.54 | 1.02 | 191.51 | 0.0880 | -734.0 | -577.0 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -11.47 | 18.68 | 0.17 | 181.79 | 0.0910 | -717.0 | -631.5 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -13.07 | 18.34 | -0.17 | 178.56 | 0.1188 | -560.0 | -502.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -12.98 | 18.07 | -0.45 | 176.24 | 0.1175 | -835.0 | -621.2 | |
| 0.00 | 2.29 | 0.00 | 1.13 | -9.40 | 17.71 | -0.81 | 165.69 | 0.0564 | -722.0 | -552.6 | |
| 0.00 | 1.50 | 0.00 | 0.74 | -11.86 | 17.31 | -1.21 | 167.97 | 0.0999 | -902.0 | -687.1 | |
| 0.00 | 2.55 | 0.00 | 1.27 | -12.76 | 17.05 | -1.46 | 167.56 | 0.1162 | -797.0 | -655.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -14.06 | 17.01 | -1.51 | 169.35 | 0.1385 | -826.0 | -626.7 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -12.28 | 16.90 | -1.62 | 165.25 | 0.1087 | -661.0 | -646.9 | |
| 1.23 | 3.34 | 0.61 | 1.67 | -13.10 | 16.87 | -1.65 | 166.69 | 0.1226 | -1026.9 | -854.5 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -10.32 | 16.70 | -1.81 | 156.18 | 0.0775 | -830.0 | -647.2 | |
| 1.67 | 36.06 | 0.83 | 17.91 | -9.66 | 16.56 | -1.96 | 150.25 | 0.0684 | -954.5 | -793.6 | |
| 1.41 | -65.00 | 0.70 | -65.00 | -10.02 | 16.52 | -2.00 | 152.31 | 0.0741 | -1217.3 | 999999 | |
| 6.77 | -65.00 | 3.36 | -65.00 | -10.14 | 16.37 | -2.15 | 151.31 | 0.0772 | -1195.2 | 999999 | |
| 0.97 | 312.05 | 0.48 | 155.59 | -12.22 | 16.14 | -2.38 | 158.58 | 0.1117 | -957.5 | -477.0 | |
| 9.32 | -68.00 | 4.65 | -68.00 | -12.27 | 15.77 | -2.75 | 155.85 | 0.1151 | -1236.9 | 999999 | |
| 0.88 | -68.00 | 0.44 | -68.00 | -12.76 | 15.67 | -2.85 | 156.77 | 0.1235 | -695.2 | 999999 | |
| 37.47 | -68.00 | 18.67 | -68.00 | -11.88 | 15.65 | -2.87 | 153.39 | 0.1099 | -1264.8 | 999999 | |
| 18.47 | -68.00 | 9.21 | -68.00 | -12.39 | 15.49 | -3.03 | 154.18 | 0.1190 | -1101.6 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -13.33 | 15.38 | -3.13 | 156.59 | 0.1345 | -661.0 | -512.6 | |
| 0.00 | 5.19 | 0.00 | 2.58 | -10.53 | 15.39 | -3.13 | 144.13 | 0.0920 | -971.0 | -1013.4 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -9.26 | 15.34 | -3.18 | 133.70 | 0.0760 | -831.0 | -645.2 | |
| 0.00 | 17.06 | 0.00 | 8.48 | -10.13 | 15.24 | -3.28 | 140.15 | 0.0882 | -750.0 | -667.6 | |
| 0.62 | -68.00 | 0.31 | -68.00 | -11.46 | 15.13 | -3.38 | 147.39 | 0.1079 | -1058.9 | 999999 | |
| 0.00 | 5.36 | 0.00 | 2.67 | -10.89 | 15.08 | -3.44 | 143.81 | 0.1002 | -1022.0 | -886.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.58 | 15.05 | -3.47 | 141.71 | 0.0963 | -937.0 | -718.2 | |
| 0.79 | 2.46 | 0.39 | 1.23 | -10.22 | 14.36 | -4.16 | 133.99 | 0.0998 | -1073.0 | -906.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
