SDO HMI 2014-04-06 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.68 | 567.30 | 59.72 | 282.95 | -11.34 | 18.36 | 0.39 | 181.55 | 0.1146 | -132.9 | -158.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

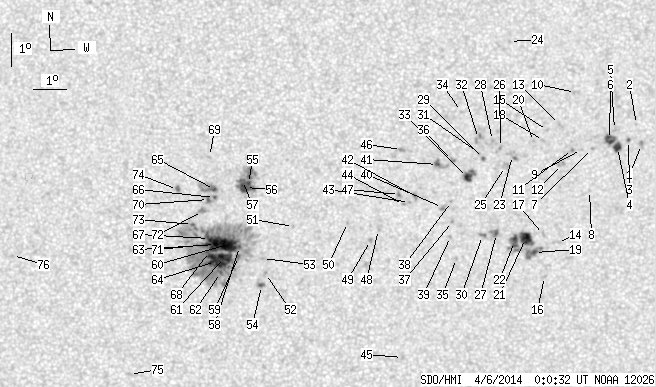

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.52 | 0.00 | 1.77 | -8.79 | 28.51 | 10.54 | 255.80 | 0.1873 | 917.0 | 717.0 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -8.20 | 28.34 | 10.37 | 258.80 | 0.1824 | 663.0 | 394.8 | |
| 0.44 | 1.23 | 0.22 | 0.62 | -8.68 | 28.10 | 10.14 | 255.91 | 0.1802 | 810.6 | 713.4 | |
| 4.66 | 15.22 | 2.35 | 7.65 | -8.90 | 27.77 | 9.80 | 254.29 | 0.1755 | 931.3 | 757.9 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -8.36 | 27.66 | 9.70 | 257.19 | 0.1717 | 672.0 | 692.1 | |
| 5.45 | -4.00 | 2.74 | -4.00 | -8.66 | 27.52 | 9.55 | 255.27 | 0.1704 | 1123.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -8.94 | 27.00 | 9.03 | 252.87 | 0.1631 | 680.0 | 509.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -10.20 | 26.94 | 8.97 | 245.55 | 0.1694 | 625.0 | 446.6 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -8.97 | 26.66 | 8.70 | 252.07 | 0.1577 | 785.0 | 570.0 | |
| 0.00 | 3.08 | 0.00 | 1.54 | -7.27 | 26.45 | 8.48 | 262.79 | 0.1481 | 472.0 | 401.1 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -8.98 | 26.39 | 8.42 | 251.53 | 0.1532 | 1079.0 | 843.3 | |
| 0.00 | 3.61 | 0.00 | 1.81 | -9.43 | 26.06 | 8.09 | 247.98 | 0.1505 | 599.0 | 700.6 | |
| 0.00 | 0.53 | 0.00 | 0.26 | -8.23 | 25.97 | 8.01 | 255.66 | 0.1429 | 706.0 | 592.3 | |
| 0.00 | 3.52 | 0.00 | 1.77 | -11.78 | 26.00 | 8.03 | 234.66 | 0.1684 | 491.0 | 391.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -8.42 | 25.61 | 7.64 | 253.75 | 0.1377 | 733.0 | 533.2 | |
| 0.00 | 1.94 | 0.00 | 0.97 | -12.81 | 25.62 | 7.66 | 228.54 | 0.1741 | 729.0 | 626.0 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -11.55 | 25.56 | 7.59 | 234.36 | 0.1600 | 915.0 | 657.8 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -8.72 | 25.49 | 7.53 | 251.39 | 0.1372 | 793.0 | 646.3 | |
| 2.02 | 49.44 | 1.02 | 24.79 | -12.09 | 25.29 | 7.33 | 230.66 | 0.1620 | 1004.7 | 736.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.76 | 25.19 | 7.22 | 250.45 | 0.1324 | 870.0 | 710.8 | |
| 9.59 | -19.00 | 4.81 | -19.00 | -11.67 | 25.01 | 7.04 | 231.67 | 0.1537 | 1161.8 | 999999 | |
| 4.93 | -19.00 | 2.47 | -19.00 | -11.77 | 24.67 | 6.70 | 229.83 | 0.1502 | 1076.8 | 999999 | |
| 0.00 | 5.89 | 0.00 | 2.94 | -9.18 | 24.55 | 6.59 | 245.58 | 0.1249 | 673.0 | 791.0 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -5.77 | 24.42 | 6.45 | 274.21 | 0.1126 | 694.0 | 542.9 | |
| 0.00 | 5.28 | 0.00 | 2.63 | -9.52 | 24.35 | 6.38 | 242.45 | 0.1242 | 639.0 | 653.9 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -8.95 | 24.18 | 6.22 | 246.18 | 0.1175 | 947.0 | 773.5 | |
| 1.06 | 5.81 | 0.53 | 2.90 | -11.53 | 24.11 | 6.14 | 228.66 | 0.1403 | 1078.2 | 834.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -8.74 | 23.94 | 5.97 | 247.03 | 0.1122 | 929.0 | 864.3 | |
| 0.53 | 2.02 | 0.26 | 1.01 | -9.28 | 23.67 | 5.70 | 241.62 | 0.1120 | 1021.7 | 802.1 | |
| 0.00 | 3.17 | 0.00 | 1.58 | -11.60 | 23.68 | 5.71 | 226.27 | 0.1355 | 878.0 | 785.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.13 | 23.55 | 5.58 | 242.32 | 0.1089 | 857.0 | 680.8 | |
| 0.00 | 4.57 | 0.00 | 2.28 | -8.68 | 23.51 | 5.54 | 246.00 | 0.1050 | 823.0 | 865.2 | |
| 4.49 | 9.68 | 2.24 | 4.82 | -9.86 | 23.19 | 5.22 | 234.95 | 0.1100 | 1119.3 | 839.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -7.88 | 22.98 | 5.01 | 251.86 | 0.0915 | 740.0 | 565.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -12.30 | 22.89 | 4.92 | 218.54 | 0.1352 | 829.0 | 637.9 | |
| 0.00 | 2.38 | 0.00 | 1.18 | -9.35 | 22.72 | 4.76 | 236.58 | 0.0985 | 999.0 | 845.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.18 | 22.75 | 4.78 | 223.59 | 0.1192 | 835.0 | 717.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.58 | 22.71 | 4.74 | 227.13 | 0.1114 | 868.0 | 699.9 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.64 | 22.70 | 4.73 | 220.73 | 0.1243 | -647.0 | -470.2 | |
| 0.00 | 3.25 | 0.00 | 1.62 | -10.76 | 22.44 | 4.47 | 224.26 | 0.1102 | 1082.0 | 845.6 | |
| 1.32 | 7.83 | 0.66 | 3.90 | -9.47 | 22.27 | 4.30 | 232.84 | 0.0933 | 1151.1 | 791.8 | |
| 0.00 | 3.08 | 0.00 | 1.53 | -10.44 | 21.61 | 3.64 | 220.62 | 0.0964 | 1137.0 | 804.5 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -10.62 | 21.43 | 3.46 | 217.99 | 0.0968 | 863.0 | 737.4 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -10.68 | 21.24 | 3.28 | 216.12 | 0.0957 | 861.0 | 680.6 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -15.30 | 21.27 | 3.30 | 199.48 | 0.1674 | 654.0 | 556.2 | |
| 0.00 | 3.25 | 0.00 | 1.62 | -9.03 | 21.17 | 3.20 | 228.85 | 0.0736 | 810.0 | 704.3 | |
| 0.00 | 2.55 | 0.00 | 1.27 | -10.38 | 21.12 | 3.15 | 217.01 | 0.0903 | 1005.0 | 805.9 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -11.44 | 20.49 | 2.52 | 205.56 | 0.1003 | -664.0 | -554.3 | |
| 0.00 | 1.94 | 0.00 | 0.96 | -11.77 | 20.24 | 2.28 | 202.09 | 0.1039 | -1104.0 | -781.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -11.23 | 19.54 | 1.57 | 197.27 | 0.0909 | -761.0 | -586.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.35 | 17.89 | -0.08 | 179.09 | 0.0889 | -767.0 | -604.7 | |
| 0.00 | 2.20 | 0.00 | 1.10 | -12.76 | 17.02 | -0.94 | 171.90 | 0.1147 | -832.0 | -701.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.31 | 16.93 | -1.03 | 170.48 | 0.1071 | -895.0 | -745.2 | |
| 0.97 | 2.90 | 0.48 | 1.45 | -13.13 | 16.90 | -1.07 | 171.33 | 0.1212 | -988.2 | -854.3 | |
| 2.38 | 37.91 | 1.18 | 18.83 | -10.05 | 16.52 | -1.45 | 159.29 | 0.0708 | -1176.0 | -748.1 | |
| 8.09 | -55.00 | 4.02 | -55.00 | -10.17 | 16.43 | -1.54 | 158.71 | 0.0733 | -1160.1 | 999999 | |
| 1.41 | -55.00 | 0.70 | -55.00 | -9.96 | 16.33 | -1.63 | 156.44 | 0.0705 | -974.9 | 999999 | |
| 1.50 | 315.35 | 0.74 | 157.16 | -11.95 | 16.23 | -1.74 | 163.30 | 0.1037 | -967.9 | -472.8 | |
| 0.62 | -58.00 | 0.31 | -58.00 | -12.25 | 16.20 | -1.77 | 163.82 | 0.1089 | -930.4 | 999999 | |
| 19.18 | -58.00 | 9.55 | -58.00 | -11.88 | 15.86 | -2.11 | 159.82 | 0.1047 | -1335.4 | 999999 | |
| 10.56 | -58.00 | 5.26 | -58.00 | -12.28 | 15.77 | -2.20 | 160.27 | 0.1116 | -1205.4 | 999999 | |
| 0.97 | -58.00 | 0.48 | -58.00 | -12.73 | 15.64 | -2.33 | 160.59 | 0.1198 | -782.9 | 999999 | |
| 10.03 | -58.00 | 5.00 | -58.00 | -11.88 | 15.49 | -2.47 | 156.65 | 0.1070 | -1324.6 | 999999 | |
| 15.48 | -58.00 | 7.72 | -58.00 | -12.40 | 15.49 | -2.48 | 158.40 | 0.1153 | -1104.6 | 999999 | |
| 1.32 | 14.43 | 0.66 | 7.17 | -10.23 | 15.48 | -2.49 | 148.25 | 0.0815 | -1150.1 | -685.5 | |
| 0.53 | 6.51 | 0.26 | 3.24 | -10.47 | 15.48 | -2.49 | 149.74 | 0.0852 | -1008.8 | -893.9 | |
| 4.75 | -58.00 | 2.37 | -58.00 | -11.70 | 15.31 | -2.66 | 154.40 | 0.1055 | -1144.3 | 999999 | |
| 2.20 | -58.00 | 1.10 | -58.00 | -12.09 | 15.31 | -2.66 | 155.91 | 0.1117 | -1070.2 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.74 | -9.24 | 15.34 | -2.63 | 138.80 | 0.0691 | -783.0 | -613.9 | |
| 0.88 | -66.00 | 0.44 | -66.00 | -10.53 | 15.29 | -2.67 | 148.30 | 0.0877 | -1204.0 | 999999 | |
| 3.17 | -58.00 | 1.58 | -58.00 | -11.88 | 15.25 | -2.72 | 154.61 | 0.1088 | -994.4 | 999999 | |
| 0.00 | 5.89 | 0.00 | 2.93 | -10.89 | 15.11 | -2.86 | 148.68 | 0.0947 | -1175.0 | -870.4 | |
| 0.53 | -58.00 | 0.26 | -58.00 | -11.28 | 14.80 | -3.17 | 148.15 | 0.1033 | -957.2 | 999999 | |
| 0.62 | 2.81 | 0.31 | 1.40 | -10.22 | 14.35 | -3.62 | 138.02 | 0.0932 | -1075.6 | -898.0 | |
| 0.00 | 2.29 | 0.00 | 1.15 | -15.79 | 12.76 | -5.21 | 152.22 | 0.1882 | -795.0 | -660.5 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -12.14 | 9.23 | -8.73 | 124.86 | 0.1818 | 909.0 | 679.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
