SDO HMI 2014-04-06 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.92 | 520.06 | 55.85 | 259.42 | -11.23 | 18.44 | 1.02 | 186.49 | 0.1149 | -119.1 | -137.7 | |
|
previous
or next observation for the same group /

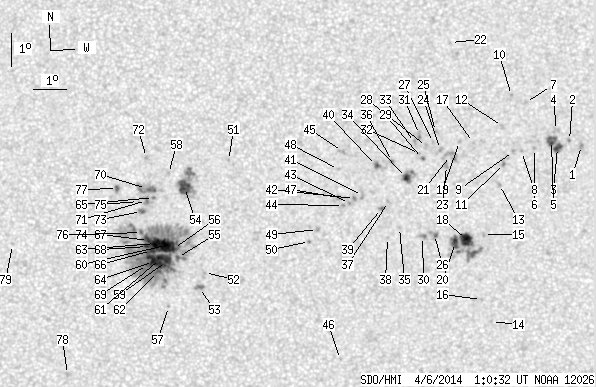

back to the solar disc SDO HMI 2014-04-06 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.82 | 0.00 | 1.42 | -8.78 | 28.54 | 11.13 | 256.51 | 0.1970 | 961.0 | 762.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -8.64 | 28.17 | 10.75 | 256.84 | 0.1903 | 814.0 | 696.2 | |
| 3.96 | 15.75 | 2.00 | 7.93 | -8.85 | 27.80 | 10.39 | 255.29 | 0.1850 | 944.5 | 794.5 | |
| 0.00 | 4.05 | 0.00 | 2.04 | -8.34 | 27.76 | 10.34 | 257.96 | 0.1825 | 604.0 | 583.8 | |
| 5.10 | -3.00 | 2.57 | -3.00 | -8.65 | 27.61 | 10.20 | 256.16 | 0.1811 | 1121.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -8.89 | 27.10 | 9.68 | 254.11 | 0.1735 | 592.0 | 421.2 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -7.52 | 26.79 | 9.37 | 261.82 | 0.1638 | 734.0 | 559.9 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -8.99 | 26.70 | 9.28 | 252.95 | 0.1674 | 740.0 | 573.9 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -9.00 | 26.45 | 9.04 | 252.52 | 0.1634 | 943.0 | 792.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -7.32 | 26.36 | 8.94 | 262.77 | 0.1561 | 786.0 | 657.0 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -9.36 | 26.18 | 8.77 | 249.87 | 0.1609 | 924.0 | 741.8 | |
| 0.00 | 2.02 | 0.00 | 1.01 | -8.25 | 26.10 | 8.68 | 256.54 | 0.1543 | 886.0 | 695.6 | |
| 0.00 | 2.20 | 0.00 | 1.10 | -9.99 | 26.05 | 8.63 | 245.90 | 0.1626 | 750.0 | 479.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -14.13 | 25.93 | 8.51 | 226.16 | 0.1999 | 642.0 | 460.5 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -11.50 | 25.59 | 8.18 | 236.50 | 0.1679 | 755.0 | 622.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -13.46 | 25.59 | 8.17 | 227.60 | 0.1881 | 765.0 | 532.7 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -8.74 | 25.22 | 7.80 | 251.80 | 0.1419 | 881.0 | 645.0 | |
| 11.44 | 42.49 | 5.74 | 21.33 | -11.66 | 25.07 | 7.66 | 233.98 | 0.1621 | 1101.0 | 754.0 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -8.72 | 24.79 | 7.37 | 251.04 | 0.1348 | 753.0 | 568.8 | |
| 5.10 | -18.00 | 2.56 | -18.00 | -11.76 | 24.73 | 7.32 | 232.29 | 0.1584 | 1047.3 | 999999 | |
| 0.00 | 10.12 | 0.00 | 5.06 | -9.14 | 24.52 | 7.11 | 247.38 | 0.1329 | 810.0 | 769.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -5.75 | 24.47 | 7.06 | 273.86 | 0.1231 | 641.0 | 513.7 | |
| 0.00 | 3.08 | 0.00 | 1.54 | -9.44 | 24.41 | 6.99 | 244.94 | 0.1331 | 894.0 | 775.3 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -8.97 | 24.21 | 6.80 | 247.79 | 0.1269 | 944.0 | 787.7 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -8.43 | 24.05 | 6.64 | 251.46 | 0.1211 | 816.0 | 644.1 | |
| 0.00 | 4.75 | 0.00 | 2.38 | -11.52 | 24.08 | 6.67 | 230.96 | 0.1471 | 1110.0 | 864.3 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -8.76 | 24.00 | 6.58 | 248.73 | 0.1221 | 892.0 | 724.6 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -8.88 | 23.78 | 6.37 | 247.16 | 0.1195 | 774.0 | 739.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.24 | 23.67 | 6.25 | 243.99 | 0.1202 | 1066.0 | 933.7 | |
| 0.00 | 4.31 | 0.00 | 2.16 | -11.59 | 23.71 | 6.30 | 229.04 | 0.1429 | 900.0 | 730.8 | |
| 0.00 | 2.64 | 0.00 | 1.32 | -8.52 | 23.57 | 6.15 | 249.37 | 0.1137 | 882.0 | 813.1 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -9.09 | 23.57 | 6.16 | 244.81 | 0.1176 | 945.0 | 758.5 | |
| 0.00 | 1.94 | 0.00 | 0.96 | -8.76 | 23.42 | 6.00 | 246.90 | 0.1128 | 831.0 | 759.0 | |
| 3.17 | 12.14 | 1.58 | 6.06 | -9.82 | 23.19 | 5.77 | 237.81 | 0.1177 | 1166.0 | 767.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.32 | 23.00 | 5.58 | 227.14 | 0.1308 | 900.0 | 658.4 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -9.34 | 22.75 | 5.34 | 239.53 | 0.1070 | 1129.0 | 903.2 | |
| 0.00 | 1.94 | 0.00 | 0.97 | -10.54 | 22.65 | 5.23 | 230.12 | 0.1174 | 904.0 | 699.9 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -11.63 | 22.64 | 5.22 | 223.55 | 0.1300 | -382.0 | -346.0 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -10.76 | 22.44 | 5.02 | 227.58 | 0.1170 | 1090.0 | 884.0 | |
| 1.06 | 3.52 | 0.53 | 1.75 | -9.47 | 22.27 | 4.85 | 236.09 | 0.1010 | 1176.7 | 917.9 | |
| 0.00 | 3.08 | 0.00 | 1.53 | -10.37 | 21.85 | 4.44 | 226.67 | 0.1051 | 946.0 | 792.9 | |
| 0.00 | 1.94 | 0.00 | 0.96 | -10.46 | 21.61 | 4.19 | 224.43 | 0.1032 | 1160.0 | 919.0 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.61 | 21.46 | 4.04 | 222.36 | 0.1033 | 900.0 | 760.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.67 | 21.27 | 3.86 | 220.66 | 0.1020 | 829.0 | 696.8 | |
| 0.00 | 3.52 | 0.00 | 1.75 | -9.05 | 21.23 | 3.81 | 233.41 | 0.0821 | 885.0 | 732.5 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -15.33 | 21.25 | 3.83 | 202.25 | 0.1710 | 727.0 | 496.3 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -10.43 | 21.12 | 3.70 | 221.10 | 0.0971 | 946.0 | 820.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.59 | 21.11 | 3.69 | 227.53 | 0.0865 | 841.0 | 657.4 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -11.40 | 20.49 | 3.07 | 210.39 | 0.1043 | -733.0 | -608.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.76 | 20.24 | 2.83 | 206.76 | 0.1078 | -868.0 | -757.5 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -9.33 | 17.76 | 0.35 | 186.39 | 0.0540 | -866.0 | -641.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.70 | 17.03 | -0.39 | 176.60 | 0.1127 | -695.0 | -628.8 | |
| 0.00 | 4.22 | 0.00 | 2.11 | -13.15 | 16.87 | -0.55 | 175.57 | 0.1207 | -976.0 | -829.2 | |
| 10.56 | 33.43 | 5.24 | 16.60 | -10.14 | 16.42 | -0.99 | 165.80 | 0.0699 | -1169.2 | -799.7 | |
| 0.97 | 252.41 | 0.48 | 125.76 | -12.25 | 16.20 | -1.22 | 168.71 | 0.1066 | -851.3 | -476.2 | |
| 4.40 | -55.00 | 2.19 | -55.00 | -11.97 | 16.08 | -1.34 | 167.04 | 0.1025 | -1121.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -13.72 | 15.91 | -1.51 | 168.87 | 0.1328 | -698.0 | -560.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.72 | 15.94 | -1.48 | 157.08 | 0.0656 | -804.0 | -516.7 | |
| 8.97 | -55.00 | 4.47 | -55.00 | -12.37 | 15.86 | -1.56 | 165.97 | 0.1100 | -1068.6 | 999999 | |
| 13.99 | -55.00 | 6.97 | -55.00 | -11.88 | 15.83 | -1.58 | 164.54 | 0.1020 | -1364.1 | 999999 | |
| 5.01 | -55.00 | 2.50 | -55.00 | -12.27 | 15.68 | -1.74 | 164.16 | 0.1092 | -1295.9 | 999999 | |
| 2.29 | -55.00 | 1.14 | -55.00 | -12.67 | 15.61 | -1.80 | 164.58 | 0.1161 | -844.6 | 999999 | |
| 8.71 | -55.00 | 4.34 | -55.00 | -11.82 | 15.53 | -1.89 | 161.55 | 0.1025 | -1372.9 | 999999 | |
| 12.58 | -55.00 | 6.27 | -55.00 | -12.36 | 15.46 | -1.96 | 162.57 | 0.1118 | -1118.6 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.44 | 15.48 | -1.94 | 155.39 | 0.0803 | -1018.0 | -864.1 | |
| 4.40 | -55.00 | 2.19 | -55.00 | -12.03 | 15.40 | -2.01 | 161.10 | 0.1066 | -1129.9 | 999999 | |
| 4.40 | -55.00 | 2.19 | -55.00 | -11.73 | 15.31 | -2.10 | 159.31 | 0.1022 | -1133.1 | 999999 | |
| 2.55 | -55.00 | 1.27 | -55.00 | -11.91 | 15.28 | -2.14 | 159.65 | 0.1054 | -1065.9 | 999999 | |
| 1.76 | -55.00 | 0.88 | -55.00 | -12.45 | 15.28 | -2.14 | 161.29 | 0.1143 | -959.2 | 999999 | |
| 0.00 | 15.75 | 0.00 | 7.82 | -10.17 | 15.26 | -2.15 | 151.47 | 0.0777 | -937.0 | -710.3 | |
| 0.00 | 5.19 | 0.00 | 2.58 | -10.53 | 15.26 | -2.15 | 153.54 | 0.0833 | -1191.0 | -929.7 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -9.23 | 15.27 | -2.14 | 144.48 | 0.0639 | -822.0 | -595.0 | |
| 0.00 | 3.34 | 0.00 | 1.66 | -10.86 | 15.11 | -2.31 | 153.67 | 0.0897 | -1189.0 | -993.8 | |
| 0.53 | -55.00 | 0.26 | -55.00 | -11.49 | 15.10 | -2.32 | 156.48 | 0.0997 | -1086.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.56 | 15.02 | -2.40 | 151.17 | 0.0857 | -830.0 | -588.1 | |
| 0.00 | 26.57 | 0.00 | 13.23 | -11.52 | 14.64 | -2.78 | 152.59 | 0.1036 | -392.0 | -517.0 | |
| 0.97 | 2.99 | 0.48 | 1.49 | -10.16 | 14.38 | -3.04 | 142.51 | 0.0860 | -1105.7 | -854.0 | |
| 0.00 | 2.20 | 0.00 | 1.11 | -15.76 | 12.74 | -4.67 | 154.62 | 0.1838 | -941.0 | -703.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.81 | 11.13 | -6.28 | 132.22 | 0.1453 | -640.0 | -528.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
