SDO HMI 2014-04-06 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.50 | 521.99 | 50.18 | 260.54 | -11.24 | 18.65 | 1.79 | 192.08 | 0.1174 | -98.5 | -174.1 | |
|
previous
or next observation for the same group /

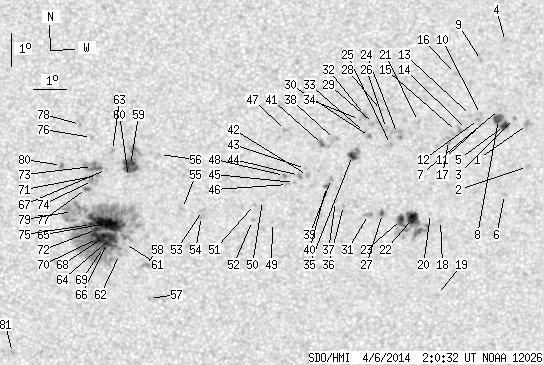

back to the solar disc SDO HMI 2014-04-06 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.22 | 0.00 | 2.14 | -8.79 | 28.58 | 11.72 | 257.02 | 0.2069 | 897.0 | 678.8 | |
| 0.00 | 1.94 | 0.00 | 0.98 | -10.05 | 28.63 | 11.76 | 251.22 | 0.2129 | 661.0 | 512.0 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -8.62 | 28.18 | 11.31 | 257.47 | 0.1995 | 748.0 | 641.6 | |
| 0.00 | 0.44 | 0.00 | 0.22 | -6.32 | 27.84 | 10.98 | 269.15 | 0.1901 | 590.0 | 582.8 | |
| 3.87 | 14.61 | 1.96 | 7.37 | -8.83 | 27.87 | 11.01 | 256.08 | 0.1953 | 910.8 | 792.2 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -10.91 | 27.94 | 11.08 | 246.28 | 0.2070 | 603.0 | 426.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -8.36 | 27.71 | 10.84 | 258.34 | 0.1908 | 824.0 | 646.8 | |
| 4.93 | -5.00 | 2.49 | -5.00 | -8.66 | 27.68 | 10.82 | 256.77 | 0.1915 | 1119.5 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -6.90 | 27.12 | 10.25 | 265.88 | 0.1779 | 846.0 | 684.5 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -8.52 | 27.12 | 10.26 | 256.90 | 0.1816 | 962.0 | 734.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -8.85 | 27.13 | 10.27 | 255.13 | 0.1830 | 656.0 | 453.7 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -8.67 | 27.07 | 10.20 | 256.01 | 0.1812 | 1049.0 | 773.9 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -8.55 | 26.82 | 9.95 | 256.35 | 0.1767 | 820.0 | 640.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.98 | 26.70 | 9.84 | 253.86 | 0.1765 | 754.0 | 592.6 | |
| 0.00 | 6.78 | 0.00 | 3.41 | -9.04 | 26.40 | 9.53 | 253.04 | 0.1718 | 200.0 | 675.0 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -7.30 | 26.33 | 9.46 | 263.17 | 0.1650 | 815.0 | 665.8 | |
| 0.00 | 3.61 | 0.00 | 1.81 | -9.32 | 26.16 | 9.29 | 251.09 | 0.1692 | 651.0 | 721.5 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -11.73 | 25.98 | 9.11 | 238.13 | 0.1835 | 778.0 | 567.4 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -13.96 | 25.97 | 9.10 | 228.63 | 0.2055 | 776.0 | 612.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -11.52 | 25.66 | 8.80 | 238.24 | 0.1771 | 795.0 | 591.8 | |
| 0.00 | 2.11 | 0.00 | 1.06 | -8.76 | 25.22 | 8.36 | 252.75 | 0.1511 | 729.0 | 588.8 | |
| 11.09 | 47.34 | 5.57 | 23.80 | -11.68 | 25.11 | 8.25 | 235.82 | 0.1706 | 1117.1 | 647.2 | |
| 3.87 | -22.00 | 1.94 | -22.00 | -11.71 | 24.77 | 7.91 | 234.55 | 0.1661 | 1066.4 | 999999 | |
| 0.00 | 6.78 | 0.00 | 3.39 | -9.13 | 24.59 | 7.72 | 249.01 | 0.1427 | 439.0 | 817.4 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.46 | 24.38 | 7.51 | 246.29 | 0.1415 | 897.0 | 803.1 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -8.98 | 24.25 | 7.38 | 249.18 | 0.1364 | 866.0 | 784.6 | |
| 1.06 | 2.02 | 0.53 | 1.01 | -11.54 | 24.18 | 7.32 | 233.37 | 0.1562 | 994.7 | 826.2 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -8.44 | 24.08 | 7.22 | 252.65 | 0.1308 | 836.0 | 633.5 | |
| 0.00 | 3.43 | 0.00 | 1.71 | -8.84 | 23.85 | 6.98 | 249.19 | 0.1291 | 937.0 | 804.8 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.23 | 23.73 | 6.87 | 246.04 | 0.1297 | 1032.0 | 862.2 | |
| 0.00 | 3.87 | 0.00 | 1.94 | -11.57 | 23.75 | 6.88 | 231.54 | 0.1506 | 914.0 | 686.6 | |
| 0.00 | 3.43 | 0.00 | 1.71 | -8.57 | 23.57 | 6.70 | 250.48 | 0.1230 | 1148.0 | 844.3 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -9.11 | 23.58 | 6.71 | 246.43 | 0.1265 | 902.0 | 710.7 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -8.72 | 23.42 | 6.55 | 248.89 | 0.1214 | 905.0 | 679.0 | |
| 4.14 | 10.03 | 2.07 | 5.01 | -9.81 | 23.22 | 6.36 | 240.24 | 0.1262 | 1146.6 | 833.6 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -11.31 | 22.97 | 6.11 | 229.69 | 0.1375 | 839.0 | 736.0 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -11.19 | 22.73 | 5.86 | 229.21 | 0.1329 | 813.0 | 497.7 | |
| 0.00 | 4.14 | 0.00 | 2.06 | -9.33 | 22.66 | 5.80 | 241.56 | 0.1139 | 653.0 | 652.7 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -10.50 | 22.59 | 5.73 | 232.82 | 0.1237 | 901.0 | 745.6 | |
| 0.44 | 1.67 | 0.22 | 0.83 | -10.75 | 22.44 | 5.58 | 230.54 | 0.1242 | 1110.6 | 926.1 | |
| 0.62 | 5.46 | 0.31 | 2.72 | -9.48 | 22.30 | 5.43 | 238.79 | 0.1097 | 1176.6 | 824.9 | |
| 0.00 | 2.73 | 0.00 | 1.36 | -10.42 | 21.85 | 4.99 | 229.59 | 0.1128 | 1015.0 | 756.8 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -10.21 | 21.79 | 4.92 | 230.70 | 0.1097 | 947.0 | 781.3 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -10.42 | 21.61 | 4.74 | 228.17 | 0.1097 | 1058.0 | 902.6 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.63 | 21.46 | 4.59 | 225.83 | 0.1102 | 881.0 | 666.1 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -10.70 | 21.25 | 4.38 | 224.08 | 0.1084 | 683.0 | 540.5 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -9.07 | 21.17 | 4.30 | 236.37 | 0.0893 | 825.0 | 721.2 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -10.43 | 21.15 | 4.29 | 225.27 | 0.1039 | 974.0 | 849.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.84 | 20.80 | 3.94 | 214.60 | 0.1189 | -708.0 | -525.6 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.18 | 20.49 | 3.62 | 215.81 | 0.1064 | -634.0 | -464.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.30 | 20.24 | 3.38 | 213.30 | 0.1057 | -763.0 | -597.2 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -11.79 | 20.19 | 3.32 | 210.49 | 0.1123 | -879.0 | -673.6 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -11.49 | 18.65 | 1.79 | 198.55 | 0.0965 | -716.0 | -579.4 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -11.67 | 18.62 | 1.76 | 197.68 | 0.0993 | -783.0 | -726.8 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -11.43 | 18.04 | 1.17 | 192.58 | 0.0926 | -742.0 | -586.8 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.81 | 17.34 | 0.47 | 187.46 | 0.0625 | -752.0 | -591.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -14.15 | 17.03 | 0.16 | 181.15 | 0.1377 | -830.0 | -567.1 | |
| 0.00 | 4.22 | 0.00 | 2.11 | -13.15 | 16.91 | 0.04 | 180.33 | 0.1204 | -964.0 | -820.2 | |
| 12.14 | 30.89 | 6.03 | 15.33 | -10.14 | 16.45 | -0.41 | 173.99 | 0.0681 | -1126.1 | -788.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.47 | 16.39 | -0.48 | 173.64 | 0.0740 | -715.0 | -600.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -12.48 | 16.26 | -0.60 | 174.57 | 0.1093 | -481.0 | -400.2 | |
| 0.00 | 1.94 | 0.00 | 0.97 | -12.82 | 16.11 | -0.76 | 173.54 | 0.1153 | -722.0 | -595.1 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -9.68 | 15.91 | -0.96 | 164.51 | 0.0621 | -850.0 | -669.7 | |
| 6.51 | 242.07 | 3.24 | 120.58 | -12.30 | 15.86 | -1.00 | 170.77 | 0.1070 | -1156.7 | -527.8 | |
| 23.32 | -64.00 | 11.61 | -64.00 | -11.88 | 15.74 | -1.12 | 168.91 | 0.1001 | -1366.8 | 999999 | |
| 5.90 | -64.00 | 2.94 | -64.00 | -12.45 | 15.74 | -1.13 | 169.90 | 0.1099 | -1069.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.25 | 15.72 | -1.14 | 164.21 | 0.0726 | -915.0 | -749.7 | |
| 4.66 | -64.00 | 2.32 | -64.00 | -12.27 | 15.65 | -1.22 | 168.78 | 0.1071 | -1310.7 | 999999 | |
| 2.20 | -64.00 | 1.10 | -64.00 | -12.60 | 15.62 | -1.25 | 169.08 | 0.1129 | -968.4 | 999999 | |
| 9.59 | -64.00 | 4.78 | -64.00 | -12.33 | 15.43 | -1.43 | 166.99 | 0.1089 | -1135.3 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.43 | 15.45 | -1.42 | 161.46 | 0.0770 | -1092.0 | -884.0 | |
| 4.05 | -64.00 | 2.02 | -64.00 | -12.06 | 15.40 | -1.46 | 166.12 | 0.1044 | -1143.4 | 999999 | |
| 0.00 | 12.85 | 0.00 | 6.38 | -10.16 | 15.29 | -1.57 | 158.34 | 0.0735 | -867.0 | -796.7 | |
| 0.00 | 6.42 | 0.00 | 3.19 | -10.58 | 15.29 | -1.57 | 160.27 | 0.0804 | -1275.0 | -912.5 | |
| 1.32 | -64.00 | 0.66 | -64.00 | -11.91 | 15.25 | -1.61 | 164.35 | 0.1026 | -1065.3 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -9.29 | 15.27 | -1.60 | 152.48 | 0.0598 | -841.0 | -665.6 | |
| 0.79 | 2.73 | 0.39 | 1.36 | -10.82 | 15.11 | -1.76 | 159.23 | 0.0854 | -1143.9 | -998.0 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -8.90 | 14.94 | -1.93 | 144.13 | 0.0570 | -949.0 | -773.3 | |
| 0.00 | 29.74 | 0.00 | 14.81 | -11.51 | 14.67 | -2.19 | 157.72 | 0.0993 | -510.0 | -557.3 | |
| 0.00 | 2.46 | 0.00 | 1.22 | -10.13 | 14.35 | -2.52 | 147.34 | 0.0804 | -1093.0 | -977.3 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -15.76 | 12.76 | -4.11 | 157.34 | 0.1799 | -952.0 | -721.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
