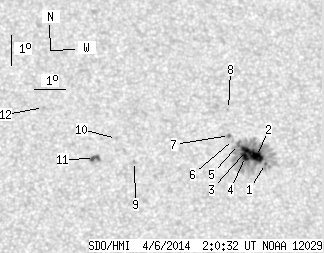

SDO HMI 2014-04-06 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.34 | 118.88 | 14.14 | 66.43 | 17.76 | 30.50 | 13.63 | 331.02 | 0.4647 | -631.6 | -345.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.35 | 107.79 | 0.20 | 60.29 | 17.47 | 31.28 | 14.42 | 329.26 | 0.4665 | -896.8 | -402.2 | |
| 11.35 | -1.00 | 6.35 | -1.00 | 17.69 | 31.01 | 14.14 | 329.99 | 0.4673 | -1069.0 | 999999 | |
| 5.37 | -1.00 | 3.00 | -1.00 | 17.88 | 30.70 | 13.83 | 330.74 | 0.4674 | -1015.1 | 999999 | |
| 5.10 | -1.00 | 2.85 | -1.00 | 17.68 | 30.65 | 13.78 | 330.61 | 0.4644 | -1215.1 | 999999 | |
| 0.62 | -1.00 | 0.34 | -1.00 | 18.07 | 30.45 | 13.59 | 331.38 | 0.4681 | -786.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 18.23 | 30.30 | 13.44 | 331.81 | 0.4692 | -673.0 | -624.0 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 18.36 | 30.18 | 13.32 | 332.16 | 0.4701 | -740.0 | -683.1 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 19.22 | 30.22 | 13.36 | 332.97 | 0.4820 | -546.0 | -476.8 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 17.44 | 27.06 | 10.19 | 337.13 | 0.4364 | 769.0 | 634.6 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 18.18 | 26.53 | 9.66 | 338.86 | 0.4440 | 673.0 | 502.7 | |
| 2.55 | 4.75 | 1.40 | 2.61 | 17.51 | 25.79 | 8.92 | 339.80 | 0.4301 | 909.0 | 763.7 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 19.17 | 24.24 | 7.38 | 344.21 | 0.4474 | 685.0 | 603.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
