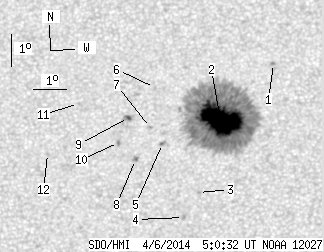

SDO HMI 2014-04-06 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.36 | 442.67 | 43.65 | 231.91 | 12.57 | 13.63 | -1.59 | 4.82 | 0.3253 | -1089.6 | -358.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.84 | 14.38 | 15.35 | 0.13 | 359.63 | 0.3539 | 879.0 | 667.3 | |
| 82.04 | 422.78 | 42.96 | 221.50 | 12.60 | 13.72 | -1.50 | 4.52 | 0.3255 | -1469.8 | -399.4 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 10.30 | 13.06 | -2.16 | 7.42 | 0.2885 | 839.0 | 629.4 | |
| 0.00 | 1.76 | 0.00 | 0.91 | 9.52 | 12.61 | -2.61 | 9.39 | 0.2767 | 984.0 | 799.8 | |
| 0.00 | 2.55 | 0.00 | 1.33 | 11.85 | 11.95 | -3.27 | 10.20 | 0.3169 | -810.0 | -678.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 13.63 | 11.68 | -3.54 | 10.02 | 0.3466 | -586.0 | -557.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 12.36 | 11.57 | -3.65 | 11.03 | 0.3264 | -544.0 | -452.4 | |
| 0.00 | 2.64 | 0.00 | 1.38 | 11.35 | 11.12 | -4.10 | 13.05 | 0.3116 | 937.0 | 738.1 | |
| 1.32 | 4.23 | 0.69 | 2.22 | 12.68 | 10.89 | -4.33 | 12.81 | 0.3339 | 931.9 | 780.8 | |
| 0.00 | 1.94 | 0.00 | 1.01 | 11.89 | 10.59 | -4.63 | 14.24 | 0.3224 | 1019.0 | 834.2 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 13.14 | 9.33 | -5.89 | 16.76 | 0.3478 | 617.0 | 444.8 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 11.57 | 8.41 | -6.81 | 20.82 | 0.3281 | 707.0 | 555.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
