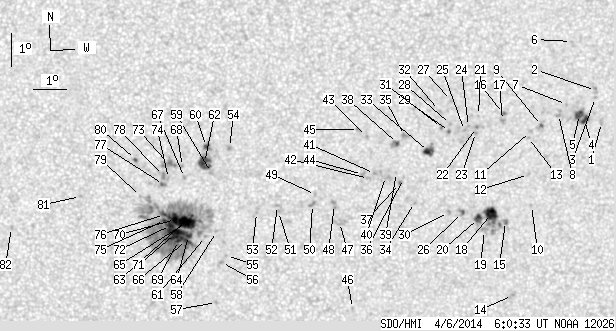

SDO HMI 2014-04-06 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.16 | 481.21 | 44.63 | 240.61 | -11.35 | 18.59 | 3.92 | 208.66 | 0.1282 | -58.5 | -216.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.82 | 0.00 | 1.44 | -8.78 | 28.63 | 13.96 | 258.77 | 0.2441 | 891.0 | 677.3 | |
| 0.00 | 2.99 | 0.00 | 1.53 | -7.82 | 28.41 | 13.74 | 262.60 | 0.2383 | 619.0 | 641.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -8.03 | 28.42 | 13.74 | 261.72 | 0.2388 | 689.0 | 463.5 | |
| 2.90 | 13.73 | 1.48 | 6.99 | -8.70 | 28.09 | 13.42 | 258.73 | 0.2350 | 961.6 | 787.3 | |
| 4.49 | -4.00 | 2.29 | -4.00 | -8.55 | 27.93 | 13.26 | 259.24 | 0.2320 | 1144.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -6.37 | 27.62 | 12.95 | 268.74 | 0.2238 | 770.0 | 603.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -8.26 | 27.52 | 12.85 | 260.23 | 0.2243 | 785.0 | 624.7 | |
| 0.00 | 3.08 | 0.00 | 1.56 | -8.57 | 27.28 | 12.61 | 258.71 | 0.2211 | 767.0 | 738.3 | |
| 0.53 | 2.90 | 0.27 | 1.47 | -8.91 | 26.76 | 12.09 | 256.72 | 0.2136 | 903.5 | 734.4 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -11.32 | 26.54 | 11.87 | 245.78 | 0.2221 | 809.0 | 532.7 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -9.10 | 26.43 | 11.76 | 255.51 | 0.2087 | 930.0 | 655.5 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -10.39 | 26.41 | 11.74 | 249.58 | 0.2145 | 981.0 | 684.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.28 | 26.37 | 11.70 | 254.60 | 0.2085 | 930.0 | 717.4 | |
| 0.00 | 3.35 | 0.00 | 1.71 | -14.05 | 26.07 | 11.39 | 234.28 | 0.2371 | 769.0 | 613.6 | |
| 0.00 | 3.08 | 0.00 | 1.56 | -11.82 | 25.75 | 11.08 | 242.21 | 0.2135 | 946.0 | 754.7 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -8.57 | 25.58 | 10.90 | 257.19 | 0.1927 | 1031.0 | 810.6 | |
| 0.00 | 2.90 | 0.00 | 1.47 | -8.78 | 25.55 | 10.88 | 256.09 | 0.1930 | 1042.0 | 731.3 | |
| 11.00 | 34.51 | 5.57 | 17.46 | -11.58 | 25.30 | 10.63 | 242.30 | 0.2050 | 1211.3 | 747.4 | |
| 0.00 | 3.87 | 0.00 | 1.96 | -12.10 | 25.10 | 10.43 | 239.62 | 0.2061 | 642.0 | 546.3 | |
| 3.70 | -18.00 | 1.87 | -18.00 | -11.74 | 24.90 | 10.23 | 240.72 | 0.2003 | 1116.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -8.65 | 24.81 | 10.13 | 255.94 | 0.1802 | 750.0 | 530.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.01 | 24.75 | 10.08 | 253.92 | 0.1808 | 1134.0 | 922.7 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -9.16 | 24.73 | 10.06 | 253.07 | 0.1810 | 1043.0 | 791.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -8.98 | 24.51 | 9.84 | 253.70 | 0.1766 | 897.0 | 751.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.10 | 24.39 | 9.72 | 252.85 | 0.1752 | 1063.0 | 855.2 | |
| 0.53 | 3.52 | 0.27 | 1.78 | -11.57 | 24.40 | 9.73 | 240.32 | 0.1914 | 1080.7 | 855.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -8.21 | 23.97 | 9.29 | 257.41 | 0.1645 | 812.0 | 629.9 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -8.93 | 23.95 | 9.28 | 253.14 | 0.1672 | 994.0 | 831.9 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -9.14 | 23.93 | 9.25 | 251.89 | 0.1678 | 1059.0 | 910.7 | |
| 0.00 | 1.85 | 0.00 | 0.93 | -11.58 | 23.97 | 9.29 | 239.19 | 0.1850 | 802.0 | 769.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.03 | 23.68 | 9.01 | 252.13 | 0.1632 | 1110.0 | 865.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.52 | 23.60 | 8.93 | 255.07 | 0.1596 | 805.0 | 591.7 | |
| 4.84 | 9.24 | 2.43 | 4.64 | -9.75 | 23.30 | 8.62 | 247.11 | 0.1611 | 1120.8 | 796.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.29 | 22.90 | 8.23 | 237.61 | 0.1670 | 778.0 | 693.6 | |
| 0.00 | 3.17 | 0.00 | 1.59 | -9.28 | 22.55 | 7.87 | 248.23 | 0.1463 | 944.0 | 776.5 | |
| 0.00 | 1.85 | 0.00 | 0.93 | -10.57 | 22.55 | 7.87 | 240.40 | 0.1556 | 837.0 | 646.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.73 | 22.43 | 7.75 | 239.17 | 0.1551 | 1042.0 | 919.7 | |
| 0.97 | 4.93 | 0.48 | 2.47 | -9.53 | 22.34 | 7.66 | 246.14 | 0.1445 | 1195.7 | 913.6 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.40 | 22.33 | 7.65 | 240.75 | 0.1508 | 888.0 | 620.2 | |
| 0.00 | 5.90 | 0.00 | 2.95 | -10.52 | 21.99 | 7.32 | 238.94 | 0.1469 | 424.0 | 666.8 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.44 | 21.65 | 6.98 | 238.28 | 0.1411 | 1131.0 | 912.4 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -10.59 | 21.47 | 6.80 | 236.68 | 0.1399 | 762.0 | 697.7 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.33 | 21.38 | 6.71 | 244.71 | 0.1281 | 981.0 | 848.2 | |
| 0.00 | 2.64 | 0.00 | 1.32 | -10.47 | 21.28 | 6.61 | 236.69 | 0.1361 | 946.0 | 699.8 | |
| 0.00 | 2.20 | 0.00 | 1.10 | -9.12 | 21.13 | 6.46 | 245.43 | 0.1228 | 921.0 | 719.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -14.52 | 21.07 | 6.40 | 216.74 | 0.1812 | 766.0 | 530.5 | |
| 0.00 | 7.66 | 0.00 | 3.83 | -11.92 | 20.60 | 5.93 | 225.47 | 0.1425 | -421.0 | -629.9 | |
| 0.00 | 3.79 | 0.00 | 1.89 | -11.38 | 20.44 | 5.77 | 227.57 | 0.1341 | -722.0 | -710.3 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -11.09 | 19.85 | 5.18 | 226.24 | 0.1232 | 531.0 | 338.7 | |
| 0.00 | 2.55 | 0.00 | 1.27 | -11.39 | 19.76 | 5.09 | 224.01 | 0.1258 | -956.0 | -798.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.61 | 18.72 | 4.05 | 216.45 | 0.1170 | -873.0 | -722.4 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.43 | 18.69 | 4.02 | 217.18 | 0.1142 | -884.0 | -754.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.64 | 18.05 | 3.38 | 211.48 | 0.1110 | -800.0 | -610.5 | |
| 0.00 | 2.38 | 0.00 | 1.18 | -9.69 | 17.21 | 2.53 | 215.93 | 0.0746 | -932.0 | -761.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -12.94 | 17.14 | 2.47 | 199.78 | 0.1246 | -749.0 | -578.2 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -13.15 | 16.99 | 2.32 | 198.10 | 0.1272 | -1077.0 | -874.1 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -14.36 | 16.84 | 2.17 | 194.56 | 0.1467 | -827.0 | -651.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.22 | 16.83 | 2.15 | 199.43 | 0.1109 | -903.0 | -677.8 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -10.44 | 16.66 | 1.99 | 205.00 | 0.0812 | -770.0 | -635.3 | |
| 1.67 | 4.75 | 0.83 | 2.36 | -9.66 | 16.51 | 1.83 | 207.89 | 0.0678 | -1077.5 | -781.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -12.37 | 16.49 | 1.82 | 196.18 | 0.1117 | -732.0 | -495.1 | |
| 8.71 | 16.29 | 4.33 | 8.09 | -10.14 | 16.45 | 1.78 | 204.16 | 0.0749 | -1164.5 | -867.9 | |
| 0.26 | 266.02 | 0.13 | 132.49 | -11.74 | 16.06 | 1.38 | 193.88 | 0.0991 | -1078.7 | -551.2 | |
| 2.90 | -63.00 | 1.45 | -63.00 | -12.34 | 15.97 | 1.29 | 191.74 | 0.1090 | -1079.7 | 999999 | |
| 16.29 | -63.00 | 8.11 | -63.00 | -11.95 | 15.90 | 1.23 | 191.95 | 0.1021 | -1398.8 | 999999 | |
| 2.73 | -63.00 | 1.36 | -63.00 | -12.49 | 15.91 | 1.23 | 190.94 | 0.1113 | -1019.1 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -10.59 | 15.84 | 1.17 | 194.79 | 0.0788 | -945.0 | -736.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.26 | 15.78 | 1.11 | 195.16 | 0.0729 | -867.0 | -739.3 | |
| 0.88 | -63.00 | 0.44 | -63.00 | -12.49 | 15.66 | 0.99 | 188.80 | 0.1106 | -1145.7 | 999999 | |
| 6.78 | -63.00 | 3.37 | -63.00 | -11.86 | 15.57 | 0.89 | 188.88 | 0.0995 | -1372.6 | 999999 | |
| 12.24 | -63.00 | 6.10 | -63.00 | -12.28 | 15.57 | 0.90 | 188.27 | 0.1067 | -1266.9 | 999999 | |
| 4.31 | -63.00 | 2.15 | -63.00 | -12.04 | 15.41 | 0.74 | 187.15 | 0.1022 | -1272.0 | 999999 | |
| 0.00 | 9.86 | 0.00 | 4.90 | -10.17 | 15.35 | 0.68 | 189.66 | 0.0698 | -1075.0 | -859.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.62 | 15.35 | 0.68 | 188.67 | 0.0776 | -942.0 | -881.2 | |
| 1.23 | -63.00 | 0.61 | -63.00 | -11.89 | 15.23 | 0.56 | 185.53 | 0.0992 | -988.1 | 999999 | |
| 1.67 | -63.00 | 0.83 | -63.00 | -11.71 | 15.23 | 0.56 | 185.72 | 0.0961 | -1001.4 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.18 | -10.80 | 15.20 | 0.53 | 186.48 | 0.0804 | -1323.0 | -1053.0 | |
| 0.00 | 2.64 | 0.00 | 1.31 | -10.53 | 15.20 | 0.53 | 186.89 | 0.0757 | -1238.0 | -1053.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.16 | 14.50 | -0.18 | 177.98 | 0.0862 | -775.0 | -611.9 | |
| 0.53 | 1.58 | 0.26 | 0.79 | -10.05 | 14.35 | -0.33 | 175.16 | 0.0669 | -1062.0 | -913.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.16 | 12.66 | -2.01 | 158.11 | 0.0928 | -865.0 | -588.0 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -12.08 | 10.53 | -4.14 | 145.30 | 0.1245 | -805.0 | -599.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
