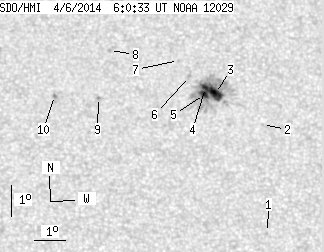

SDO HMI 2014-04-06 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.22 | 94.97 | 11.99 | 53.64 | 17.73 | 30.66 | 15.98 | 326.91 | 0.4823 | -660.0 | -331.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.39 | 13.27 | 32.28 | 17.61 | 318.19 | 0.4434 | 691.0 | 553.9 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 16.75 | 32.42 | 17.75 | 322.88 | 0.4857 | -644.0 | -558.9 | |
| 12.15 | 86.97 | 6.87 | 49.16 | 17.72 | 30.97 | 16.30 | 326.38 | 0.4847 | -1073.2 | -387.4 | |
| 3.61 | -3.00 | 2.04 | -3.00 | 17.91 | 30.66 | 15.99 | 327.10 | 0.4845 | -1070.1 | 999999 | |
| 5.46 | -3.00 | 3.08 | -3.00 | 17.67 | 30.60 | 15.93 | 326.92 | 0.4811 | -1233.3 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.85 | 18.25 | 30.17 | 15.49 | 328.31 | 0.4849 | -777.0 | -720.2 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 18.77 | 29.85 | 15.18 | 329.40 | 0.4891 | -791.0 | -599.6 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 19.04 | 27.62 | 12.95 | 333.49 | 0.4764 | 674.0 | 583.4 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 17.48 | 27.15 | 12.47 | 332.75 | 0.4518 | 758.0 | 587.7 | |
| 0.00 | 1.58 | 0.00 | 0.87 | 17.52 | 25.73 | 11.06 | 335.48 | 0.4426 | 909.0 | 863.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
