SDO HMI 2014-04-06 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.11 | 487.91 | 50.03 | 244.05 | -11.35 | 18.50 | 4.38 | 212.27 | 0.1315 | -161.8 | -169.1 | |
|
previous
or next observation for the same group /

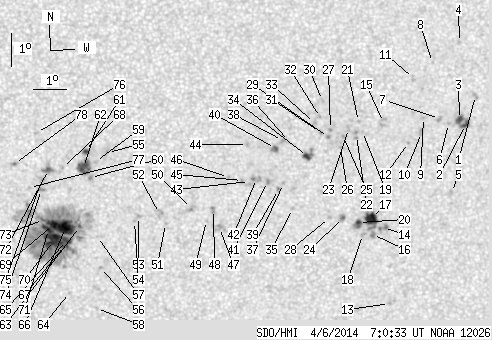

back to the solar disc SDO HMI 2014-04-06 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.70 | 0.00 | 1.89 | -7.80 | 28.45 | 14.33 | 262.90 | 0.2482 | 843.0 | 653.6 | |
| 2.91 | 12.24 | 1.48 | 6.25 | -8.68 | 28.17 | 14.05 | 259.21 | 0.2453 | 930.5 | 845.1 | |
| 3.26 | -2.00 | 1.66 | -2.00 | -8.53 | 27.98 | 13.85 | 259.68 | 0.2418 | 1196.4 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -6.22 | 27.91 | 13.78 | 269.32 | 0.2379 | 773.0 | 504.2 | |
| 0.00 | 1.94 | 0.00 | 0.99 | -10.73 | 27.82 | 13.69 | 250.72 | 0.2475 | 796.0 | 566.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.66 | 27.64 | 13.51 | 258.93 | 0.2365 | 705.0 | 663.6 | |
| 0.00 | 2.82 | 0.00 | 1.43 | -8.52 | 27.35 | 13.23 | 259.35 | 0.2313 | 880.0 | 793.0 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -6.84 | 27.09 | 12.96 | 266.59 | 0.2241 | 717.0 | 550.1 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -8.50 | 26.85 | 12.73 | 259.08 | 0.2230 | 932.0 | 783.5 | |
| 0.00 | 3.52 | 0.00 | 1.79 | -8.95 | 26.81 | 12.68 | 257.04 | 0.2236 | 734.0 | 726.0 | |
| 0.00 | 2.29 | 0.00 | 1.16 | -7.33 | 26.51 | 12.38 | 264.20 | 0.2148 | 591.0 | 557.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -9.26 | 26.41 | 12.29 | 255.30 | 0.2182 | 817.0 | 629.1 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -14.12 | 26.03 | 11.90 | 235.13 | 0.2449 | 775.0 | 635.2 | |
| 0.00 | 5.90 | 0.00 | 3.00 | -11.83 | 25.73 | 11.61 | 243.17 | 0.2217 | 796.0 | 759.7 | |
| 0.00 | 5.37 | 0.00 | 2.72 | -8.67 | 25.62 | 11.49 | 257.23 | 0.2029 | 389.0 | 709.1 | |
| 0.00 | 3.26 | 0.00 | 1.65 | -12.05 | 25.40 | 11.27 | 241.62 | 0.2183 | 857.0 | 760.1 | |
| 10.04 | 18.05 | 5.09 | 9.15 | -11.57 | 25.35 | 11.22 | 243.54 | 0.2139 | 1228.5 | 845.8 | |
| 0.00 | 2.11 | 0.00 | 1.07 | -12.05 | 25.08 | 10.96 | 240.95 | 0.2136 | 651.0 | 592.0 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -8.96 | 24.98 | 10.85 | 255.14 | 0.1933 | 760.0 | 633.2 | |
| 2.11 | 6.69 | 1.07 | 3.39 | -11.70 | 24.95 | 10.82 | 242.19 | 0.2088 | 1208.8 | 869.5 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -8.66 | 24.85 | 10.72 | 256.52 | 0.1900 | 867.0 | 673.2 | |
| 0.00 | 2.64 | 0.00 | 1.33 | -9.08 | 24.80 | 10.67 | 254.29 | 0.1908 | 551.0 | 863.2 | |
| 0.00 | 3.26 | 0.00 | 1.64 | -8.87 | 24.54 | 10.42 | 255.04 | 0.1858 | 826.0 | 686.5 | |
| 0.53 | 4.31 | 0.27 | 2.18 | -11.55 | 24.47 | 10.35 | 241.81 | 0.2006 | 1170.7 | 923.3 | |
| 0.00 | 1.76 | 0.00 | 0.89 | -9.12 | 24.39 | 10.27 | 253.56 | 0.1844 | 1021.0 | 771.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.45 | 24.31 | 10.19 | 251.70 | 0.1846 | 801.0 | 617.8 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -8.91 | 23.99 | 9.86 | 254.08 | 0.1768 | 1068.0 | 908.2 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -11.56 | 24.04 | 9.91 | 240.78 | 0.1941 | 1014.0 | 698.8 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.16 | 23.93 | 9.81 | 252.68 | 0.1770 | 1084.0 | 871.1 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -8.05 | 23.72 | 9.60 | 258.67 | 0.1691 | 661.0 | 480.4 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -9.01 | 23.68 | 9.56 | 253.10 | 0.1722 | 1063.0 | 895.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.56 | 23.67 | 9.55 | 255.64 | 0.1701 | 1007.0 | 723.8 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -8.74 | 23.49 | 9.37 | 254.33 | 0.1678 | 789.0 | 719.8 | |
| 3.17 | 7.31 | 1.59 | 3.67 | -9.74 | 23.30 | 9.18 | 248.35 | 0.1699 | 1185.1 | 838.2 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -11.31 | 22.88 | 8.76 | 239.03 | 0.1749 | 780.0 | 563.4 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -9.30 | 22.74 | 8.61 | 249.75 | 0.1582 | 758.0 | 631.3 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -10.56 | 22.58 | 8.46 | 242.12 | 0.1643 | 817.0 | 639.2 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -9.27 | 22.52 | 8.40 | 249.46 | 0.1546 | 831.0 | 735.5 | |
| 0.00 | 2.11 | 0.00 | 1.06 | -10.74 | 22.43 | 8.31 | 240.71 | 0.1635 | 1089.0 | 818.0 | |
| 1.41 | 4.49 | 0.71 | 2.25 | -9.51 | 22.31 | 8.19 | 247.50 | 0.1527 | 1254.8 | 933.2 | |
| 0.00 | 2.29 | 0.00 | 1.15 | -10.51 | 22.09 | 7.96 | 241.02 | 0.1564 | 1014.0 | 876.2 | |
| 0.00 | 5.28 | 0.00 | 2.65 | -10.42 | 21.75 | 7.62 | 240.48 | 0.1506 | 883.0 | 855.5 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -10.51 | 21.53 | 7.41 | 239.25 | 0.1482 | 542.0 | 586.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.40 | 21.45 | 7.32 | 245.98 | 0.1383 | 1080.0 | 875.7 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -10.49 | 21.32 | 7.19 | 238.69 | 0.1448 | 972.0 | 768.8 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.40 | 20.89 | 6.76 | 237.66 | 0.1377 | 914.0 | 749.4 | |
| 0.00 | 8.54 | 0.00 | 4.28 | -11.91 | 20.64 | 6.52 | 228.14 | 0.1498 | -745.0 | -611.9 | |
| 0.00 | 3.35 | 0.00 | 1.67 | -11.37 | 20.45 | 6.32 | 230.16 | 0.1412 | -891.0 | -735.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.70 | 20.24 | 6.11 | 227.42 | 0.1423 | -821.0 | -603.9 | |
| 0.00 | 3.52 | 0.00 | 1.76 | -11.35 | 19.77 | 5.64 | 227.12 | 0.1322 | -950.0 | -755.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -11.80 | 18.98 | 4.85 | 220.38 | 0.1284 | -828.0 | -672.4 | |
| 0.00 | 4.84 | 0.00 | 2.42 | -11.50 | 18.79 | 4.66 | 220.85 | 0.1223 | -677.0 | -720.6 | |
| 0.00 | 2.02 | 0.00 | 1.01 | -11.60 | 18.14 | 4.02 | 216.24 | 0.1167 | -907.0 | -713.5 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.75 | 18.02 | 3.90 | 214.65 | 0.1176 | -940.0 | -782.5 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -9.68 | 17.18 | 3.05 | 221.10 | 0.0802 | -935.0 | -756.5 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -13.14 | 16.99 | 2.87 | 202.05 | 0.1304 | -1025.0 | -809.6 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -12.21 | 16.89 | 2.77 | 204.38 | 0.1148 | -889.0 | -627.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -14.39 | 16.88 | 2.76 | 198.20 | 0.1500 | -748.0 | -621.1 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -9.95 | 16.81 | 2.69 | 215.46 | 0.0800 | -802.0 | -664.6 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -10.43 | 16.66 | 2.54 | 210.75 | 0.0856 | -840.0 | -701.0 | |
| 1.94 | 3.17 | 0.96 | 1.57 | -9.65 | 16.51 | 2.38 | 214.49 | 0.0727 | -1071.2 | -843.3 | |
| 9.51 | 15.05 | 4.72 | 7.48 | -10.13 | 16.45 | 2.32 | 210.41 | 0.0792 | -1162.2 | -849.7 | |
| 0.79 | 281.53 | 0.39 | 140.25 | -11.91 | 16.34 | 2.21 | 200.91 | 0.1063 | -842.1 | -481.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -13.90 | 16.04 | 1.92 | 193.69 | 0.1380 | -425.0 | -329.5 | |
| 4.93 | -63.00 | 2.46 | -63.00 | -12.33 | 15.94 | 1.82 | 196.25 | 0.1111 | -1100.1 | 999999 | |
| 18.84 | -63.00 | 9.38 | -63.00 | -11.94 | 15.91 | 1.78 | 197.03 | 0.1044 | -1358.8 | 999999 | |
| 3.17 | -63.00 | 1.58 | -63.00 | -12.48 | 15.88 | 1.76 | 195.37 | 0.1134 | -1014.8 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.13 | 15.81 | 1.68 | 203.04 | 0.0742 | -774.0 | -616.1 | |
| 7.57 | -63.00 | 3.77 | -63.00 | -11.85 | 15.54 | 1.41 | 193.88 | 0.1012 | -1360.2 | 999999 | |
| 21.48 | -63.00 | 10.70 | -63.00 | -12.33 | 15.54 | 1.42 | 192.81 | 0.1094 | -1184.3 | 999999 | |
| 5.81 | -63.00 | 2.89 | -63.00 | -12.00 | 15.39 | 1.26 | 192.11 | 0.1032 | -1220.1 | 999999 | |
| 1.23 | 7.57 | 0.61 | 3.76 | -10.20 | 15.38 | 1.26 | 197.36 | 0.0726 | -1162.9 | -866.6 | |
| 1.41 | -63.00 | 0.70 | -63.00 | -11.70 | 15.23 | 1.11 | 191.25 | 0.0975 | -1065.6 | 999999 | |
| 0.00 | 2.64 | 0.00 | 1.31 | -10.80 | 15.17 | 1.04 | 192.69 | 0.0819 | -1331.0 | -1044.0 | |
| 0.00 | 3.26 | 0.00 | 1.62 | -10.53 | 15.17 | 1.04 | 193.47 | 0.0772 | -1074.0 | -979.7 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.08 | 15.01 | 0.89 | 197.15 | 0.0522 | -779.0 | -627.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.74 | 14.80 | 0.68 | 188.43 | 0.0797 | -786.0 | -579.1 | |
| 0.00 | 1.50 | 0.00 | 0.74 | -10.02 | 14.35 | 0.22 | 183.29 | 0.0663 | -1064.0 | -900.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
