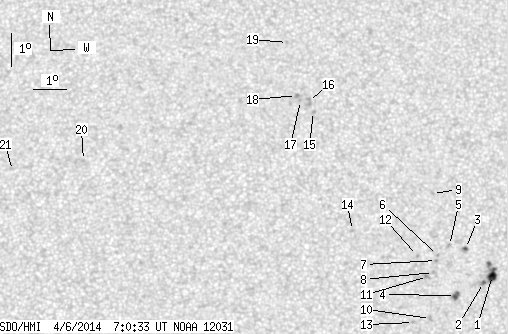

SDO HMI 2014-04-06 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.68 | 50.08 | 5.05 | 26.03 | 4.05 | 27.92 | 13.79 | 306.94 | 0.3028 | -158.4 | -93.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.69 | 13.03 | 3.50 | 6.81 | 2.79 | 30.44 | 16.31 | 298.55 | 0.3208 | -1067.9 | -694.8 | |
| 0.00 | 2.02 | 0.00 | 1.06 | 2.57 | 30.15 | 16.03 | 298.38 | 0.3148 | -1175.0 | -847.4 | |
| 0.79 | 1.85 | 0.41 | 0.96 | 3.59 | 29.61 | 15.48 | 302.05 | 0.3157 | -772.0 | -623.8 | |
| 2.20 | 4.23 | 1.14 | 2.19 | 2.15 | 29.27 | 15.15 | 298.57 | 0.2986 | -987.1 | -834.2 | |
| 0.00 | 1.94 | 0.00 | 1.01 | 3.67 | 29.11 | 14.98 | 303.13 | 0.3095 | 796.0 | 599.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 3.35 | 28.73 | 14.60 | 302.95 | 0.3013 | 855.0 | 638.9 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 3.20 | 28.70 | 14.57 | 302.58 | 0.2994 | 970.0 | 747.6 | |
| 0.00 | 1.67 | 0.00 | 0.87 | 2.83 | 28.60 | 14.47 | 301.72 | 0.2947 | 732.0 | 447.1 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 5.24 | 28.61 | 14.49 | 308.14 | 0.3182 | -746.0 | -655.8 | |
| 0.00 | 2.64 | 0.00 | 1.36 | 1.44 | 28.49 | 14.36 | 297.69 | 0.2813 | -843.0 | -698.9 | |
| 0.00 | 2.55 | 0.00 | 1.32 | 2.71 | 28.41 | 14.28 | 301.69 | 0.2909 | -913.0 | -775.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 3.34 | 28.11 | 13.98 | 304.07 | 0.2925 | -640.0 | -493.2 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 1.30 | 27.96 | 13.84 | 298.18 | 0.2725 | -664.0 | -524.9 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 4.05 | 26.11 | 11.99 | 310.39 | 0.2733 | -893.0 | -574.9 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 7.68 | 24.99 | 10.87 | 321.93 | 0.3044 | 822.0 | 715.6 | |
| 0.00 | 4.75 | 0.00 | 2.47 | 7.99 | 24.85 | 10.72 | 322.92 | 0.3070 | 492.0 | 668.3 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 8.01 | 24.60 | 10.48 | 323.61 | 0.3049 | 880.0 | 762.7 | |
| 0.00 | 2.02 | 0.00 | 1.05 | 8.16 | 24.48 | 10.36 | 324.22 | 0.3058 | 868.0 | 730.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 9.81 | 24.26 | 10.13 | 327.76 | 0.3263 | 764.0 | 564.8 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 6.08 | 17.96 | 3.83 | 342.69 | 0.2242 | 679.0 | 586.9 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 5.76 | 15.81 | 1.68 | 351.99 | 0.2109 | 157.0 | 231.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
