SDO HMI 2014-04-06 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.05 | 465.05 | 43.63 | 232.66 | -11.39 | 18.15 | 4.57 | 214.05 | 0.1322 | -100.8 | -264.9 | |
|
previous
or next observation for the same group /

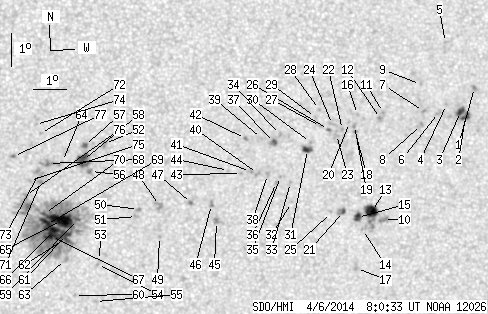

back to the solar disc SDO HMI 2014-04-06 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.46 | 0.00 | 1.26 | -7.75 | 28.47 | 14.89 | 263.26 | 0.2576 | 901.0 | 735.5 | |
| 3.17 | 10.65 | 1.62 | 5.45 | -8.63 | 28.22 | 14.64 | 259.73 | 0.2551 | 966.0 | 814.8 | |
| 3.61 | -2.00 | 1.85 | -2.00 | -8.48 | 28.06 | 14.48 | 260.21 | 0.2521 | 1124.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -8.28 | 27.61 | 14.03 | 260.77 | 0.2442 | 772.0 | 634.6 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -6.43 | 27.52 | 13.94 | 268.44 | 0.2406 | 685.0 | 555.9 | |
| 0.00 | 3.26 | 0.00 | 1.66 | -8.53 | 27.37 | 13.79 | 259.62 | 0.2408 | 606.0 | 652.3 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -8.51 | 26.90 | 13.32 | 259.40 | 0.2329 | 1021.0 | 811.2 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -8.90 | 26.85 | 13.27 | 257.71 | 0.2332 | 918.0 | 784.8 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -7.70 | 26.78 | 13.20 | 262.82 | 0.2292 | 773.0 | 632.9 | |
| 0.00 | 5.37 | 0.00 | 2.73 | -11.79 | 25.78 | 12.20 | 244.40 | 0.2305 | 864.0 | 795.5 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -8.57 | 25.66 | 12.08 | 258.23 | 0.2124 | 907.0 | 746.9 | |
| 0.00 | 2.11 | 0.00 | 1.07 | -8.75 | 25.57 | 11.99 | 257.30 | 0.2115 | 1012.0 | 884.9 | |
| 11.09 | 20.60 | 5.63 | 10.47 | -11.55 | 25.39 | 11.82 | 244.67 | 0.2230 | 1210.7 | 785.0 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -12.10 | 25.14 | 11.56 | 241.95 | 0.2230 | 639.0 | 548.9 | |
| 3.70 | 5.72 | 1.88 | 2.90 | -11.74 | 24.96 | 11.39 | 243.09 | 0.2177 | 1101.5 | 767.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.65 | 24.86 | 11.28 | 257.13 | 0.1992 | 766.0 | 650.2 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -13.28 | 25.00 | 11.42 | 237.08 | 0.2306 | 846.0 | 715.6 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -9.16 | 24.81 | 11.23 | 254.57 | 0.2004 | 980.0 | 818.5 | |
| 0.00 | 2.20 | 0.00 | 1.11 | -8.98 | 24.77 | 11.19 | 255.41 | 0.1991 | 1023.0 | 880.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -8.89 | 24.62 | 11.04 | 255.66 | 0.1961 | 823.0 | 732.2 | |
| 1.14 | 5.28 | 0.58 | 2.67 | -11.57 | 24.52 | 10.94 | 242.96 | 0.2097 | 1087.1 | 852.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -9.11 | 24.41 | 10.83 | 254.34 | 0.1935 | 1001.0 | 847.2 | |
| 0.00 | 4.05 | 0.00 | 2.04 | -9.26 | 24.22 | 10.65 | 253.33 | 0.1912 | 717.0 | 703.6 | |
| 0.00 | 3.43 | 0.00 | 1.73 | -8.96 | 24.09 | 10.51 | 254.68 | 0.1877 | 988.0 | 768.6 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -11.61 | 24.15 | 10.57 | 242.02 | 0.2044 | 892.0 | 668.6 | |
| 0.35 | 1.85 | 0.18 | 0.93 | -9.11 | 23.97 | 10.39 | 253.73 | 0.1864 | 1018.2 | 765.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -9.03 | 23.72 | 10.15 | 253.84 | 0.1820 | 1006.0 | 768.5 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -8.52 | 23.68 | 10.10 | 256.54 | 0.1792 | 952.0 | 788.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -8.76 | 23.56 | 9.98 | 255.07 | 0.1782 | 868.0 | 721.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.51 | 23.43 | 9.85 | 250.79 | 0.1795 | 939.0 | 768.2 | |
| 3.17 | 5.72 | 1.60 | 2.88 | -9.73 | 23.34 | 9.76 | 249.51 | 0.1793 | 1131.8 | 827.3 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -11.33 | 22.89 | 9.32 | 240.40 | 0.1834 | 737.0 | 567.9 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -10.73 | 22.85 | 9.27 | 243.26 | 0.1780 | 930.0 | 774.2 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -9.29 | 22.50 | 8.92 | 250.37 | 0.1632 | 870.0 | 733.9 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.55 | 22.53 | 8.95 | 243.41 | 0.1719 | 914.0 | 812.9 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -10.73 | 22.41 | 8.83 | 242.16 | 0.1714 | 1113.0 | 857.9 | |
| 1.32 | 4.14 | 0.66 | 2.08 | -9.53 | 22.32 | 8.74 | 248.59 | 0.1617 | 1281.7 | 966.4 | |
| 0.00 | 2.91 | 0.00 | 1.46 | -10.50 | 22.13 | 8.55 | 242.68 | 0.1653 | 1034.0 | 811.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.42 | 21.92 | 8.34 | 248.40 | 0.1546 | 930.0 | 790.8 | |
| 0.00 | 2.46 | 0.00 | 1.24 | -10.47 | 21.82 | 8.24 | 241.99 | 0.1604 | 898.0 | 769.1 | |
| 0.00 | 2.55 | 0.00 | 1.28 | -10.41 | 21.60 | 8.02 | 241.70 | 0.1566 | 954.0 | 818.6 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -9.42 | 21.43 | 7.85 | 247.19 | 0.1468 | 1080.0 | 878.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -10.48 | 21.33 | 7.75 | 240.51 | 0.1530 | 1017.0 | 790.6 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -10.39 | 20.92 | 7.35 | 239.74 | 0.1463 | 919.0 | 656.5 | |
| 0.00 | 2.91 | 0.00 | 1.46 | -11.93 | 20.59 | 7.01 | 230.05 | 0.1566 | -845.0 | -774.4 | |
| 0.00 | 2.91 | 0.00 | 1.46 | -11.42 | 20.42 | 6.85 | 232.04 | 0.1489 | -884.0 | -777.0 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -11.40 | 19.81 | 6.23 | 229.57 | 0.1404 | -973.0 | -817.4 | |
| 0.00 | 4.93 | 0.00 | 2.46 | -11.47 | 18.83 | 5.25 | 224.36 | 0.1288 | -843.0 | -769.9 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -12.40 | 18.84 | 5.26 | 219.71 | 0.1409 | -720.0 | -569.7 | |
| 0.00 | 2.20 | 0.00 | 1.10 | -11.59 | 18.18 | 4.60 | 219.99 | 0.1229 | -905.0 | -741.7 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -11.80 | 18.12 | 4.55 | 218.54 | 0.1251 | -740.0 | -620.6 | |
| 0.00 | 3.26 | 0.00 | 1.62 | -9.61 | 17.12 | 3.54 | 225.81 | 0.0853 | -995.0 | -783.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -13.14 | 17.00 | 3.43 | 205.79 | 0.1344 | -999.0 | -771.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -13.26 | 16.94 | 3.37 | 205.01 | 0.1358 | -913.0 | -664.0 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -14.38 | 16.90 | 3.32 | 201.56 | 0.1533 | -849.0 | -527.6 | |
| 0.00 | 3.17 | 0.00 | 1.58 | -10.46 | 16.70 | 3.12 | 215.95 | 0.0916 | -845.0 | -728.4 | |
| 1.06 | 2.82 | 0.52 | 1.40 | -9.68 | 16.51 | 2.93 | 219.94 | 0.0789 | -1140.2 | -909.5 | |
| 8.45 | 14.88 | 4.20 | 7.40 | -10.13 | 16.45 | 2.87 | 215.95 | 0.0845 | -1163.2 | -879.9 | |
| 1.14 | 273.60 | 0.57 | 136.34 | -11.91 | 16.31 | 2.74 | 205.27 | 0.1099 | -900.6 | -522.1 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -14.20 | 16.24 | 2.67 | 198.00 | 0.1465 | -718.0 | -535.5 | |
| 3.70 | -59.00 | 1.84 | -59.00 | -12.36 | 15.98 | 2.40 | 200.97 | 0.1149 | -1076.1 | 999999 | |
| 1.32 | -59.00 | 0.66 | -59.00 | -12.48 | 15.95 | 2.37 | 200.36 | 0.1167 | -997.9 | 999999 | |
| 0.00 | 2.55 | 0.00 | 1.27 | -13.11 | 15.95 | 2.38 | 198.62 | 0.1271 | -793.0 | -676.8 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.16 | 15.84 | 2.26 | 209.56 | 0.0792 | -870.0 | -668.1 | |
| 20.86 | -59.00 | 10.39 | -59.00 | -11.94 | 15.82 | 2.24 | 201.07 | 0.1071 | -1413.7 | 999999 | |
| 5.90 | -59.00 | 2.94 | -59.00 | -12.24 | 15.58 | 2.00 | 198.06 | 0.1106 | -1388.4 | 999999 | |
| 8.54 | -59.00 | 4.26 | -59.00 | -12.42 | 15.52 | 1.94 | 197.06 | 0.1133 | -1146.8 | 999999 | |
| 0.00 | 7.57 | 0.00 | 3.76 | -10.22 | 15.42 | 1.84 | 204.39 | 0.0768 | -1184.0 | -909.1 | |
| 8.27 | -59.00 | 4.12 | -59.00 | -12.06 | 15.36 | 1.79 | 196.70 | 0.1065 | -1230.1 | 999999 | |
| 0.26 | -59.00 | 0.13 | -59.00 | -11.73 | 15.30 | 1.72 | 197.08 | 0.1007 | -1142.7 | 999999 | |
| 0.00 | 2.55 | 0.00 | 1.27 | -10.79 | 15.17 | 1.60 | 198.98 | 0.0845 | -1327.0 | -1074.7 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.32 | 15.17 | 1.59 | 206.94 | 0.0607 | -1015.0 | -699.1 | |
| 0.00 | 6.16 | 0.00 | 3.06 | -10.49 | 15.14 | 1.56 | 199.86 | 0.0794 | -899.0 | -863.5 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.05 | 15.02 | 1.44 | 206.74 | 0.0553 | -827.0 | -575.7 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.73 | 14.84 | 1.26 | 195.38 | 0.0818 | -845.0 | -685.6 | |
| 0.00 | 2.73 | 0.00 | 1.36 | -11.19 | 14.72 | 1.14 | 192.72 | 0.0889 | -1020.0 | -824.5 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -10.01 | 14.35 | 0.77 | 191.36 | 0.0675 | -1211.0 | -951.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
