SDO HMI 2014-04-06 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.34 | 83.36 | 9.86 | 47.35 | 17.74 | 30.47 | 16.89 | 325.49 | 0.4902 | -605.1 | -343.8 | |
|
previous
or next observation for the same group /

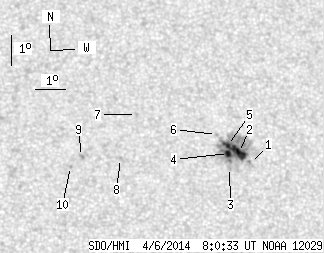

back to the solar disc SDO HMI 2014-04-06 08:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.73 | 0.00 | 1.55 | 17.38 | 31.29 | 17.71 | 323.73 | 0.4928 | -842.0 | -696.4 | |
| 10.30 | 71.04 | 5.86 | 40.42 | 17.73 | 30.93 | 17.35 | 324.71 | 0.4938 | -1129.9 | -430.3 | |
| 0.00 | 1.94 | 0.00 | 1.10 | 17.23 | 30.58 | 17.01 | 324.63 | 0.4846 | -479.0 | -415.1 | |
| 3.43 | -2.00 | 1.95 | -2.00 | 17.68 | 30.60 | 17.02 | 325.18 | 0.4903 | -1289.7 | 999999 | |
| 3.61 | -2.00 | 2.05 | -2.00 | 17.95 | 30.59 | 17.01 | 325.51 | 0.4935 | -988.7 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 18.30 | 30.26 | 16.68 | 326.44 | 0.4951 | -803.0 | -611.7 | |
| 0.00 | 1.41 | 0.00 | 0.80 | 18.88 | 27.69 | 14.11 | 331.30 | 0.4824 | 689.0 | 581.1 | |
| 0.00 | 1.58 | 0.00 | 0.88 | 17.42 | 27.05 | 13.47 | 330.84 | 0.4580 | 671.0 | 478.7 | |
| 0.00 | 2.20 | 0.00 | 1.22 | 17.45 | 25.79 | 12.21 | 333.19 | 0.4494 | 970.0 | 821.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 17.12 | 25.42 | 11.84 | 333.55 | 0.4421 | 754.0 | 588.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
