SDO HMI 2014-04-06 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.17 | 0.00 | 8.01 | -17.83 | 327.35 | -45.68 | 108.77 | 0.7175 | 351.0 | 239.7 | |
|
previous
or next observation for the same group /

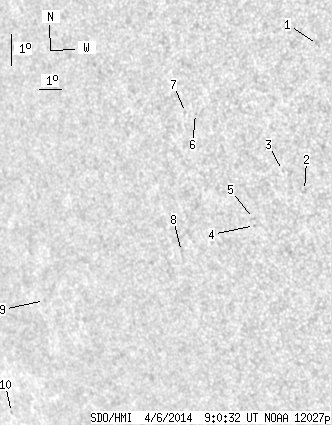

back to the solar disc SDO HMI 2014-04-06 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.76 | 0.00 | 1.12 | -13.19 | 333.97 | -39.06 | 103.29 | 0.6326 | 607.0 | 436.6 | |
| 0.00 | 2.29 | 0.00 | 1.51 | -17.56 | 332.43 | -40.60 | 109.64 | 0.6611 | 590.0 | 484.5 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -16.89 | 331.69 | -41.34 | 108.45 | 0.6686 | 496.0 | 469.4 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -18.47 | 330.04 | -42.99 | 110.34 | 0.6921 | 538.0 | 483.8 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -18.26 | 330.06 | -42.97 | 110.04 | 0.6913 | 554.0 | 474.5 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -14.91 | 328.50 | -44.53 | 104.95 | 0.7038 | 602.0 | 561.0 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -14.84 | 328.08 | -44.95 | 104.80 | 0.7087 | 433.0 | 360.8 | |
| 0.00 | 1.41 | 0.00 | 1.02 | -19.02 | 326.58 | -46.45 | 110.29 | 0.7329 | 381.0 | 231.8 | |
| 0.00 | 1.32 | 0.00 | 1.11 | -19.97 | 319.34 | -53.69 | 110.23 | 0.8094 | -369.0 | -323.8 | |
| 0.00 | 0.97 | 0.00 | 0.90 | -23.19 | 315.56 | -57.47 | 113.56 | 0.8475 | -322.0 | -248.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
