SDO HMI 2014-04-06 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.41 | 29.92 | 0.70 | 14.95 | -8.24 | 7.18 | -5.86 | 116.86 | 0.1140 | 113.6 | -153.5 | |
|
previous
or next observation for the same group /

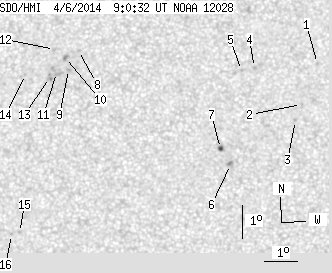

back to the solar disc SDO HMI 2014-04-06 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.44 | -7.19 | 12.95 | -0.08 | 175.45 | 0.0168 | 853.0 | 619.6 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.41 | 12.47 | -0.56 | 165.69 | 0.0395 | 850.0 | 623.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -8.89 | 12.28 | -0.75 | 164.52 | 0.0485 | 969.0 | 745.6 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -7.30 | 11.05 | -1.98 | 118.65 | 0.0393 | 833.0 | 732.0 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -7.39 | 10.66 | -2.38 | 116.29 | 0.0461 | 822.0 | 538.6 | |
| 0.00 | 3.35 | 0.00 | 1.66 | -10.21 | 10.30 | -2.73 | 145.97 | 0.0843 | 1018.0 | 758.2 | |
| 1.41 | 2.55 | 0.70 | 1.27 | -9.72 | 10.00 | -3.03 | 139.53 | 0.0807 | 1080.2 | 850.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -6.74 | 5.72 | -7.31 | 94.40 | 0.1274 | -946.0 | -696.5 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -7.30 | 5.40 | -7.63 | 98.50 | 0.1338 | -1050.0 | -786.5 | |
| 0.00 | 2.64 | 0.00 | 1.32 | -6.94 | 5.32 | -7.71 | 95.74 | 0.1345 | -1159.0 | -908.8 | |
| 0.00 | 5.46 | 0.00 | 2.73 | -7.39 | 5.03 | -8.00 | 98.75 | 0.1402 | -551.0 | -793.1 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -6.70 | 4.99 | -8.04 | 93.79 | 0.1399 | -852.0 | -659.1 | |
| 0.00 | 3.17 | 0.00 | 1.59 | -7.53 | 4.82 | -8.21 | 99.56 | 0.1443 | -769.0 | -786.7 | |
| 0.00 | 0.44 | 0.00 | 0.22 | -7.43 | 4.09 | -8.95 | 98.22 | 0.1565 | -724.0 | -500.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.17 | 3.76 | -9.27 | 123.69 | 0.1901 | 847.0 | 719.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.23 | 3.51 | -9.52 | 123.26 | 0.1942 | 887.0 | 639.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
