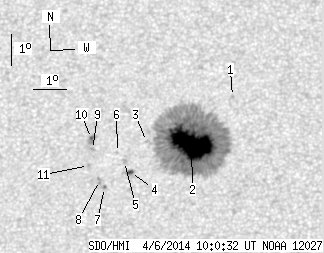

SDO HMI 2014-04-06 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.03 | 426.63 | 38.74 | 223.44 | 12.60 | 13.57 | 1.08 | 356.75 | 0.3248 | -1118.5 | -381.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.74 | 14.12 | 14.97 | 2.48 | 353.11 | 0.3517 | 792.0 | 577.9 | |
| 72.00 | 403.66 | 37.69 | 211.45 | 12.62 | 13.69 | 1.20 | 356.37 | 0.3251 | -1494.2 | -425.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 12.69 | 12.30 | -0.18 | 0.54 | 0.3256 | -673.0 | -574.3 | |
| 1.41 | 3.87 | 0.73 | 2.02 | 11.71 | 11.81 | -0.67 | 2.13 | 0.3095 | -911.8 | -678.1 | |
| 0.00 | 2.46 | 0.00 | 1.29 | 12.06 | 11.63 | -0.85 | 2.66 | 0.3154 | -771.0 | -556.5 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 12.34 | 11.41 | -1.07 | 3.28 | 0.3203 | -542.0 | -434.7 | |
| 0.00 | 1.76 | 0.00 | 0.91 | 11.24 | 11.02 | -1.46 | 4.78 | 0.3024 | 967.0 | 794.0 | |
| 0.00 | 2.64 | 0.00 | 1.37 | 11.46 | 10.87 | -1.62 | 5.21 | 0.3063 | 610.0 | 641.3 | |
| 0.00 | 1.94 | 0.00 | 1.01 | 12.44 | 10.65 | -1.84 | 5.59 | 0.3229 | 823.0 | 715.4 | |
| 0.62 | 5.37 | 0.32 | 2.81 | 12.79 | 10.61 | -1.87 | 5.58 | 0.3287 | 1069.7 | 882.5 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 11.93 | 10.53 | -1.96 | 6.12 | 0.3148 | 968.0 | 743.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
