SDO HMI 2014-04-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.17 | 419.65 | 31.82 | 210.54 | -11.36 | 18.22 | 6.28 | 224.43 | 0.1492 | -95.9 | -279.0 | |
|
previous
or next observation for the same group /

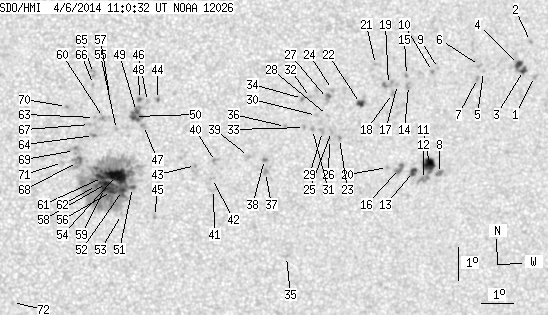

back to the solar disc SDO HMI 2014-04-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.46 | 0.00 | 1.28 | -8.74 | 28.76 | 16.82 | 260.39 | 0.2914 | 772.0 | 588.9 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -7.69 | 28.59 | 16.65 | 263.94 | 0.2868 | 806.0 | 686.9 | |
| 2.46 | 10.65 | 1.27 | 5.50 | -8.57 | 28.40 | 16.47 | 260.82 | 0.2852 | 919.3 | 738.3 | |
| 3.17 | -3.00 | 1.64 | -3.00 | -8.39 | 28.24 | 16.30 | 261.37 | 0.2821 | 1098.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.63 | 27.14 | 15.21 | 259.98 | 0.2645 | 716.0 | 571.2 | |
| 0.00 | 2.29 | 0.00 | 1.17 | -8.45 | 27.01 | 15.07 | 260.58 | 0.2619 | 900.0 | 765.8 | |
| 0.00 | 2.02 | 0.00 | 1.04 | -8.85 | 26.96 | 15.03 | 259.07 | 0.2621 | 788.0 | 723.2 | |
| 0.00 | 3.96 | 0.00 | 2.03 | -11.73 | 25.90 | 13.96 | 247.23 | 0.2574 | 865.0 | 776.6 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -8.58 | 25.73 | 13.79 | 259.38 | 0.2410 | 812.0 | 603.1 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -8.67 | 25.55 | 13.61 | 258.87 | 0.2382 | 1016.0 | 862.3 | |
| 10.47 | 14.79 | 5.36 | 7.56 | -11.47 | 25.57 | 13.63 | 247.76 | 0.2507 | 1175.7 | 831.4 | |
| 0.00 | 6.87 | 0.00 | 3.51 | -11.92 | 25.40 | 13.47 | 245.82 | 0.2509 | 885.0 | 780.0 | |
| 3.26 | 5.02 | 1.66 | 2.56 | -11.69 | 25.08 | 13.14 | 246.22 | 0.2444 | 1075.8 | 786.3 | |
| 0.00 | 2.64 | 0.00 | 1.34 | -9.11 | 24.81 | 12.88 | 256.44 | 0.2274 | 975.0 | 882.8 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -8.81 | 24.74 | 12.80 | 257.68 | 0.2252 | 996.0 | 828.5 | |
| 0.00 | 6.07 | 0.00 | 3.10 | -11.61 | 24.63 | 12.70 | 245.85 | 0.2370 | 1037.0 | 933.1 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -9.09 | 24.47 | 12.53 | 256.22 | 0.2217 | 1012.0 | 742.9 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -9.36 | 24.32 | 12.39 | 254.86 | 0.2203 | 771.0 | 695.5 | |
| 0.00 | 5.54 | 0.00 | 2.81 | -9.09 | 24.19 | 12.25 | 255.93 | 0.2171 | 770.0 | 806.6 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -11.59 | 24.26 | 12.32 | 245.33 | 0.2310 | 1059.0 | 772.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -8.50 | 23.77 | 11.83 | 258.28 | 0.2081 | 1034.0 | 795.4 | |
| 2.90 | 4.84 | 1.47 | 2.45 | -9.68 | 23.34 | 11.40 | 252.23 | 0.2056 | 1153.7 | 850.8 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -10.75 | 22.72 | 10.79 | 246.29 | 0.2018 | 932.0 | 827.1 | |
| 0.00 | 2.29 | 0.00 | 1.15 | -9.28 | 22.46 | 10.52 | 253.00 | 0.1894 | 775.0 | 595.4 | |
| 0.00 | 2.29 | 0.00 | 1.16 | -10.54 | 22.47 | 10.53 | 246.78 | 0.1965 | 779.0 | 716.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -10.78 | 22.42 | 10.48 | 245.53 | 0.1972 | 1071.0 | 811.5 | |
| 0.00 | 4.84 | 0.00 | 2.44 | -9.55 | 22.31 | 10.38 | 251.39 | 0.1883 | 1176.0 | 929.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -10.06 | 22.33 | 10.39 | 248.85 | 0.1913 | 868.0 | 622.4 | |
| 0.00 | 3.08 | 0.00 | 1.55 | -10.55 | 22.19 | 10.25 | 246.22 | 0.1921 | 964.0 | 793.4 | |
| 0.00 | 1.76 | 0.00 | 0.89 | -10.07 | 21.99 | 10.05 | 248.21 | 0.1860 | 864.0 | 656.6 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -10.49 | 21.88 | 9.94 | 245.87 | 0.1869 | 971.0 | 898.1 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -9.53 | 21.79 | 9.85 | 250.64 | 0.1797 | 862.0 | 682.6 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -10.43 | 21.63 | 9.69 | 245.63 | 0.1826 | 958.0 | 766.2 | |
| 0.00 | 1.94 | 0.00 | 0.97 | -9.56 | 21.54 | 9.61 | 250.02 | 0.1759 | 1065.0 | 878.4 | |
| 0.00 | 2.55 | 0.00 | 1.29 | -14.34 | 21.21 | 9.27 | 227.60 | 0.2123 | 861.0 | 613.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -10.41 | 21.04 | 9.11 | 244.43 | 0.1733 | 961.0 | 750.8 | |
| 0.00 | 3.08 | 0.00 | 1.55 | -11.81 | 20.46 | 8.53 | 235.83 | 0.1762 | -926.0 | -743.2 | |
| 0.00 | 2.11 | 0.00 | 1.06 | -11.42 | 20.42 | 8.48 | 237.62 | 0.1720 | -918.0 | -806.9 | |
| 0.00 | 2.38 | 0.00 | 1.19 | -11.33 | 19.92 | 7.99 | 236.51 | 0.1641 | -800.0 | -672.8 | |
| 0.00 | 3.43 | 0.00 | 1.72 | -11.50 | 18.91 | 6.97 | 232.07 | 0.1515 | -663.0 | -752.1 | |
| 0.00 | 3.26 | 0.00 | 1.63 | -12.34 | 18.87 | 6.93 | 227.67 | 0.1602 | -548.0 | -599.7 | |
| 0.00 | 2.02 | 0.00 | 1.02 | -12.01 | 18.83 | 6.89 | 229.12 | 0.1560 | -779.0 | -637.3 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -11.62 | 18.30 | 6.36 | 228.85 | 0.1448 | -859.0 | -654.0 | |
| 0.35 | 1.41 | 0.18 | 0.70 | -9.65 | 17.10 | 5.16 | 235.80 | 0.1077 | -998.0 | -817.5 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -13.17 | 17.06 | 5.13 | 215.61 | 0.1501 | -974.0 | -821.4 | |
| 0.00 | 2.64 | 0.00 | 1.32 | -9.71 | 16.79 | 4.85 | 233.70 | 0.1040 | -633.0 | -536.1 | |
| 0.00 | 2.73 | 0.00 | 1.36 | -10.44 | 16.68 | 4.74 | 227.76 | 0.1103 | -845.0 | -739.8 | |
| 0.53 | 1.76 | 0.26 | 0.88 | -9.65 | 16.55 | 4.61 | 232.76 | 0.1000 | -1012.2 | -900.1 | |
| 1.58 | 15.93 | 0.79 | 7.93 | -10.02 | 16.46 | 4.52 | 229.42 | 0.1027 | -1149.3 | -876.5 | |
| 3.87 | -49.00 | 1.93 | -49.00 | -10.17 | 16.40 | 4.46 | 227.94 | 0.1037 | -1220.4 | 999999 | |
| 1.14 | 225.49 | 0.57 | 112.54 | -12.30 | 16.37 | 4.43 | 215.39 | 0.1310 | -820.6 | -564.8 | |
| 2.29 | -51.00 | 1.14 | -51.00 | -12.40 | 16.06 | 4.13 | 213.09 | 0.1293 | -1010.6 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -13.12 | 16.04 | 4.11 | 210.08 | 0.1398 | -850.0 | -679.9 | |
| 18.57 | -51.00 | 9.27 | -51.00 | -11.95 | 15.87 | 3.94 | 213.88 | 0.1210 | -1405.1 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.56 | 15.85 | 3.92 | 221.50 | 0.1018 | -911.0 | -722.2 | |
| 2.02 | -51.00 | 1.01 | -51.00 | -12.43 | 15.72 | 3.79 | 210.77 | 0.1267 | -1123.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.51 | 15.63 | 3.69 | 227.81 | 0.0862 | -891.0 | -698.7 | |
| 2.64 | -51.00 | 1.32 | -51.00 | -12.19 | 15.57 | 3.63 | 210.72 | 0.1217 | -1460.8 | 999999 | |
| 3.08 | -51.00 | 1.54 | -51.00 | -12.34 | 15.51 | 3.57 | 209.68 | 0.1235 | -1174.9 | 999999 | |
| 0.00 | 6.42 | 0.00 | 3.20 | -10.20 | 15.45 | 3.52 | 220.93 | 0.0926 | -935.0 | -726.1 | |
| 4.58 | -51.00 | 2.28 | -51.00 | -12.01 | 15.44 | 3.51 | 210.63 | 0.1180 | -1336.7 | 999999 | |
| 0.26 | -51.00 | 0.13 | -51.00 | -12.25 | 15.26 | 3.32 | 208.31 | 0.1201 | -1053.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.20 | 15.18 | 3.24 | 218.65 | 0.0896 | -832.0 | -713.2 | |
| 0.00 | 2.55 | 0.00 | 1.27 | -10.75 | 15.15 | 3.22 | 214.90 | 0.0968 | -1351.0 | -1060.9 | |
| 0.00 | 3.87 | 0.00 | 1.92 | -8.88 | 15.14 | 3.20 | 229.82 | 0.0725 | -572.0 | -654.0 | |
| 0.00 | 1.50 | 0.00 | 0.74 | -9.21 | 15.14 | 3.20 | 226.50 | 0.0764 | -889.0 | -709.5 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -10.41 | 15.03 | 3.09 | 215.90 | 0.0909 | -937.0 | -764.8 | |
| 0.00 | 11.09 | 0.00 | 5.52 | -11.56 | 14.67 | 2.73 | 206.64 | 0.1047 | -1059.0 | -786.2 | |
| 0.00 | 6.25 | 0.00 | 3.11 | -11.20 | 14.58 | 2.64 | 207.48 | 0.0984 | -752.0 | -758.3 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.88 | 14.32 | 2.39 | 212.72 | 0.0762 | -1051.0 | -918.4 | |
| 0.00 | 1.94 | 0.00 | 0.96 | -11.56 | 14.21 | 2.28 | 202.66 | 0.1014 | -493.0 | -335.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -15.80 | 12.69 | 0.75 | 184.34 | 0.1677 | -748.0 | -612.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
