SDO HMI 2014-04-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.41 | 19.54 | 0.70 | 9.73 | -8.36 | 7.93 | -4.00 | 142.62 | 0.0942 | -73.0 | -117.3 | |
|
previous
or next observation for the same group /

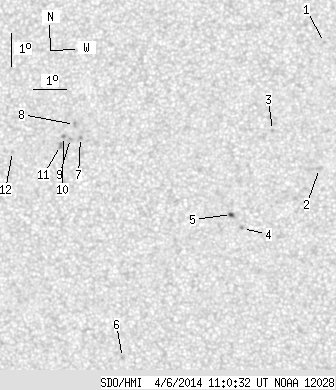

back to the solar disc SDO HMI 2014-04-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.52 | -4.54 | 12.89 | 0.95 | 330.60 | 0.0338 | 897.0 | 680.0 | |
| 0.00 | 2.64 | 0.00 | 1.31 | -8.32 | 12.74 | 0.80 | 200.71 | 0.0393 | 942.0 | 716.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -7.18 | 11.32 | -0.62 | 147.22 | 0.0199 | 951.0 | 683.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.12 | 10.39 | -1.54 | 158.69 | 0.0733 | 984.0 | 792.1 | |
| 1.41 | 2.82 | 0.70 | 1.40 | -9.69 | 10.06 | -1.87 | 151.98 | 0.0690 | 963.4 | 776.8 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -13.98 | 6.65 | -5.29 | 146.56 | 0.1630 | 833.0 | 561.0 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -7.34 | 5.50 | -6.44 | 100.30 | 0.1136 | -1000.0 | -904.2 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -6.95 | 5.32 | -6.62 | 96.69 | 0.1157 | -1106.0 | -877.1 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -7.37 | 5.19 | -6.74 | 100.09 | 0.1189 | -1044.0 | -861.2 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -7.30 | 4.98 | -6.96 | 99.30 | 0.1223 | -1084.0 | -908.3 | |
| 0.00 | 2.64 | 0.00 | 1.32 | -7.57 | 4.88 | -7.05 | 101.33 | 0.1247 | -1019.0 | -913.7 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -7.73 | 3.41 | -8.52 | 100.61 | 0.1501 | -882.0 | -744.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
