SDO HMI 2014-04-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.95 | 0.00 | 3.81 | -17.47 | 349.09 | -22.85 | 119.07 | 0.4274 | -790.4 | -633.8 | |
|
previous
or next observation for the same group /

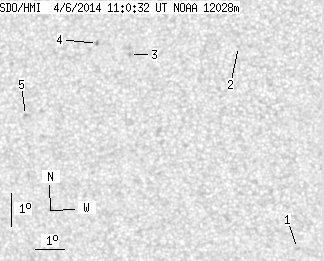

back to the solar disc SDO HMI 2014-04-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.76 | -22.02 | 353.94 | -18.00 | 134.05 | 0.4003 | -761.0 | -660.0 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -15.74 | 352.69 | -19.24 | 118.37 | 0.3621 | -761.0 | -573.3 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -15.85 | 349.04 | -22.90 | 115.11 | 0.4151 | -874.0 | -696.5 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -15.47 | 348.00 | -23.94 | 113.45 | 0.4281 | -772.0 | -654.3 | |
| 0.00 | 1.94 | 0.00 | 1.09 | -17.54 | 345.21 | -26.73 | 115.80 | 0.4783 | -784.0 | -583.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
