SDO HMI 2014-04-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.85 | 211.05 | 31.64 | 111.50 | 10.40 | 0.79 | -11.14 | 32.89 | 0.3465 | -184.6 | -176.4 | |
|
previous
or next observation for the same group /

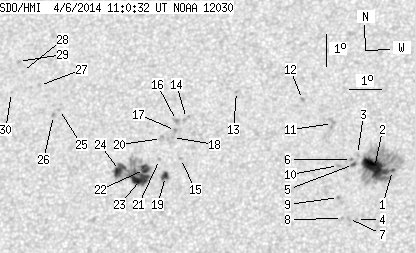

back to the solar disc SDO HMI 2014-04-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 104.03 | 0.46 | 54.25 | 10.11 | 4.58 | -7.36 | 24.22 | 0.3087 | -889.7 | -418.2 | |
| 28.08 | -1.00 | 14.64 | -1.00 | 10.21 | 4.02 | -7.91 | 25.67 | 0.3141 | -1178.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 10.63 | 3.49 | -8.45 | 26.57 | 0.3242 | -578.0 | -422.2 | |
| 0.00 | 1.76 | 0.00 | 0.91 | 8.60 | 3.51 | -8.43 | 29.65 | 0.2943 | -929.0 | -737.8 | |
| 1.06 | 2.38 | 0.55 | 1.24 | 10.32 | 3.37 | -8.56 | 27.33 | 0.3205 | -1022.6 | -807.3 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 10.47 | 3.31 | -8.63 | 27.28 | 0.3233 | -797.0 | -695.1 | |
| 0.00 | 1.94 | 0.00 | 1.00 | 8.64 | 3.26 | -8.68 | 30.30 | 0.2969 | -940.0 | -778.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 8.64 | 3.08 | -8.86 | 30.82 | 0.2985 | -803.0 | -693.8 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 9.29 | 2.94 | -9.00 | 30.11 | 0.3091 | -875.0 | -708.8 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 10.29 | 2.91 | -9.03 | 28.61 | 0.3237 | -806.0 | -606.9 | |
| 0.00 | 5.28 | 0.00 | 2.79 | 11.62 | 2.69 | -9.25 | 27.31 | 0.3447 | -851.0 | -720.1 | |
| 0.00 | 1.67 | 0.00 | 0.89 | 12.39 | 1.72 | -10.21 | 28.60 | 0.3633 | -829.0 | -558.2 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 12.70 | 359.64 | -12.29 | 32.84 | 0.3847 | -714.0 | -504.8 | |
| 0.00 | 3.08 | 0.00 | 1.65 | 11.88 | 358.11 | -13.83 | 37.24 | 0.3882 | 706.0 | 610.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 10.63 | 357.98 | -13.96 | 39.58 | 0.3737 | 1045.0 | 832.7 | |
| 0.00 | 3.17 | 0.00 | 1.70 | 11.83 | 357.79 | -14.14 | 37.95 | 0.3906 | 975.0 | 690.9 | |
| 0.00 | 1.85 | 0.00 | 0.99 | 11.51 | 357.78 | -14.16 | 38.49 | 0.3867 | 964.0 | 741.9 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 11.30 | 357.69 | -14.24 | 39.02 | 0.3849 | 892.0 | 695.1 | |
| 3.43 | 5.28 | 1.83 | 2.82 | 10.08 | 357.53 | -14.41 | 41.45 | 0.3716 | 1113.2 | 825.0 | |
| 0.00 | 3.26 | 0.00 | 1.75 | 11.28 | 357.35 | -14.59 | 39.73 | 0.3881 | 706.0 | 646.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 10.62 | 357.32 | -14.62 | 40.91 | 0.3804 | 765.0 | 628.0 | |
| 5.37 | 59.67 | 2.88 | 32.00 | 10.32 | 356.86 | -15.08 | 42.33 | 0.3817 | 951.2 | 48.3 | |
| 12.67 | -22.00 | 6.78 | -22.00 | 10.01 | 356.75 | -15.19 | 43.10 | 0.3793 | 1027.6 | 999999 | |
| 8.36 | -22.00 | 4.50 | -22.00 | 10.31 | 356.07 | -15.87 | 43.80 | 0.3903 | -1108.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 12.30 | 354.03 | -17.91 | 43.87 | 0.4353 | 904.0 | 662.4 | |
| 0.00 | 1.67 | 0.00 | 0.92 | 12.12 | 353.85 | -18.09 | 44.46 | 0.4353 | 794.0 | 681.3 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 13.09 | 353.32 | -18.61 | 43.72 | 0.4517 | 491.0 | 396.3 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 13.55 | 352.73 | -19.21 | 43.89 | 0.4632 | 568.0 | 384.1 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 13.88 | 352.57 | -19.36 | 43.63 | 0.4685 | 723.0 | 654.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 12.90 | 352.42 | -19.51 | 45.36 | 0.4594 | 669.0 | 548.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
