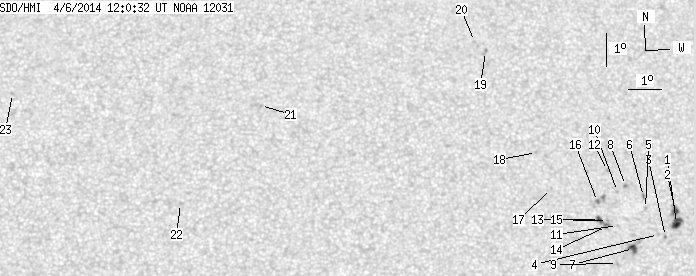

SDO HMI 2014-04-06 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.31 | 58.87 | 8.10 | 31.03 | 3.27 | 28.52 | 17.14 | 299.78 | 0.3410 | -170.7 | -95.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.60 | 9.59 | 3.51 | 5.10 | 2.76 | 30.86 | 19.47 | 294.24 | 0.3667 | -1112.5 | -758.7 | |
| 2.73 | 7.13 | 1.45 | 3.80 | 3.12 | 30.83 | 19.44 | 295.16 | 0.3688 | -1020.4 | -745.7 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 2.35 | 30.50 | 19.11 | 293.62 | 0.3586 | -830.0 | -711.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 2.40 | 30.28 | 18.89 | 294.02 | 0.3557 | -877.0 | -677.5 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 3.18 | 29.88 | 18.49 | 296.48 | 0.3553 | -740.0 | -585.3 | |
| 0.00 | 2.20 | 0.00 | 1.17 | 3.54 | 29.82 | 18.43 | 297.46 | 0.3572 | -745.0 | -561.6 | |
| 3.52 | 9.42 | 1.85 | 4.96 | 1.95 | 29.48 | 18.09 | 293.79 | 0.3406 | -1011.1 | -677.0 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 3.86 | 29.26 | 17.87 | 299.01 | 0.3517 | 716.0 | 576.7 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 1.48 | 28.97 | 17.58 | 293.13 | 0.3298 | -869.0 | -671.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 3.67 | 29.00 | 17.62 | 298.89 | 0.3464 | 655.0 | 432.7 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 2.63 | 28.98 | 17.60 | 296.24 | 0.3382 | 496.0 | 336.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 4.30 | 28.70 | 17.32 | 300.90 | 0.3474 | -878.0 | -739.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 2.78 | 28.67 | 17.28 | 297.04 | 0.3346 | 493.0 | 358.6 | |
| 0.00 | 2.11 | 0.00 | 1.11 | 2.59 | 28.64 | 17.25 | 296.60 | 0.3327 | 805.0 | 547.3 | |
| 2.11 | 3.96 | 1.11 | 2.08 | 2.80 | 28.42 | 17.03 | 297.45 | 0.3311 | 834.0 | 623.3 | |
| 0.35 | 5.02 | 0.18 | 2.64 | 3.34 | 28.37 | 16.98 | 298.97 | 0.3347 | 1038.8 | 777.5 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 3.70 | 26.93 | 15.55 | 302.17 | 0.3174 | -748.0 | -627.0 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 4.78 | 26.49 | 15.10 | 305.78 | 0.3214 | -826.0 | -549.5 | |
| 0.00 | 2.11 | 0.00 | 1.11 | 7.85 | 24.99 | 13.60 | 315.85 | 0.3360 | 836.0 | 726.8 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 8.15 | 24.66 | 13.27 | 317.18 | 0.3358 | 615.0 | 475.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 6.06 | 18.04 | 6.65 | 331.48 | 0.2422 | 798.0 | 692.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.04 | 15.59 | 4.20 | 335.50 | 0.1773 | 764.0 | 447.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 6.39 | 10.54 | -0.84 | 3.84 | 0.2198 | 812.0 | 669.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
