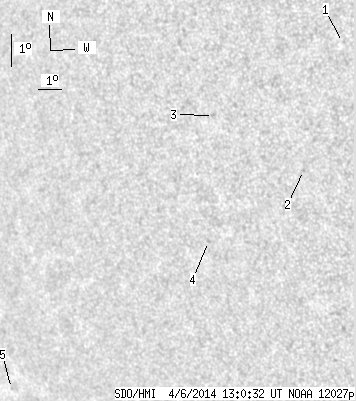

SDO HMI 2014-04-06 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.36 | 0.00 | 3.78 | -17.52 | 326.29 | -44.55 | 108.49 | 0.7029 | 354.8 | 261.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.49 | -13.09 | 334.08 | -36.76 | 103.57 | 0.6018 | 525.0 | 494.4 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -16.85 | 331.75 | -39.09 | 109.00 | 0.6405 | 570.0 | 423.0 | |
| 0.00 | 1.67 | 0.00 | 1.12 | -14.94 | 328.51 | -42.33 | 105.37 | 0.6771 | 783.0 | 600.6 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -18.73 | 327.21 | -43.63 | 110.55 | 0.7002 | 369.0 | 347.6 | |
| 0.00 | 1.14 | 0.00 | 1.00 | -22.44 | 315.82 | -55.02 | 113.04 | 0.8251 | -473.0 | -385.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
