SDO HMI 2014-04-06 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.73 | 215.12 | 24.59 | 113.11 | 10.32 | 1.04 | -9.80 | 29.74 | 0.3339 | -226.3 | -274.0 | |
|
previous
or next observation for the same group /

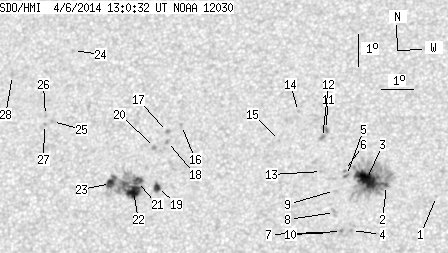

back to the solar disc SDO HMI 2014-04-06 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.36 | 9.64 | 6.13 | -4.71 | 16.53 | 0.2859 | -677.0 | -508.6 | |
| 0.97 | 112.89 | 0.50 | 58.72 | 10.00 | 4.59 | -6.25 | 21.04 | 0.2999 | -936.1 | -450.5 | |
| 22.44 | -2.00 | 11.67 | -2.00 | 10.20 | 3.98 | -6.86 | 22.66 | 0.3067 | -1208.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 8.61 | 3.55 | -7.29 | 26.20 | 0.2856 | -1000.0 | -889.8 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 10.33 | 3.36 | -7.48 | 24.28 | 0.3128 | -1090.0 | -940.7 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 10.49 | 3.29 | -7.55 | 24.26 | 0.3157 | -765.0 | -633.8 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 8.59 | 3.24 | -7.60 | 27.18 | 0.2875 | -1009.0 | -829.4 | |
| 0.00 | 4.40 | 0.00 | 2.28 | 9.18 | 3.01 | -7.82 | 26.93 | 0.2980 | -786.0 | -622.9 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 9.87 | 3.00 | -7.84 | 25.96 | 0.3084 | -750.0 | -670.4 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 8.56 | 2.97 | -7.87 | 28.06 | 0.2892 | -769.0 | -622.4 | |
| 0.00 | 3.70 | 0.00 | 1.95 | 11.79 | 2.67 | -8.17 | 24.30 | 0.3394 | -887.0 | -755.4 | |
| 0.00 | 2.55 | 0.00 | 1.34 | 11.54 | 2.59 | -8.25 | 24.84 | 0.3363 | -966.0 | -804.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 10.47 | 2.59 | -8.25 | 26.27 | 0.3204 | -759.0 | -557.1 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 12.37 | 1.82 | -9.02 | 25.76 | 0.3540 | -744.0 | -643.0 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 11.47 | 1.26 | -9.58 | 28.36 | 0.3450 | -720.0 | -607.8 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 12.01 | 358.17 | -12.67 | 34.66 | 0.3788 | 706.0 | 581.3 | |
| 0.00 | 2.02 | 0.00 | 1.08 | 11.83 | 357.74 | -13.10 | 35.84 | 0.3804 | 867.0 | 724.9 | |
| 0.00 | 1.67 | 0.00 | 0.89 | 11.52 | 357.76 | -13.08 | 36.31 | 0.3762 | 933.0 | 809.8 | |
| 3.43 | 5.28 | 1.82 | 2.80 | 10.08 | 357.51 | -13.33 | 39.26 | 0.3603 | 1094.3 | 786.7 | |
| 0.00 | 2.02 | 0.00 | 1.08 | 11.34 | 357.36 | -13.48 | 37.43 | 0.3778 | 882.0 | 724.1 | |
| 4.58 | 61.77 | 2.44 | 32.95 | 10.29 | 356.87 | -13.97 | 40.21 | 0.3695 | 982.7 | -40.4 | |
| 10.65 | -21.00 | 5.67 | -21.00 | 9.98 | 356.76 | -14.08 | 41.00 | 0.3669 | 1119.1 | 999999 | |
| 4.66 | -21.00 | 2.49 | -21.00 | 10.25 | 356.02 | -14.82 | 41.96 | 0.3780 | -1121.9 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 14.50 | 354.59 | -16.25 | 37.78 | 0.4442 | 654.0 | 493.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.26 | 354.07 | -16.77 | 42.07 | 0.4227 | 820.0 | 579.3 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 12.46 | 353.83 | -17.01 | 42.15 | 0.4275 | 659.0 | 462.1 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.17 | 353.81 | -17.02 | 42.64 | 0.4243 | 831.0 | 754.0 | |
| 0.00 | 2.20 | 0.00 | 1.22 | 13.77 | 352.67 | -18.17 | 41.99 | 0.4547 | 650.0 | 551.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
