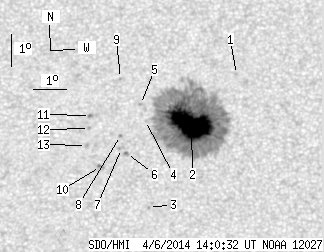

SDO HMI 2014-04-06 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.11 | 421.46 | 38.34 | 221.06 | 12.58 | 13.59 | 3.30 | 350.12 | 0.3286 | -1110.4 | -395.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.61 | 14.21 | 15.10 | 4.81 | 346.86 | 0.3595 | 784.0 | 610.9 | |
| 73.11 | 403.23 | 38.34 | 211.55 | 12.60 | 13.68 | 3.39 | 349.84 | 0.3290 | -1480.3 | -423.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 9.99 | 12.34 | 2.05 | 352.81 | 0.2825 | 806.0 | 633.8 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 12.73 | 12.27 | 1.98 | 354.07 | 0.3277 | -671.0 | -473.5 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 13.23 | 12.12 | 1.83 | 354.67 | 0.3358 | -685.0 | -507.8 | |
| 0.00 | 1.94 | 0.00 | 1.01 | 11.68 | 11.68 | 1.39 | 355.59 | 0.3096 | -904.0 | -712.3 | |
| 0.00 | 2.20 | 0.00 | 1.15 | 11.84 | 11.53 | 1.24 | 356.10 | 0.3120 | -199.0 | -281.2 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 12.25 | 11.50 | 1.21 | 356.28 | 0.3188 | -810.0 | -614.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 14.06 | 11.51 | 1.22 | 356.59 | 0.3487 | -757.0 | -553.3 | |
| 0.00 | 2.20 | 0.00 | 1.14 | 11.27 | 10.88 | 0.59 | 358.07 | 0.3020 | 921.0 | 746.0 | |
| 0.00 | 1.94 | 0.00 | 1.01 | 12.88 | 10.58 | 0.29 | 359.14 | 0.3287 | 1003.0 | 825.0 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 12.47 | 10.55 | 0.26 | 359.22 | 0.3218 | 818.0 | 675.3 | |
| 0.00 | 2.29 | 0.00 | 1.19 | 11.93 | 10.45 | 0.16 | 359.49 | 0.3129 | 550.0 | 470.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
