SDO HMI 2014-04-06 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.97 | 210.37 | 26.25 | 110.60 | 10.39 | 0.68 | -9.61 | 29.07 | 0.3336 | -78.6 | -171.5 | |
|
previous
or next observation for the same group /

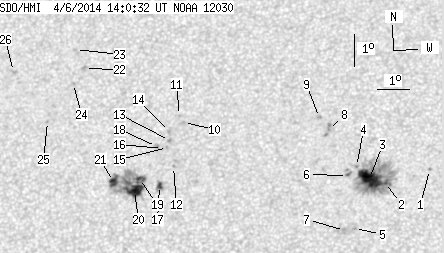

back to the solar disc SDO HMI 2014-04-06 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.64 | 10.45 | 5.81 | -4.48 | 15.01 | 0.2979 | 711.0 | 578.2 | |
| 1.32 | 103.29 | 0.68 | 53.66 | 10.06 | 4.47 | -5.82 | 19.65 | 0.2983 | -976.3 | -442.5 | |
| 24.11 | -2.00 | 12.53 | -2.00 | 10.19 | 3.98 | -6.31 | 21.01 | 0.3032 | -1203.3 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 10.57 | 3.57 | -6.72 | 21.76 | 0.3116 | -759.0 | -583.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 8.64 | 3.55 | -6.74 | 24.43 | 0.2820 | -995.0 | -824.7 | |
| 0.44 | 4.40 | 0.23 | 2.29 | 10.29 | 3.30 | -6.99 | 22.90 | 0.3090 | -947.4 | -704.4 | |
| 0.00 | 2.73 | 0.00 | 1.41 | 8.58 | 3.24 | -7.05 | 25.48 | 0.2833 | -918.0 | -802.1 | |
| 0.00 | 4.40 | 0.00 | 2.31 | 11.75 | 2.68 | -7.61 | 22.86 | 0.3352 | -905.0 | -783.0 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 12.13 | 2.39 | -7.90 | 23.18 | 0.3428 | -860.0 | -708.3 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 12.06 | 358.16 | -12.13 | 33.44 | 0.3746 | 747.0 | 566.5 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 12.29 | 358.02 | -12.27 | 33.40 | 0.3788 | 637.0 | 464.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 10.68 | 357.90 | -12.39 | 36.18 | 0.3586 | 837.0 | 729.2 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 11.50 | 357.74 | -12.55 | 35.20 | 0.3710 | 955.0 | 825.1 | |
| 0.00 | 2.46 | 0.00 | 1.32 | 11.79 | 357.73 | -12.56 | 34.78 | 0.3748 | 901.0 | 651.4 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 11.29 | 357.69 | -12.60 | 35.66 | 0.3686 | 919.0 | 709.2 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 11.26 | 357.53 | -12.76 | 36.04 | 0.3697 | 840.0 | 757.2 | |
| 2.55 | 5.54 | 1.35 | 2.94 | 10.10 | 357.49 | -12.80 | 38.09 | 0.3551 | 1124.8 | 827.1 | |
| 0.00 | 3.08 | 0.00 | 1.64 | 11.33 | 357.34 | -12.95 | 36.34 | 0.3724 | 919.0 | 668.7 | |
| 1.67 | 64.84 | 0.89 | 34.50 | 10.34 | 356.85 | -13.44 | 39.04 | 0.3646 | 896.7 | 25.1 | |
| 13.99 | -19.00 | 7.43 | -19.00 | 9.96 | 356.71 | -13.58 | 39.99 | 0.3614 | 1031.5 | 999999 | |
| 5.89 | -19.00 | 3.14 | -19.00 | 10.26 | 356.04 | -14.25 | 40.82 | 0.3722 | -1113.7 | 999999 | |
| 0.00 | 2.55 | 0.00 | 1.40 | 13.87 | 354.92 | -15.37 | 37.16 | 0.4279 | 824.0 | 684.8 | |
| 0.00 | 1.58 | 0.00 | 0.87 | 14.48 | 354.59 | -15.71 | 36.86 | 0.4387 | 610.0 | 505.3 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 13.40 | 354.60 | -15.69 | 38.42 | 0.4252 | 764.0 | 646.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 12.22 | 353.84 | -16.45 | 41.59 | 0.4188 | 843.0 | 720.2 | |
| 0.00 | 2.55 | 0.00 | 1.41 | 13.85 | 352.63 | -17.66 | 41.06 | 0.4503 | 716.0 | 594.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
