SDO HMI 2014-04-06 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.70 | 60.46 | 10.48 | 32.08 | 3.08 | 28.95 | 18.66 | 296.78 | 0.3600 | -127.0 | -199.1 | |
|
previous
or next observation for the same group /

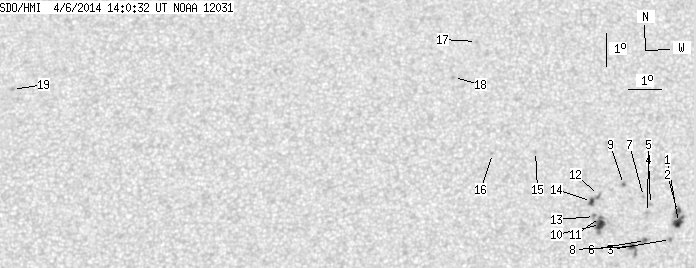

back to the solar disc SDO HMI 2014-04-06 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.89 | 15.75 | 3.16 | 8.45 | 2.78 | 31.01 | 20.72 | 292.91 | 0.3852 | -1119.3 | -806.5 | |
| 2.46 | -1.00 | 1.32 | -1.00 | 3.11 | 30.98 | 20.69 | 293.73 | 0.3871 | -970.1 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.99 | 2.25 | 30.74 | 20.45 | 291.91 | 0.3779 | -1003.0 | -797.0 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 3.29 | 30.12 | 19.83 | 295.12 | 0.3757 | -1017.0 | -741.2 | |
| 0.00 | 1.58 | 0.00 | 0.84 | 3.04 | 30.02 | 19.73 | 294.64 | 0.3725 | -868.0 | -521.0 | |
| 0.79 | 4.58 | 0.42 | 2.43 | 2.19 | 29.94 | 19.65 | 292.61 | 0.3656 | -945.8 | -724.7 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 3.53 | 29.90 | 19.61 | 295.94 | 0.3742 | -900.0 | -683.8 | |
| 2.29 | 6.51 | 1.21 | 3.45 | 1.99 | 29.49 | 19.20 | 292.60 | 0.3576 | -1073.2 | -791.3 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 3.87 | 29.27 | 18.98 | 297.54 | 0.3676 | 702.0 | 574.1 | |
| 5.72 | 11.79 | 3.02 | 6.22 | 2.63 | 28.52 | 18.23 | 295.39 | 0.3474 | 976.3 | 366.2 | |
| 0.26 | -10.00 | 0.14 | -10.00 | 2.84 | 28.52 | 18.23 | 295.94 | 0.3490 | 625.0 | 999999 | |
| 0.00 | 2.64 | 0.00 | 1.40 | 3.51 | 28.47 | 18.18 | 297.70 | 0.3533 | 700.0 | 641.0 | |
| 0.00 | 2.29 | 0.00 | 1.21 | 2.87 | 28.33 | 18.04 | 296.25 | 0.3464 | 994.0 | 696.2 | |
| 2.29 | 3.78 | 1.21 | 2.00 | 3.32 | 28.25 | 17.96 | 297.52 | 0.3486 | 956.7 | 692.2 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 4.79 | 26.52 | 16.23 | 303.82 | 0.3367 | -677.0 | -448.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 4.69 | 25.17 | 14.88 | 305.94 | 0.3176 | -828.0 | -651.8 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 8.12 | 24.78 | 14.49 | 314.59 | 0.3493 | 719.0 | 642.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 6.99 | 24.02 | 13.73 | 313.73 | 0.3275 | 852.0 | 718.2 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 6.45 | 10.56 | 0.27 | 358.76 | 0.2204 | 858.0 | 650.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
