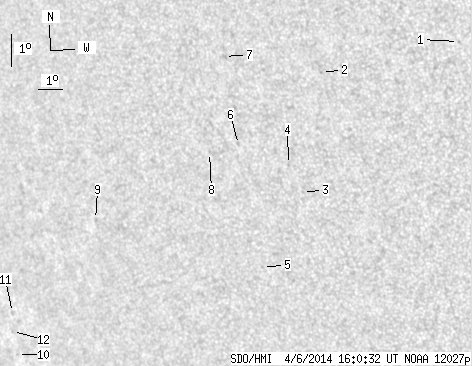

SDO HMI 2014-04-06 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.73 | 0.00 | 9.68 | -19.00 | 324.70 | -44.49 | 110.71 | 0.7060 | 297.1 | 188.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.36 | -15.04 | 337.50 | -31.69 | 108.43 | 0.5368 | 694.0 | 548.9 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -15.67 | 332.21 | -36.98 | 107.73 | 0.6103 | 626.0 | 553.6 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -19.26 | 330.56 | -38.62 | 112.83 | 0.6416 | 594.0 | 478.0 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -18.37 | 330.24 | -38.95 | 111.37 | 0.6429 | 657.0 | 557.2 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -21.45 | 328.21 | -40.98 | 115.21 | 0.6769 | 389.0 | 303.5 | |
| 0.00 | 1.32 | 0.00 | 0.87 | -17.63 | 328.38 | -40.81 | 109.69 | 0.6638 | 609.0 | 537.1 | |
| 0.00 | 2.46 | 0.00 | 1.61 | -14.93 | 328.49 | -40.70 | 105.67 | 0.6567 | 688.0 | 593.2 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -17.78 | 327.12 | -42.07 | 109.59 | 0.6796 | 540.0 | 397.1 | |
| 0.00 | 1.50 | 0.00 | 1.11 | -19.44 | 321.44 | -47.75 | 110.59 | 0.7480 | -168.0 | -178.6 | |
| 0.00 | 0.70 | 0.00 | 0.60 | -23.23 | 315.62 | -53.57 | 114.25 | 0.8131 | -334.0 | -301.8 | |
| 0.00 | 1.76 | 0.00 | 1.47 | -21.93 | 316.08 | -53.11 | 112.74 | 0.8066 | -245.0 | -288.9 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -22.51 | 315.76 | -53.42 | 113.39 | 0.8106 | -485.0 | -436.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
