SDO HMI 2014-04-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.28 | 373.17 | 29.09 | 188.79 | -11.41 | 18.33 | 9.69 | 237.33 | 0.1946 | -101.3 | -273.5 | |
|
previous
or next observation for the same group /

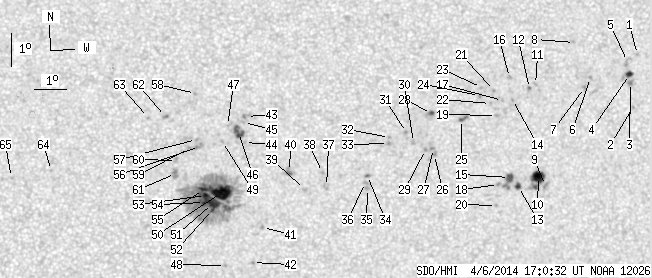

back to the solar disc SDO HMI 2014-04-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.60 | -7.54 | 28.86 | 20.22 | 265.05 | 0.3454 | 701.0 | 517.4 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -9.13 | 28.78 | 20.14 | 260.41 | 0.3463 | 765.0 | 697.9 | |
| 0.00 | 3.17 | 0.00 | 1.67 | -8.39 | 28.67 | 20.04 | 262.55 | 0.3433 | 986.0 | 776.6 | |
| 2.73 | 6.16 | 1.44 | 3.24 | -8.15 | 28.63 | 19.99 | 263.24 | 0.3423 | 1008.6 | 768.9 | |
| 0.00 | 3.96 | 0.00 | 2.08 | -7.76 | 28.55 | 19.91 | 264.36 | 0.3405 | 682.0 | 654.0 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -8.28 | 27.38 | 18.75 | 262.53 | 0.3222 | 960.0 | 706.7 | |
| 0.00 | 2.46 | 0.00 | 1.29 | -8.59 | 27.21 | 18.57 | 261.52 | 0.3197 | 915.0 | 678.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -7.25 | 26.83 | 18.19 | 265.69 | 0.3119 | 858.0 | 649.6 | |
| 0.00 | 2.90 | 0.00 | 1.51 | -11.57 | 26.12 | 17.49 | 251.56 | 0.3117 | 754.0 | 579.9 | |
| 10.38 | 19.53 | 5.40 | 10.16 | -11.31 | 25.88 | 17.25 | 252.18 | 0.3067 | 1163.9 | 828.3 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -8.55 | 25.64 | 17.01 | 261.10 | 0.2940 | 754.0 | 634.9 | |
| 0.00 | 1.85 | 0.00 | 0.96 | -8.67 | 25.46 | 16.82 | 260.59 | 0.2913 | 995.0 | 801.8 | |
| 2.20 | 3.61 | 1.14 | 1.87 | -11.63 | 25.26 | 16.63 | 250.60 | 0.2984 | 1031.2 | 792.3 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -9.02 | 24.93 | 16.30 | 259.14 | 0.2835 | 860.0 | 833.2 | |
| 3.43 | 9.68 | 1.78 | 5.01 | -11.36 | 24.96 | 16.32 | 251.17 | 0.2924 | 1149.1 | 887.2 | |
| 0.00 | 2.29 | 0.00 | 1.18 | -8.36 | 24.81 | 16.17 | 261.41 | 0.2800 | 947.0 | 679.7 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -9.06 | 24.62 | 15.98 | 258.84 | 0.2784 | 865.0 | 729.0 | |
| 0.00 | 1.85 | 0.00 | 0.96 | -11.58 | 24.62 | 15.99 | 250.11 | 0.2882 | 932.0 | 726.7 | |
| 0.00 | 2.11 | 0.00 | 1.09 | -9.51 | 24.45 | 15.81 | 257.11 | 0.2770 | 904.0 | 630.3 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -12.22 | 24.60 | 15.96 | 247.99 | 0.2911 | 848.0 | 608.4 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -8.76 | 24.36 | 15.72 | 259.75 | 0.2733 | 863.0 | 704.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -9.16 | 24.25 | 15.61 | 258.26 | 0.2725 | 911.0 | 777.1 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -8.68 | 23.94 | 15.31 | 259.82 | 0.2663 | 842.0 | 694.6 | |
| 0.00 | 1.76 | 0.00 | 0.90 | -8.93 | 23.89 | 15.25 | 258.89 | 0.2660 | 920.0 | 736.5 | |
| 0.53 | 3.61 | 0.27 | 1.85 | -9.66 | 23.35 | 14.72 | 255.76 | 0.2596 | 1081.0 | 950.1 | |
| 0.00 | 2.02 | 0.00 | 1.04 | -10.73 | 22.55 | 13.92 | 250.89 | 0.2512 | 994.0 | 768.4 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -10.55 | 22.51 | 13.88 | 251.53 | 0.2497 | 906.0 | 786.3 | |
| 0.97 | 3.17 | 0.49 | 1.62 | -9.50 | 22.41 | 13.77 | 255.57 | 0.2435 | 1158.1 | 884.8 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -10.59 | 22.26 | 13.63 | 251.11 | 0.2459 | 995.0 | 899.7 | |
| 0.00 | 2.11 | 0.00 | 1.08 | -10.39 | 21.88 | 13.24 | 251.46 | 0.2387 | 903.0 | 713.3 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -10.09 | 21.65 | 13.01 | 252.39 | 0.2336 | 1006.0 | 799.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -10.26 | 21.12 | 12.49 | 251.07 | 0.2259 | 909.0 | 684.5 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -10.44 | 21.10 | 12.46 | 250.28 | 0.2265 | 963.0 | 827.2 | |
| 0.00 | 2.02 | 0.00 | 1.03 | -11.41 | 20.48 | 11.85 | 245.24 | 0.2226 | -858.0 | -741.2 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -11.80 | 20.50 | 11.86 | 243.66 | 0.2255 | -622.0 | -565.1 | |
| 0.00 | 2.02 | 0.00 | 1.03 | -11.63 | 20.43 | 11.79 | 244.26 | 0.2232 | -1007.0 | -696.0 | |
| 0.00 | 4.22 | 0.00 | 2.14 | -11.77 | 19.22 | 10.58 | 241.27 | 0.2059 | -590.0 | -624.8 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -11.35 | 19.08 | 10.44 | 242.82 | 0.2006 | -933.0 | -771.0 | |
| 0.00 | 2.20 | 0.00 | 1.11 | -11.87 | 18.54 | 9.90 | 239.25 | 0.1967 | -878.0 | -741.4 | |
| 0.00 | 4.84 | 0.00 | 2.44 | -11.34 | 18.05 | 9.41 | 240.52 | 0.1851 | -914.0 | -809.4 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -13.04 | 17.27 | 8.63 | 230.63 | 0.1900 | -951.0 | -730.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -14.10 | 16.99 | 8.36 | 225.55 | 0.1984 | -817.0 | -678.4 | |
| 0.00 | 3.61 | 0.00 | 1.81 | -9.70 | 16.68 | 8.04 | 245.84 | 0.1519 | -748.0 | -746.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.49 | 16.64 | 8.00 | 241.13 | 0.1570 | -861.0 | -642.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.89 | 16.59 | 7.96 | 244.51 | 0.1517 | -851.0 | -654.8 | |
| 4.93 | 9.32 | 2.47 | 4.67 | -10.19 | 16.45 | 7.81 | 242.29 | 0.1517 | -1113.8 | -919.2 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.98 | 16.10 | 7.47 | 242.52 | 0.1449 | -682.0 | -559.5 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -14.20 | 16.16 | 7.52 | 222.21 | 0.1896 | -890.0 | -631.1 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -10.46 | 15.96 | 7.32 | 239.13 | 0.1467 | -1012.0 | -828.7 | |
| 18.12 | 218.85 | 9.09 | 109.82 | -12.00 | 15.97 | 7.33 | 230.84 | 0.1617 | -1368.6 | -534.9 | |
| 8.36 | -50.00 | 4.19 | -50.00 | -12.33 | 15.70 | 7.06 | 228.20 | 0.1618 | -1175.2 | 999999 | |
| 0.26 | -50.00 | 0.13 | -50.00 | -12.52 | 15.70 | 7.06 | 227.37 | 0.1639 | -990.3 | 999999 | |
| 2.38 | -50.00 | 1.19 | -50.00 | -12.10 | 15.48 | 6.84 | 228.45 | 0.1563 | -1416.5 | 999999 | |
| 0.26 | -50.00 | 0.13 | -50.00 | -12.31 | 15.45 | 6.81 | 227.33 | 0.1583 | -1162.7 | 999999 | |
| 2.73 | -50.00 | 1.37 | -50.00 | -11.92 | 15.41 | 6.77 | 229.07 | 0.1534 | -1323.6 | 999999 | |
| 0.00 | 4.40 | 0.00 | 2.20 | -10.62 | 15.26 | 6.62 | 235.62 | 0.1379 | -1018.0 | -909.4 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -10.41 | 15.16 | 6.52 | 236.53 | 0.1346 | -919.0 | -738.0 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.03 | 15.10 | 6.47 | 245.89 | 0.1224 | -973.0 | -727.9 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -10.69 | 14.95 | 6.31 | 233.98 | 0.1342 | -935.0 | -808.3 | |
| 0.00 | 2.55 | 0.00 | 1.27 | -11.05 | 14.56 | 5.92 | 230.04 | 0.1327 | -912.0 | -761.6 | |
| 0.00 | 6.33 | 0.00 | 3.17 | -11.44 | 14.54 | 5.90 | 227.70 | 0.1368 | -1083.0 | -869.8 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -9.73 | 14.20 | 5.56 | 237.10 | 0.1143 | -973.0 | -865.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.77 | 13.68 | 5.04 | 234.27 | 0.1072 | -811.0 | -676.1 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -11.38 | 10.73 | 2.10 | 201.72 | 0.0973 | -825.0 | -585.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.59 | 9.51 | 0.87 | 189.05 | 0.0953 | 499.0 | 489.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
