SDO HMI 2014-04-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 28.40 | 0.39 | 14.11 | -8.29 | 7.42 | -1.22 | 152.74 | 0.0652 | 183.7 | -203.8 | |
|
previous
or next observation for the same group /

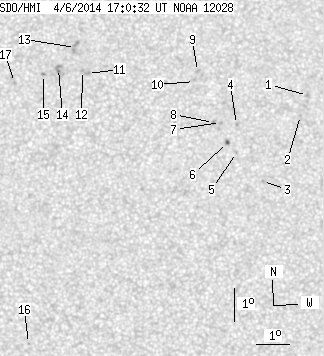

back to the solar disc SDO HMI 2014-04-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.61 | -8.27 | 12.57 | 3.93 | 241.95 | 0.0772 | 1128.0 | 766.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.88 | 12.36 | 3.72 | 234.01 | 0.0797 | 887.0 | 631.7 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.86 | 11.22 | 2.58 | 208.60 | 0.0928 | -863.0 | -690.6 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.15 | 10.42 | 1.78 | 210.88 | 0.0600 | 814.0 | 697.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.99 | 10.42 | 1.78 | 204.93 | 0.0730 | 948.0 | 666.3 | |
| 0.79 | 2.02 | 0.39 | 1.00 | -9.69 | 10.15 | 1.51 | 203.15 | 0.0663 | 1056.4 | 830.0 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -9.09 | 9.93 | 1.29 | 203.94 | 0.0552 | 776.0 | 714.1 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -9.09 | 9.72 | 1.08 | 200.36 | 0.0538 | 924.0 | 760.6 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -7.56 | 9.23 | 0.59 | 203.64 | 0.0258 | 880.0 | 761.2 | |
| 0.00 | 0.44 | 0.00 | 0.22 | -7.86 | 9.14 | 0.50 | 196.86 | 0.0302 | 736.0 | 747.4 | |
| 0.00 | 2.46 | 0.00 | 1.22 | -7.61 | 5.90 | -2.73 | 117.38 | 0.0535 | -850.0 | -715.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -7.52 | 5.75 | -2.88 | 114.67 | 0.0552 | -1064.0 | -809.8 | |
| 0.00 | 5.54 | 0.00 | 2.75 | -6.83 | 5.55 | -3.09 | 101.48 | 0.0549 | -745.0 | -850.7 | |
| 0.00 | 3.69 | 0.00 | 1.83 | -7.46 | 5.03 | -3.61 | 109.29 | 0.0665 | -745.0 | -943.1 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -7.63 | 4.57 | -4.07 | 109.56 | 0.0749 | -994.0 | -784.9 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -15.74 | 3.97 | -4.67 | 154.71 | 0.1842 | 744.0 | 607.8 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -7.86 | 3.69 | -4.95 | 108.83 | 0.0907 | -850.0 | -614.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
