SDO HMI 2014-04-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.83 | 0.00 | 6.73 | -15.31 | 351.92 | -16.72 | 120.70 | 0.3268 | -779.1 | -676.3 | |
|
previous
or next observation for the same group /

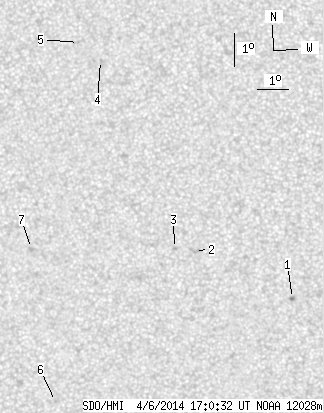

back to the solar disc SDO HMI 2014-04-06 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.04 | -17.35 | 356.49 | -12.15 | 134.22 | 0.2815 | -1039.0 | -873.5 | |
| 0.00 | 4.05 | 0.00 | 2.10 | -15.81 | 353.45 | -15.19 | 124.03 | 0.3056 | -579.0 | -672.7 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -15.73 | 352.81 | -15.83 | 122.80 | 0.3137 | -943.0 | -854.7 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -9.98 | 350.83 | -17.81 | 103.22 | 0.3107 | -773.0 | -559.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -9.42 | 350.16 | -18.48 | 101.10 | 0.3200 | -742.0 | -477.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -20.28 | 348.37 | -20.27 | 127.48 | 0.4113 | -815.0 | -685.0 | |
| 0.00 | 2.81 | 0.00 | 1.51 | -15.57 | 348.13 | -20.51 | 116.62 | 0.3791 | -563.0 | -571.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
