SDO HMI 2014-04-06 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.14 | 375.81 | 31.10 | 190.52 | -11.38 | 18.51 | 10.42 | 239.51 | 0.2048 | -124.8 | -220.9 | |
|
previous
or next observation for the same group /

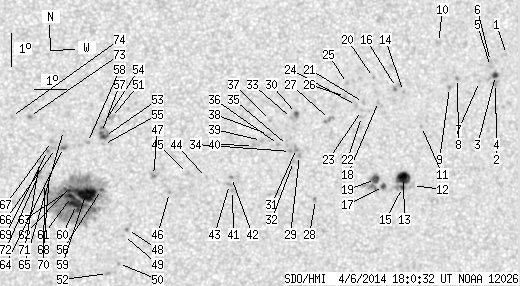

back to the solar disc SDO HMI 2014-04-06 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.33 | -7.48 | 29.01 | 20.93 | 265.29 | 0.3569 | 606.0 | 429.1 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -9.11 | 28.78 | 20.69 | 260.66 | 0.3551 | 734.0 | 591.0 | |
| 2.02 | 4.66 | 1.07 | 2.46 | -8.13 | 28.69 | 20.60 | 263.43 | 0.3522 | 1033.0 | 803.9 | |
| 0.00 | 3.08 | 0.00 | 1.63 | -8.36 | 28.70 | 20.62 | 262.75 | 0.3527 | 1036.0 | 770.5 | |
| 0.00 | 2.37 | 0.00 | 1.25 | -7.86 | 28.51 | 20.43 | 264.15 | 0.3491 | 879.0 | 648.2 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -7.71 | 28.51 | 20.42 | 264.58 | 0.3489 | 694.0 | 628.2 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -8.32 | 28.18 | 20.10 | 262.75 | 0.3443 | 731.0 | 470.8 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -8.26 | 27.47 | 19.39 | 262.77 | 0.3326 | 932.0 | 788.8 | |
| 0.00 | 1.76 | 0.00 | 0.92 | -8.54 | 27.23 | 19.14 | 261.86 | 0.3290 | 968.0 | 771.0 | |
| 0.00 | 2.02 | 0.00 | 1.06 | -7.20 | 26.81 | 18.73 | 265.90 | 0.3208 | 763.0 | 550.9 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.74 | 26.39 | 18.31 | 257.83 | 0.3181 | 796.0 | 566.9 | |
| 0.00 | 2.02 | 0.00 | 1.06 | -11.52 | 26.21 | 18.13 | 252.24 | 0.3215 | 721.0 | 650.7 | |
| 11.26 | 20.50 | 5.88 | 10.69 | -11.29 | 25.91 | 17.82 | 252.70 | 0.3158 | 1166.3 | 766.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -8.71 | 25.77 | 17.68 | 260.83 | 0.3054 | 691.0 | 579.4 | |
| 1.32 | -13.00 | 0.69 | -13.00 | -11.59 | 25.90 | 17.81 | 251.77 | 0.3169 | 950.3 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.64 | -8.59 | 25.54 | 17.45 | 261.12 | 0.3015 | 536.0 | 740.8 | |
| 1.50 | 2.73 | 0.78 | 1.42 | -11.58 | 25.28 | 17.20 | 251.28 | 0.3072 | 1054.1 | 819.0 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -9.03 | 24.99 | 16.90 | 259.41 | 0.2934 | 952.0 | 801.6 | |
| 3.61 | 13.55 | 1.87 | 7.03 | -11.38 | 25.02 | 16.93 | 251.69 | 0.3021 | 1189.1 | 812.9 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -8.31 | 24.80 | 16.71 | 261.78 | 0.2887 | 767.0 | 614.8 | |
| 0.00 | 1.94 | 0.00 | 1.00 | -9.07 | 24.51 | 16.43 | 259.02 | 0.2857 | 876.0 | 652.2 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.50 | 24.47 | 16.38 | 257.53 | 0.2862 | 884.0 | 695.5 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.32 | 24.46 | 16.37 | 258.15 | 0.2855 | 811.0 | 723.4 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.17 | 24.30 | 16.21 | 258.56 | 0.2824 | 938.0 | 788.6 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -8.52 | 23.98 | 15.90 | 260.73 | 0.2757 | 865.0 | 723.5 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -8.91 | 23.94 | 15.85 | 259.29 | 0.2759 | 890.0 | 736.7 | |
| 0.00 | 4.22 | 0.00 | 2.17 | -9.61 | 23.46 | 15.38 | 256.44 | 0.2702 | 1217.0 | 905.9 | |
| 0.00 | 1.67 | 0.00 | 0.86 | -12.03 | 23.14 | 15.06 | 247.56 | 0.2761 | -889.0 | -755.2 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -10.72 | 22.57 | 14.48 | 251.57 | 0.2602 | 931.0 | 763.4 | |
| 0.88 | 3.08 | 0.45 | 1.58 | -9.46 | 22.42 | 14.33 | 256.22 | 0.2525 | 1115.8 | 931.0 | |
| 0.00 | 2.46 | 0.00 | 1.26 | -10.51 | 22.46 | 14.38 | 252.24 | 0.2575 | 840.0 | 814.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.91 | 22.39 | 14.30 | 250.69 | 0.2582 | 851.0 | 687.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -9.61 | 22.27 | 14.18 | 255.49 | 0.2506 | 740.0 | 708.9 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -10.61 | 22.28 | 14.19 | 251.69 | 0.2550 | 1094.0 | 912.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.43 | 22.18 | 14.09 | 252.25 | 0.2525 | 960.0 | 735.6 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -10.41 | 21.89 | 13.81 | 252.04 | 0.2479 | 859.0 | 704.2 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -9.69 | 21.61 | 13.53 | 254.59 | 0.2402 | 825.0 | 577.8 | |
| 0.00 | 2.11 | 0.00 | 1.08 | -10.11 | 21.57 | 13.48 | 252.84 | 0.2413 | 852.0 | 699.5 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -10.30 | 21.35 | 13.27 | 251.86 | 0.2387 | 809.0 | 653.0 | |
| 0.00 | 2.20 | 0.00 | 1.12 | -10.45 | 21.11 | 13.03 | 250.93 | 0.2356 | 929.0 | 753.6 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -11.82 | 20.51 | 12.43 | 244.57 | 0.2343 | -673.0 | -561.4 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -11.43 | 20.46 | 12.38 | 246.05 | 0.2310 | -1014.0 | -814.7 | |
| 0.00 | 2.37 | 0.00 | 1.21 | -11.64 | 20.41 | 12.32 | 245.11 | 0.2315 | -898.0 | -605.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -11.45 | 19.68 | 11.60 | 244.66 | 0.2190 | -763.0 | -562.9 | |
| 0.00 | 1.76 | 0.00 | 0.89 | -11.34 | 19.09 | 11.00 | 244.01 | 0.2091 | -752.0 | -589.0 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -11.92 | 18.55 | 10.46 | 240.34 | 0.2054 | -975.0 | -814.0 | |
| 0.00 | 3.17 | 0.00 | 1.60 | -11.42 | 18.03 | 9.95 | 241.42 | 0.1937 | -962.0 | -824.8 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -13.06 | 17.28 | 9.19 | 232.26 | 0.1977 | -912.0 | -823.2 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -13.24 | 17.16 | 9.08 | 231.16 | 0.1980 | -967.0 | -733.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -14.09 | 17.04 | 8.95 | 227.51 | 0.2056 | -793.0 | -597.4 | |
| 0.00 | 3.25 | 0.00 | 1.63 | -9.70 | 16.68 | 8.60 | 247.23 | 0.1605 | -740.0 | -722.3 | |
| 0.00 | 1.76 | 0.00 | 0.89 | -14.40 | 16.70 | 8.62 | 225.33 | 0.2050 | -842.0 | -669.0 | |
| 1.76 | 9.68 | 0.88 | 4.86 | -10.27 | 16.48 | 8.40 | 243.45 | 0.1614 | -1183.8 | -914.8 | |
| 0.00 | 1.85 | 0.00 | 0.93 | -9.82 | 16.47 | 8.38 | 246.01 | 0.1580 | -662.0 | -561.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.51 | 16.46 | 8.37 | 242.04 | 0.1628 | -753.0 | -610.1 | |
| 0.70 | 221.84 | 0.35 | 111.45 | -11.87 | 16.43 | 8.35 | 234.99 | 0.1743 | -713.2 | -498.6 | |
| 0.53 | -53.00 | 0.26 | -53.00 | -10.15 | 16.39 | 8.30 | 243.87 | 0.1590 | -1299.0 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -10.46 | 15.96 | 7.88 | 240.93 | 0.1549 | -971.0 | -772.1 | |
| 19.44 | -56.00 | 9.77 | -56.00 | -12.02 | 15.94 | 7.86 | 232.62 | 0.1690 | -1367.8 | 999999 | |
| 10.73 | -56.00 | 5.39 | -56.00 | -12.33 | 15.67 | 7.59 | 230.22 | 0.1686 | -1153.3 | 999999 | |
| 5.19 | -56.00 | 2.61 | -56.00 | -12.09 | 15.51 | 7.43 | 230.77 | 0.1639 | -1363.9 | 999999 | |
| 0.26 | -56.00 | 0.13 | -56.00 | -11.79 | 15.47 | 7.39 | 232.11 | 0.1602 | -1106.7 | 999999 | |
| 1.41 | -56.00 | 0.71 | -56.00 | -11.91 | 15.41 | 7.33 | 231.29 | 0.1607 | -1367.5 | 999999 | |
| 0.53 | 1.85 | 0.26 | 0.92 | -10.62 | 15.23 | 7.14 | 237.61 | 0.1454 | -1147.3 | -903.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.11 | 15.22 | 7.13 | 240.68 | 0.1408 | -774.0 | -596.7 | |
| 0.00 | 0.53 | 0.00 | 0.26 | -10.65 | 14.98 | 6.90 | 236.52 | 0.1421 | -955.0 | -792.5 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -10.44 | 14.86 | 6.77 | 237.32 | 0.1384 | -912.0 | -752.2 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -11.40 | 14.81 | 6.73 | 231.57 | 0.1473 | -904.0 | -676.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -10.71 | 14.74 | 6.65 | 235.21 | 0.1393 | -911.0 | -895.3 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -11.71 | 14.67 | 6.58 | 229.36 | 0.1486 | -913.0 | -772.9 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.08 | 14.50 | 6.41 | 232.10 | 0.1396 | -1021.0 | -759.8 | |
| 0.00 | 3.96 | 0.00 | 1.98 | -11.44 | 14.48 | 6.39 | 229.97 | 0.1431 | -899.0 | -904.8 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -9.70 | 14.17 | 6.08 | 239.60 | 0.1216 | -1105.0 | -911.1 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.70 | 13.62 | 5.53 | 237.18 | 0.1136 | -718.0 | -633.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
