SDO HMI 2014-04-06 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.13 | 0.00 | 7.96 | -16.59 | 352.30 | -15.79 | 127.17 | 0.3334 | -645.1 | -515.3 | |
|
previous
or next observation for the same group /

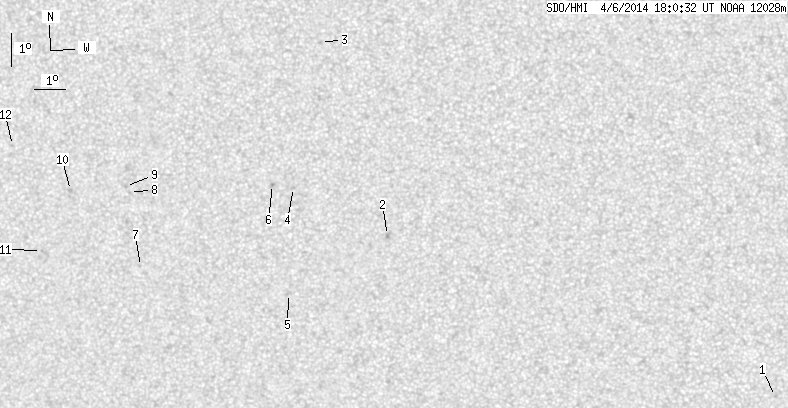

back to the solar disc SDO HMI 2014-04-06 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.59 | -22.47 | 8.77 | 0.68 | 182.26 | 0.2814 | 830.0 | 629.6 | |
| 0.00 | 2.46 | 0.00 | 1.27 | -17.36 | 356.48 | -11.60 | 135.52 | 0.2751 | -982.0 | -772.4 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -11.47 | 354.70 | -13.38 | 112.59 | 0.2468 | -833.0 | -609.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -15.83 | 353.57 | -14.51 | 125.23 | 0.2965 | -988.0 | -751.2 | |
| 0.00 | 1.85 | 0.00 | 0.97 | -19.06 | 353.14 | -14.95 | 132.80 | 0.3337 | -359.0 | -362.5 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -15.72 | 352.90 | -15.18 | 123.79 | 0.3047 | -1016.0 | -895.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -18.08 | 348.33 | -19.75 | 123.36 | 0.3863 | -591.0 | -434.0 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -15.81 | 348.22 | -19.87 | 117.85 | 0.3714 | -699.0 | -546.9 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -15.62 | 348.11 | -19.98 | 117.27 | 0.3718 | -882.0 | -590.1 | |
| 0.00 | 2.20 | 0.00 | 1.19 | -15.67 | 346.27 | -21.82 | 115.63 | 0.3986 | -796.0 | -575.0 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -17.46 | 345.06 | -23.02 | 118.56 | 0.4266 | -691.0 | -570.6 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -14.23 | 344.48 | -23.61 | 110.88 | 0.4173 | -734.0 | -589.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
