SDO HMI 2014-04-06 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.49 | 374.31 | 31.34 | 190.15 | -11.42 | 18.54 | 11.01 | 240.89 | 0.2135 | -56.0 | -222.0 | |
|
previous
or next observation for the same group /

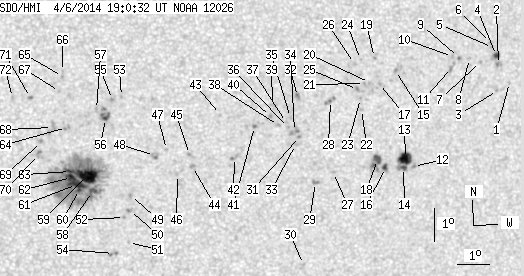

back to the solar disc SDO HMI 2014-04-06 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.56 | -8.87 | 29.19 | 21.65 | 261.61 | 0.3701 | 629.0 | 510.4 | |
| 0.00 | 2.90 | 0.00 | 1.54 | -8.34 | 28.80 | 21.26 | 262.95 | 0.3631 | 860.0 | 757.8 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.12 | 28.81 | 21.28 | 260.81 | 0.3645 | 740.0 | 539.7 | |
| 1.94 | 4.31 | 1.03 | 2.29 | -8.08 | 28.72 | 21.18 | 263.67 | 0.3615 | 1026.5 | 831.7 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -7.84 | 28.57 | 21.04 | 264.30 | 0.3590 | 893.0 | 751.7 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -7.69 | 28.50 | 20.97 | 264.71 | 0.3577 | 817.0 | 561.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -8.28 | 28.21 | 20.68 | 263.02 | 0.3536 | 662.0 | 500.9 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -8.20 | 27.85 | 20.32 | 263.16 | 0.3476 | 733.0 | 499.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -8.18 | 27.49 | 19.96 | 263.13 | 0.3418 | 824.0 | 769.7 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -8.16 | 27.30 | 19.77 | 263.16 | 0.3386 | 850.0 | 725.9 | |
| 0.00 | 4.22 | 0.00 | 2.22 | -8.49 | 27.28 | 19.75 | 262.18 | 0.3388 | 790.0 | 580.0 | |
| 0.00 | 2.20 | 0.00 | 1.15 | -11.50 | 26.24 | 18.71 | 252.73 | 0.3305 | 727.0 | 603.0 | |
| 10.73 | 20.06 | 5.62 | 10.50 | -11.27 | 25.96 | 18.43 | 253.22 | 0.3253 | 1126.9 | 749.9 | |
| 1.58 | -13.00 | 0.83 | -13.00 | -11.54 | 25.92 | 18.38 | 252.37 | 0.3257 | 944.7 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.82 | -8.64 | 25.49 | 17.96 | 261.15 | 0.3099 | 1009.0 | 798.8 | |
| 1.76 | 3.34 | 0.92 | 1.74 | -11.56 | 25.34 | 17.81 | 251.85 | 0.3167 | 1010.8 | 762.6 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -9.04 | 25.00 | 17.47 | 259.63 | 0.3028 | 897.0 | 800.1 | |
| 3.78 | 11.96 | 1.97 | 6.23 | -11.33 | 25.07 | 17.53 | 252.35 | 0.3114 | 1144.3 | 902.1 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.27 | 24.81 | 17.28 | 262.13 | 0.2980 | 816.0 | 703.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.02 | 24.69 | 17.15 | 259.55 | 0.2975 | 864.0 | 662.3 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -9.06 | 24.53 | 17.00 | 259.36 | 0.2950 | 857.0 | 705.5 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.84 | 24.47 | 16.94 | 256.70 | 0.2963 | 803.0 | 554.8 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.51 | 24.42 | 16.89 | 257.78 | 0.2945 | 869.0 | 706.5 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -8.34 | 24.37 | 16.84 | 261.73 | 0.2909 | 816.0 | 683.9 | |
| 0.00 | 1.94 | 0.00 | 1.00 | -9.25 | 24.31 | 16.78 | 258.62 | 0.2920 | 939.0 | 833.1 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -8.47 | 24.18 | 16.65 | 261.22 | 0.2881 | 836.0 | 645.6 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -11.76 | 23.69 | 16.15 | 249.69 | 0.2917 | 33.0 | -65.0 | |
| 0.00 | 5.10 | 0.00 | 2.63 | -9.60 | 23.48 | 15.94 | 256.88 | 0.2793 | 990.0 | 768.4 | |
| 0.00 | 2.73 | 0.00 | 1.41 | -12.08 | 23.13 | 15.60 | 248.04 | 0.2848 | -921.0 | -701.8 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -14.57 | 22.91 | 15.37 | 239.87 | 0.2980 | 752.0 | 636.9 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -10.71 | 22.55 | 15.02 | 252.16 | 0.2686 | 909.0 | 800.9 | |
| 0.00 | 3.17 | 0.00 | 1.62 | -9.51 | 22.43 | 14.90 | 256.48 | 0.2620 | 1258.0 | 913.6 | |
| 0.00 | 2.20 | 0.00 | 1.13 | -10.95 | 22.44 | 14.90 | 251.17 | 0.2680 | 820.0 | 646.7 | |
| 0.00 | 5.19 | 0.00 | 2.67 | -10.56 | 22.38 | 14.85 | 252.53 | 0.2653 | 838.0 | 861.0 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -10.15 | 22.24 | 14.71 | 253.93 | 0.2612 | 784.0 | 669.2 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -10.45 | 22.19 | 14.66 | 252.76 | 0.2617 | 911.0 | 703.5 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -10.30 | 22.12 | 14.59 | 253.25 | 0.2599 | 935.0 | 683.4 | |
| 0.00 | 1.67 | 0.00 | 0.86 | -10.40 | 21.87 | 14.34 | 252.64 | 0.2564 | 883.0 | 709.2 | |
| 0.00 | 2.11 | 0.00 | 1.08 | -9.77 | 21.66 | 14.12 | 254.84 | 0.2503 | 682.0 | 554.3 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -10.13 | 21.61 | 14.08 | 253.39 | 0.2510 | 932.0 | 756.3 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -10.44 | 21.12 | 13.59 | 251.64 | 0.2445 | 1031.0 | 855.2 | |
| 0.00 | 2.64 | 0.00 | 1.35 | -11.39 | 20.53 | 13.00 | 247.17 | 0.2404 | -510.0 | -693.9 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -10.11 | 20.04 | 12.51 | 251.74 | 0.2256 | 801.0 | 569.0 | |
| 0.00 | 2.02 | 0.00 | 1.03 | -11.69 | 19.23 | 11.70 | 243.84 | 0.2222 | -907.0 | -723.0 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -11.33 | 19.12 | 11.59 | 245.14 | 0.2181 | -886.0 | -679.9 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -11.94 | 18.77 | 11.24 | 241.92 | 0.2171 | -723.0 | -526.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -11.19 | 18.40 | 10.87 | 244.40 | 0.2060 | -721.0 | -521.3 | |
| 0.00 | 4.75 | 0.00 | 2.40 | -11.38 | 18.03 | 10.50 | 242.82 | 0.2018 | -747.0 | -765.2 | |
| 0.00 | 1.85 | 0.00 | 0.93 | -12.60 | 17.33 | 9.80 | 235.85 | 0.2016 | -891.0 | -748.4 | |
| 0.00 | 2.29 | 0.00 | 1.16 | -13.05 | 17.32 | 9.79 | 233.95 | 0.2057 | -861.0 | -793.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -14.02 | 17.33 | 9.79 | 230.24 | 0.2156 | -754.0 | -597.8 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -13.27 | 17.17 | 9.64 | 232.69 | 0.2058 | -918.0 | -760.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -9.63 | 16.96 | 9.42 | 249.34 | 0.1733 | -722.0 | -530.4 | |
| 0.00 | 2.81 | 0.00 | 1.43 | -14.36 | 16.87 | 9.34 | 227.70 | 0.2135 | -562.0 | -660.0 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -9.72 | 16.68 | 9.15 | 248.28 | 0.1695 | -994.0 | -889.5 | |
| 1.50 | 8.80 | 0.75 | 4.42 | -10.29 | 16.48 | 8.95 | 244.69 | 0.1701 | -1167.7 | -944.1 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -10.03 | 16.20 | 8.66 | 245.49 | 0.1638 | -815.0 | -620.2 | |
| 2.99 | 213.14 | 1.51 | 107.22 | -12.50 | 16.15 | 8.61 | 232.90 | 0.1841 | -842.9 | -502.8 | |
| 18.65 | -58.00 | 9.38 | -58.00 | -12.02 | 15.98 | 8.44 | 234.57 | 0.1771 | -1346.0 | 999999 | |
| 1.50 | -58.00 | 0.75 | -58.00 | -12.44 | 15.74 | 8.21 | 231.85 | 0.1781 | -997.8 | 999999 | |
| 8.88 | -58.00 | 4.47 | -58.00 | -12.29 | 15.64 | 8.11 | 232.21 | 0.1752 | -1169.0 | 999999 | |
| 6.07 | -58.00 | 3.05 | -58.00 | -12.08 | 15.48 | 7.95 | 232.65 | 0.1709 | -1330.4 | 999999 | |
| 2.11 | -58.00 | 1.06 | -58.00 | -11.90 | 15.45 | 7.91 | 233.39 | 0.1686 | -1279.4 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.41 | -10.58 | 15.29 | 7.75 | 239.85 | 0.1541 | -961.0 | -932.8 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.05 | 15.13 | 7.60 | 248.91 | 0.1406 | -901.0 | -579.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.90 | 15.13 | 7.60 | 249.92 | 0.1397 | -864.0 | -589.8 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.50 | 15.05 | 7.52 | 245.71 | 0.1422 | -915.0 | -669.7 | |
| 0.00 | 7.13 | 0.00 | 3.57 | -10.59 | 14.86 | 7.32 | 238.42 | 0.1478 | -770.0 | -718.9 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -11.01 | 14.53 | 7.00 | 234.79 | 0.1470 | -989.0 | -830.3 | |
| 0.00 | 3.17 | 0.00 | 1.59 | -11.40 | 14.44 | 6.91 | 232.31 | 0.1498 | -867.0 | -858.0 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -9.69 | 14.16 | 6.63 | 241.68 | 0.1299 | -1063.0 | -874.7 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -9.70 | 13.61 | 6.08 | 239.57 | 0.1216 | -841.0 | -653.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
