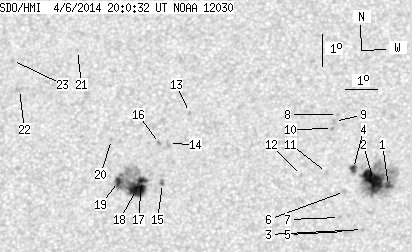

SDO HMI 2014-04-06 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.04 | 191.97 | 31.76 | 100.00 | 10.23 | 0.63 | -6.35 | 20.14 | 0.3092 | -301.8 | -276.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.43 | 90.08 | 1.77 | 46.56 | 9.93 | 4.40 | -2.58 | 9.06 | 0.2828 | -939.9 | -466.6 | |
| 27.27 | -1.00 | 14.09 | -1.00 | 10.09 | 3.94 | -3.04 | 10.53 | 0.2867 | -1259.7 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 8.56 | 3.62 | -3.36 | 12.81 | 0.2627 | -946.0 | -710.0 | |
| 2.90 | 4.49 | 1.50 | 2.32 | 10.47 | 3.33 | -3.65 | 12.31 | 0.2950 | -975.8 | -769.4 | |
| 0.00 | 3.69 | 0.00 | 1.90 | 8.51 | 3.13 | -3.85 | 14.64 | 0.2636 | -903.0 | -656.2 | |
| 0.00 | 2.55 | 0.00 | 1.32 | 9.75 | 3.06 | -3.92 | 13.77 | 0.2843 | -905.0 | -624.3 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 8.94 | 2.92 | -4.06 | 15.00 | 0.2717 | -790.0 | -609.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 12.17 | 2.82 | -4.16 | 12.69 | 0.3245 | -670.0 | -462.9 | |
| 0.00 | 2.20 | 0.00 | 1.15 | 11.95 | 2.73 | -4.25 | 13.11 | 0.3213 | -761.0 | -673.1 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 11.73 | 2.67 | -4.31 | 13.44 | 0.3180 | -1037.0 | -822.4 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 10.35 | 2.50 | -4.48 | 15.08 | 0.2963 | -859.0 | -556.5 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 10.26 | 1.74 | -5.24 | 17.60 | 0.2985 | -642.0 | -557.8 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 12.30 | 358.24 | -8.74 | 25.14 | 0.3510 | 806.0 | 647.8 | |
| 0.00 | 1.94 | 0.00 | 1.02 | 11.33 | 357.62 | -9.36 | 27.98 | 0.3414 | 805.0 | 692.3 | |
| 0.44 | 2.99 | 0.23 | 1.57 | 10.08 | 357.47 | -9.51 | 30.22 | 0.3245 | 1084.2 | 867.6 | |
| 0.00 | 1.85 | 0.00 | 0.97 | 11.34 | 357.34 | -9.64 | 28.68 | 0.3436 | 961.0 | 742.6 | |
| 4.57 | 65.54 | 2.40 | 34.42 | 10.19 | 356.82 | -10.16 | 31.73 | 0.3316 | 988.4 | -172.0 | |
| 18.65 | -17.00 | 9.78 | -17.00 | 9.91 | 356.67 | -10.31 | 32.55 | 0.3290 | 855.8 | 999999 | |
| 3.78 | -17.00 | 1.99 | -17.00 | 10.17 | 356.11 | -10.87 | 33.52 | 0.3377 | -1154.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 11.50 | 355.84 | -11.14 | 32.05 | 0.3582 | -832.0 | -691.2 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 14.35 | 354.64 | -12.34 | 30.68 | 0.4075 | 657.0 | 546.7 | |
| 0.00 | 3.61 | 0.00 | 1.95 | 13.15 | 352.87 | -14.11 | 35.85 | 0.4071 | 847.0 | 687.3 | |
| 0.00 | 2.11 | 0.00 | 1.15 | 14.09 | 352.59 | -14.39 | 35.04 | 0.4216 | 653.0 | 460.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
