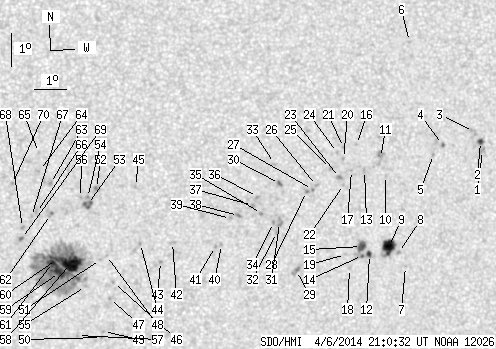

SDO HMI 2014-04-06 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.05 | 346.73 | 28.79 | 176.94 | -11.36 | 18.70 | 12.27 | 243.76 | 0.2320 | -56.4 | -237.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.43 | 0.00 | 1.84 | -8.27 | 28.90 | 22.47 | 263.38 | 0.3824 | 803.0 | 644.3 | |
| 1.76 | 2.99 | 0.94 | 1.60 | -8.00 | 28.82 | 22.39 | 264.07 | 0.3808 | 968.8 | 817.4 | |
| 0.00 | 3.87 | 0.00 | 2.07 | -7.71 | 28.57 | 22.14 | 264.81 | 0.3767 | 587.0 | 634.2 | |
| 0.35 | 1.32 | 0.19 | 0.70 | -8.14 | 27.58 | 21.16 | 263.50 | 0.3611 | 807.0 | 722.7 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -8.45 | 27.31 | 20.88 | 262.58 | 0.3571 | 780.0 | 582.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -5.09 | 26.39 | 19.96 | 272.23 | 0.3418 | 730.0 | 587.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.84 | 26.62 | 20.19 | 252.81 | 0.3552 | 617.0 | 449.1 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -11.43 | 26.36 | 19.93 | 253.78 | 0.3495 | 672.0 | 537.6 | |
| 12.49 | 17.86 | 6.59 | 9.41 | -11.26 | 26.02 | 19.60 | 254.04 | 0.3436 | 1045.3 | 709.1 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -9.13 | 25.79 | 19.37 | 260.14 | 0.3338 | 388.0 | 402.6 | |
| 0.00 | 7.83 | 0.00 | 4.11 | -8.60 | 25.60 | 19.18 | 261.69 | 0.3297 | 779.0 | 682.1 | |
| 1.85 | 16.45 | 0.97 | 8.63 | -11.52 | 25.43 | 19.00 | 252.88 | 0.3352 | 834.5 | 723.1 | |
| 0.00 | 1.85 | 0.00 | 0.97 | -9.01 | 25.11 | 18.68 | 260.27 | 0.3224 | 984.0 | 744.9 | |
| 0.53 | -12.00 | 0.28 | -12.00 | -11.56 | 25.20 | 18.77 | 252.61 | 0.3319 | 855.0 | 999999 | |
| 4.40 | -12.00 | 2.31 | -12.00 | -11.29 | 25.15 | 18.72 | 253.37 | 0.3300 | 1103.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -8.23 | 24.82 | 18.39 | 262.58 | 0.3163 | 830.0 | 628.5 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -9.02 | 24.70 | 18.27 | 260.06 | 0.3157 | 937.0 | 788.0 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -11.97 | 24.81 | 18.38 | 251.11 | 0.3275 | 838.0 | 645.6 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.55 | 24.65 | 18.22 | 252.23 | 0.3232 | 820.0 | 622.9 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -8.67 | 24.42 | 18.00 | 261.07 | 0.3105 | 877.0 | 732.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.34 | 24.41 | 17.98 | 262.13 | 0.3097 | 795.0 | 613.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -9.45 | 24.46 | 18.04 | 258.60 | 0.3129 | 763.0 | 637.7 | |
| 0.00 | 2.64 | 0.00 | 1.37 | -9.24 | 24.32 | 17.90 | 259.19 | 0.3102 | 987.0 | 837.2 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -8.49 | 24.22 | 17.80 | 261.57 | 0.3069 | 813.0 | 638.4 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -8.98 | 24.02 | 17.60 | 259.90 | 0.3047 | 981.0 | 817.7 | |
| 0.00 | 1.67 | 0.00 | 0.87 | -9.50 | 23.60 | 17.18 | 257.97 | 0.2991 | 947.0 | 715.7 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -9.63 | 23.48 | 17.06 | 257.49 | 0.2975 | 793.0 | 672.0 | |
| 0.00 | 1.67 | 0.00 | 0.87 | -9.69 | 23.29 | 16.87 | 257.16 | 0.2947 | 922.0 | 716.9 | |
| 0.00 | 4.49 | 0.00 | 2.33 | -12.08 | 23.11 | 16.68 | 249.22 | 0.3016 | -852.0 | -663.1 | |
| 0.62 | 2.02 | 0.32 | 1.04 | -9.48 | 22.43 | 16.00 | 257.35 | 0.2799 | 1030.1 | 818.6 | |
| 0.00 | 4.40 | 0.00 | 2.27 | -10.65 | 22.49 | 16.06 | 253.33 | 0.2851 | 677.0 | 757.4 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -10.95 | 22.41 | 15.98 | 252.23 | 0.2851 | 821.0 | 686.6 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -8.88 | 22.24 | 15.82 | 259.37 | 0.2752 | 608.0 | 478.8 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -10.66 | 22.30 | 15.87 | 253.15 | 0.2820 | 1024.0 | 875.7 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -10.40 | 21.90 | 15.48 | 253.71 | 0.2747 | 889.0 | 790.3 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -9.89 | 21.75 | 15.32 | 255.41 | 0.2703 | 849.0 | 733.8 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -10.16 | 21.61 | 15.18 | 254.29 | 0.2689 | 907.0 | 807.6 | |
| 0.00 | 2.29 | 0.00 | 1.17 | -10.47 | 21.18 | 14.75 | 252.76 | 0.2634 | 1013.0 | 823.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -10.57 | 20.93 | 14.51 | 252.15 | 0.2598 | 825.0 | 702.6 | |
| 0.00 | 1.67 | 0.00 | 0.86 | -11.36 | 20.69 | 14.26 | 248.96 | 0.2599 | -679.0 | -451.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -11.43 | 20.50 | 14.07 | 248.49 | 0.2573 | -809.0 | -658.0 | |
| 0.00 | 2.64 | 0.00 | 1.34 | -11.34 | 19.14 | 12.72 | 246.96 | 0.2356 | -787.0 | -580.0 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -11.92 | 18.79 | 12.37 | 244.10 | 0.2340 | -802.0 | -598.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -11.39 | 18.14 | 11.72 | 245.12 | 0.2204 | -812.0 | -636.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -9.68 | 17.93 | 11.50 | 252.36 | 0.2071 | -753.0 | -611.7 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.58 | 17.35 | 10.92 | 238.64 | 0.2176 | -833.0 | -646.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -13.06 | 17.24 | 10.82 | 236.49 | 0.2203 | -964.0 | -815.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -11.77 | 17.10 | 10.67 | 241.47 | 0.2073 | -613.0 | -554.5 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -14.07 | 17.10 | 10.67 | 232.40 | 0.2278 | -869.0 | -679.9 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -14.25 | 17.05 | 10.62 | 231.62 | 0.2289 | -851.0 | -700.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -11.89 | 16.92 | 10.49 | 240.53 | 0.2055 | -781.0 | -596.6 | |
| 0.00 | 2.55 | 0.00 | 1.29 | -9.76 | 16.72 | 10.29 | 250.17 | 0.1880 | -931.0 | -762.9 | |
| 0.00 | 5.98 | 0.00 | 3.02 | -10.25 | 16.46 | 10.03 | 247.25 | 0.1867 | -1024.0 | -991.5 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -10.04 | 16.45 | 10.02 | 248.30 | 0.1853 | -944.0 | -733.5 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -12.72 | 16.48 | 10.05 | 236.02 | 0.2063 | -501.0 | -367.4 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -10.04 | 16.23 | 9.81 | 247.87 | 0.1819 | -733.0 | -580.9 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -14.20 | 16.29 | 9.86 | 229.78 | 0.2185 | -829.0 | -638.9 | |
| 21.47 | 202.44 | 10.84 | 102.13 | -12.03 | 15.99 | 9.56 | 237.69 | 0.1931 | -1258.2 | -529.9 | |
| 8.89 | -58.00 | 4.48 | -58.00 | -12.31 | 15.65 | 9.23 | 235.56 | 0.1908 | -1175.6 | 999999 | |
| 1.58 | -58.00 | 0.80 | -58.00 | -11.92 | 15.55 | 9.12 | 237.03 | 0.1857 | -1308.3 | 999999 | |
| 1.76 | -58.00 | 0.89 | -58.00 | -12.01 | 15.43 | 9.00 | 236.26 | 0.1849 | -1427.9 | 999999 | |
| 0.00 | 2.38 | 0.00 | 1.19 | -10.57 | 15.32 | 8.89 | 243.11 | 0.1712 | -1037.0 | -932.6 | |
| 0.00 | 2.02 | 0.00 | 1.02 | -9.63 | 15.30 | 8.87 | 248.18 | 0.1645 | -972.0 | -779.6 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -9.25 | 14.95 | 8.52 | 249.72 | 0.1567 | -672.0 | -559.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -8.71 | 14.91 | 8.48 | 252.98 | 0.1531 | -752.0 | -597.9 | |
| 0.00 | 2.20 | 0.00 | 1.10 | -10.51 | 14.89 | 8.46 | 242.28 | 0.1642 | -895.0 | -733.6 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -10.63 | 14.74 | 8.31 | 241.20 | 0.1629 | -846.0 | -609.4 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -10.97 | 14.47 | 8.04 | 238.59 | 0.1617 | -945.0 | -796.1 | |
| 0.35 | 1.85 | 0.18 | 0.93 | -11.30 | 14.45 | 8.02 | 236.77 | 0.1643 | -1102.5 | -858.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -9.65 | 14.13 | 7.70 | 245.28 | 0.1461 | -942.0 | -763.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
