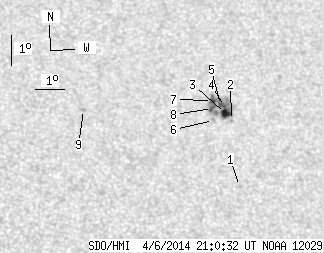

SDO HMI 2014-04-06 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.11 | 46.01 | 7.81 | 27.40 | 17.62 | 30.50 | 24.07 | 315.49 | 0.5566 | -758.3 | -537.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.72 | 15.23 | 30.97 | 24.55 | 311.62 | 0.5383 | -699.0 | -562.5 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 17.37 | 30.99 | 24.56 | 314.57 | 0.5590 | -812.0 | -674.5 | |
| 6.51 | 40.12 | 3.88 | 23.95 | 17.59 | 30.81 | 24.39 | 315.06 | 0.5594 | -948.8 | -590.1 | |
| 1.14 | -3.00 | 0.68 | -3.00 | 17.82 | 30.81 | 24.39 | 315.36 | 0.5616 | -868.4 | 999999 | |
| 1.32 | -3.00 | 0.79 | -3.00 | 17.88 | 30.68 | 24.26 | 315.59 | 0.5609 | -888.3 | 999999 | |
| 0.00 | 2.02 | 0.00 | 1.20 | 17.34 | 30.36 | 23.94 | 315.26 | 0.5523 | -840.0 | -722.1 | |
| 1.76 | -3.00 | 1.05 | -3.00 | 18.00 | 30.42 | 24.00 | 316.05 | 0.5595 | -921.5 | 999999 | |
| 2.38 | -3.00 | 1.41 | -3.00 | 17.73 | 30.39 | 23.96 | 315.75 | 0.5565 | -1048.7 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.01 | 17.52 | 25.98 | 19.55 | 321.17 | 0.5111 | 816.0 | 614.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
