SDO HMI 2014-04-06 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.19 | 335.61 | 29.43 | 171.59 | -11.48 | 18.66 | 12.78 | 244.28 | 0.2405 | -48.7 | -244.4 | |
|
previous
or next observation for the same group /

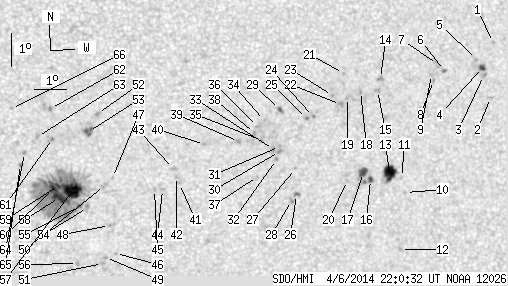

back to the solar disc SDO HMI 2014-04-06 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.66 | -7.21 | 29.21 | 23.33 | 266.20 | 0.3955 | 745.0 | 576.2 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -8.86 | 29.21 | 23.33 | 262.01 | 0.3969 | 461.0 | 404.5 | |
| 0.00 | 2.64 | 0.00 | 1.42 | -8.21 | 28.94 | 23.06 | 263.61 | 0.3918 | 747.0 | 632.7 | |
| 2.29 | 3.61 | 1.23 | 1.94 | -7.97 | 28.89 | 23.01 | 264.22 | 0.3908 | 930.7 | 744.0 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -7.74 | 28.68 | 22.80 | 264.79 | 0.3873 | 772.0 | 689.6 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -8.11 | 27.65 | 21.78 | 263.67 | 0.3711 | 836.0 | 678.7 | |
| 0.00 | 3.52 | 0.00 | 1.87 | -7.94 | 27.41 | 21.54 | 264.10 | 0.3671 | 670.0 | 619.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -8.43 | 27.31 | 21.44 | 262.75 | 0.3660 | 675.0 | 561.3 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -8.25 | 27.23 | 21.36 | 263.22 | 0.3646 | 818.0 | 607.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -11.82 | 26.62 | 20.75 | 253.22 | 0.3638 | 634.0 | 473.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.38 | 26.46 | 20.59 | 254.32 | 0.3596 | 551.0 | 467.2 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -13.55 | 26.61 | 20.73 | 248.66 | 0.3711 | 731.0 | 559.9 | |
| 12.76 | 17.16 | 6.75 | 9.08 | -11.24 | 26.06 | 20.18 | 254.46 | 0.3528 | 1006.2 | 640.3 | |
| 0.00 | 2.55 | 0.00 | 1.34 | -8.43 | 25.59 | 19.72 | 262.34 | 0.3382 | 840.0 | 772.9 | |
| 0.00 | 2.55 | 0.00 | 1.34 | -8.79 | 25.52 | 19.64 | 261.24 | 0.3376 | 861.0 | 723.4 | |
| 1.58 | 6.60 | 0.84 | 3.48 | -11.47 | 25.46 | 19.58 | 253.43 | 0.3442 | 889.4 | 708.6 | |
| 4.31 | 7.57 | 2.27 | 3.98 | -11.27 | 25.21 | 19.34 | 253.84 | 0.3396 | 1080.4 | 835.4 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -8.84 | 24.97 | 19.10 | 260.92 | 0.3288 | 851.0 | 741.2 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -9.04 | 24.56 | 18.69 | 260.17 | 0.3226 | 796.0 | 596.8 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.53 | 24.71 | 18.84 | 252.75 | 0.3328 | 645.0 | 496.6 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -8.32 | 24.40 | 18.52 | 262.35 | 0.3186 | 773.0 | 656.3 | |
| 0.00 | 2.73 | 0.00 | 1.43 | -9.25 | 24.35 | 18.48 | 259.41 | 0.3196 | 935.0 | 803.8 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -8.99 | 24.08 | 18.21 | 260.12 | 0.3146 | 956.0 | 810.6 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -9.64 | 23.51 | 17.63 | 257.77 | 0.3069 | 838.0 | 700.3 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -9.71 | 23.29 | 17.41 | 257.43 | 0.3036 | 770.0 | 696.9 | |
| 0.00 | 2.99 | 0.00 | 1.56 | -12.00 | 23.10 | 17.23 | 249.98 | 0.3097 | -644.0 | -391.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -11.22 | 23.02 | 17.15 | 252.36 | 0.3048 | -682.0 | -475.4 | |
| 0.00 | 2.55 | 0.00 | 1.33 | -12.19 | 22.95 | 17.08 | 249.26 | 0.3083 | -819.0 | -635.8 | |
| 0.88 | 2.90 | 0.46 | 1.50 | -9.46 | 22.42 | 16.54 | 257.73 | 0.2887 | 865.4 | 685.6 | |
| 0.00 | 2.29 | 0.00 | 1.19 | -10.73 | 22.48 | 16.61 | 253.53 | 0.2941 | 983.0 | 777.3 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -10.58 | 22.47 | 16.60 | 254.02 | 0.2934 | 817.0 | 682.9 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -10.97 | 22.40 | 16.52 | 252.65 | 0.2938 | 847.0 | 751.9 | |
| 0.00 | 1.85 | 0.00 | 0.96 | -10.67 | 22.29 | 16.41 | 253.55 | 0.2908 | 998.0 | 788.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.81 | 21.96 | 16.08 | 256.25 | 0.2823 | 863.0 | 714.8 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -10.41 | 21.89 | 16.02 | 254.11 | 0.2834 | 829.0 | 729.7 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -9.99 | 21.74 | 15.87 | 255.44 | 0.2795 | 764.0 | 658.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -11.50 | 21.82 | 15.95 | 250.36 | 0.2872 | 749.0 | 592.3 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -10.21 | 21.66 | 15.79 | 254.63 | 0.2789 | 957.0 | 812.3 | |
| 0.00 | 2.11 | 0.00 | 1.09 | -10.46 | 21.17 | 15.29 | 253.31 | 0.2720 | 956.0 | 802.8 | |
| 0.00 | 1.67 | 0.00 | 0.86 | -10.58 | 20.10 | 14.22 | 251.82 | 0.2554 | 866.0 | 634.6 | |
| 0.00 | 1.85 | 0.00 | 0.95 | -11.77 | 19.37 | 13.49 | 246.42 | 0.2504 | -754.0 | -480.7 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -11.56 | 19.26 | 13.39 | 247.05 | 0.2475 | -747.0 | -656.5 | |
| 0.00 | 2.99 | 0.00 | 1.53 | -11.32 | 19.16 | 13.28 | 247.82 | 0.2444 | -783.0 | -561.0 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -11.96 | 18.84 | 12.97 | 244.90 | 0.2435 | -814.0 | -656.6 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -11.97 | 18.59 | 12.72 | 244.47 | 0.2397 | -863.0 | -661.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -13.93 | 17.46 | 11.58 | 235.03 | 0.2389 | -701.0 | -590.8 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -11.64 | 17.26 | 11.39 | 243.47 | 0.2171 | -475.0 | -395.7 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -13.09 | 17.23 | 11.35 | 237.61 | 0.2281 | -918.0 | -728.9 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -14.06 | 17.15 | 11.27 | 233.88 | 0.2358 | -816.0 | -690.3 | |
| 0.00 | 3.78 | 0.00 | 1.92 | -11.88 | 17.02 | 11.15 | 241.97 | 0.2153 | -522.0 | -590.7 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -14.24 | 17.06 | 11.19 | 233.04 | 0.2365 | -769.0 | -600.4 | |
| 0.00 | 2.55 | 0.00 | 1.29 | -9.72 | 16.73 | 10.85 | 251.24 | 0.1969 | -813.0 | -712.4 | |
| 0.00 | 6.16 | 0.00 | 3.11 | -10.27 | 16.46 | 10.59 | 248.17 | 0.1957 | -1094.0 | -943.4 | |
| 0.00 | 2.20 | 0.00 | 1.12 | -12.56 | 16.52 | 10.64 | 238.10 | 0.2133 | -754.0 | -607.7 | |
| 0.97 | 200.26 | 0.49 | 101.19 | -12.53 | 16.27 | 10.39 | 237.61 | 0.2095 | -855.0 | -504.3 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -14.25 | 16.28 | 10.40 | 231.04 | 0.2261 | -841.0 | -709.8 | |
| 19.97 | -55.00 | 10.10 | -55.00 | -12.05 | 16.03 | 10.15 | 239.07 | 0.2019 | -1229.1 | 999999 | |
| 8.62 | -55.00 | 4.36 | -55.00 | -12.27 | 15.63 | 9.76 | 237.14 | 0.1980 | -1157.7 | 999999 | |
| 2.55 | -55.00 | 1.29 | -55.00 | -11.91 | 15.59 | 9.71 | 238.62 | 0.1943 | -1274.5 | 999999 | |
| 3.26 | -55.00 | 1.64 | -55.00 | -12.00 | 15.44 | 9.56 | 237.82 | 0.1928 | -1380.3 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -10.50 | 15.36 | 9.48 | 244.84 | 0.1798 | -988.0 | -885.8 | |
| 0.00 | 1.85 | 0.00 | 0.93 | -9.60 | 15.27 | 9.39 | 249.44 | 0.1727 | -944.0 | -828.6 | |
| 0.00 | 2.20 | 0.00 | 1.11 | -10.44 | 14.89 | 9.02 | 244.05 | 0.1722 | -931.0 | -689.4 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -10.93 | 14.50 | 8.63 | 240.49 | 0.1701 | -949.0 | -765.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.29 | 14.39 | 8.52 | 238.31 | 0.1715 | -1042.0 | -952.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.61 | 14.07 | 8.19 | 246.76 | 0.1537 | -889.0 | -699.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
