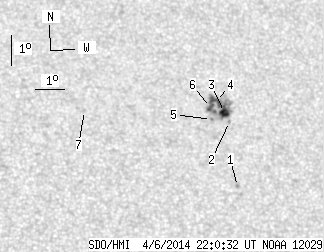

SDO HMI 2014-04-06 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.22 | 47.43 | 9.13 | 28.38 | 17.64 | 30.50 | 24.63 | 314.86 | 0.5624 | -746.0 | -494.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.85 | 0.00 | 1.09 | 15.22 | 30.94 | 25.06 | 311.02 | 0.5439 | -764.0 | -582.0 | |
| 0.00 | 1.23 | 0.00 | 0.74 | 17.33 | 30.95 | 25.08 | 313.92 | 0.5639 | -754.0 | -627.4 | |
| 7.04 | 41.62 | 4.22 | 24.95 | 17.61 | 30.82 | 24.95 | 314.45 | 0.5654 | -923.6 | -536.3 | |
| 5.54 | -3.00 | 3.33 | -3.00 | 17.96 | 30.56 | 24.69 | 315.21 | 0.5661 | -841.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 17.36 | 30.34 | 24.46 | 314.68 | 0.5579 | -774.0 | -700.8 | |
| 2.64 | -3.00 | 1.58 | -3.00 | 17.76 | 30.36 | 24.48 | 315.17 | 0.5620 | -977.8 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.97 | 17.47 | 26.03 | 20.15 | 320.27 | 0.5163 | 740.0 | 529.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
