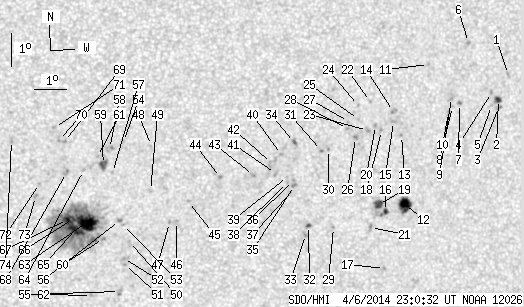

SDO HMI 2014-04-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.68 | 324.80 | 29.22 | 166.62 | -11.25 | 18.94 | 13.61 | 246.40 | 0.2521 | -23.5 | -205.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.20 | 0.00 | 1.19 | -7.18 | 29.25 | 23.93 | 266.28 | 0.4050 | 637.0 | 471.2 | |
| 2.29 | 3.87 | 1.24 | 2.09 | -7.95 | 28.96 | 23.64 | 264.36 | 0.4008 | 894.2 | 767.2 | |
| 0.00 | 2.46 | 0.00 | 1.33 | -8.19 | 28.98 | 23.65 | 263.76 | 0.4012 | 777.0 | 662.8 | |
| 0.00 | 1.85 | 0.00 | 1.00 | -7.75 | 28.72 | 23.40 | 264.84 | 0.3968 | 814.0 | 654.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -8.14 | 28.74 | 23.42 | 263.86 | 0.3974 | 706.0 | 484.8 | |
| 0.00 | 1.76 | 0.00 | 0.94 | -6.28 | 27.89 | 22.57 | 268.60 | 0.3832 | 729.0 | 588.8 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -8.12 | 27.69 | 22.37 | 263.75 | 0.3806 | 834.0 | 701.7 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -8.22 | 27.46 | 22.14 | 263.45 | 0.3771 | 686.0 | 529.8 | |
| 0.00 | 3.87 | 0.00 | 2.07 | -7.95 | 27.42 | 22.09 | 264.16 | 0.3761 | 622.0 | 625.4 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -8.40 | 27.34 | 22.02 | 262.93 | 0.3754 | 760.0 | 628.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -6.99 | 26.62 | 21.30 | 266.69 | 0.3627 | 735.0 | 611.0 | |
| 12.06 | 15.22 | 6.40 | 8.09 | -11.22 | 26.09 | 20.77 | 254.86 | 0.3619 | 970.4 | 697.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -9.15 | 25.86 | 20.53 | 260.49 | 0.3527 | 771.0 | 637.0 | |
| 0.00 | 2.90 | 0.00 | 1.53 | -8.44 | 25.56 | 20.24 | 262.44 | 0.3466 | 884.0 | 706.6 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -8.74 | 25.57 | 20.25 | 261.58 | 0.3474 | 865.0 | 760.0 | |
| 1.41 | 13.29 | 0.75 | 7.02 | -11.45 | 25.49 | 20.17 | 253.86 | 0.3533 | 794.1 | 718.8 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.17 | 25.59 | 20.27 | 249.28 | 0.3622 | 843.0 | 710.2 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -9.02 | 25.20 | 19.88 | 260.64 | 0.3419 | 833.0 | 702.8 | |
| 4.31 | -16.00 | 2.28 | -16.00 | -11.25 | 25.25 | 19.92 | 254.28 | 0.3487 | 1080.0 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -8.88 | 25.00 | 19.68 | 260.99 | 0.3383 | 919.0 | 698.9 | |
| 0.00 | 3.08 | 0.00 | 1.63 | -11.95 | 25.04 | 19.71 | 252.17 | 0.3482 | 972.0 | 689.5 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.17 | 24.80 | 19.48 | 263.06 | 0.3340 | 754.0 | 569.8 | |
| 0.00 | 2.64 | 0.00 | 1.39 | -9.04 | 24.75 | 19.43 | 260.44 | 0.3346 | 841.0 | 706.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.30 | 24.42 | 19.10 | 262.56 | 0.3280 | 705.0 | 558.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -8.72 | 24.44 | 19.12 | 261.29 | 0.3290 | 883.0 | 629.5 | |
| 0.00 | 1.94 | 0.00 | 1.02 | -9.26 | 24.38 | 19.05 | 259.62 | 0.3290 | 1047.0 | 889.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.79 | 24.13 | 18.80 | 260.97 | 0.3240 | 744.0 | 617.7 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -9.00 | 24.11 | 18.78 | 260.31 | 0.3241 | 924.0 | 778.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -11.99 | 23.84 | 18.52 | 251.14 | 0.3297 | 660.0 | 459.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.65 | 23.53 | 18.21 | 258.04 | 0.3163 | 819.0 | 741.0 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -9.69 | 23.31 | 17.99 | 257.80 | 0.3128 | 808.0 | 699.6 | |
| 0.79 | 1.67 | 0.41 | 0.87 | -11.96 | 23.03 | 17.71 | 250.56 | 0.3169 | -600.2 | -437.6 | |
| 0.00 | 2.02 | 0.00 | 1.06 | -12.23 | 22.95 | 17.63 | 249.65 | 0.3171 | -785.0 | -664.0 | |
| 0.44 | 2.38 | 0.23 | 1.23 | -9.47 | 22.44 | 17.11 | 258.02 | 0.2980 | 893.6 | 707.0 | |
| 0.00 | 2.29 | 0.00 | 1.19 | -10.77 | 22.51 | 17.18 | 253.84 | 0.3035 | 836.0 | 679.3 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -10.62 | 22.47 | 17.14 | 254.29 | 0.3023 | 854.0 | 694.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.98 | 22.39 | 17.07 | 253.06 | 0.3025 | 941.0 | 755.4 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.68 | 22.28 | 16.96 | 253.94 | 0.2995 | 922.0 | 776.6 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -10.50 | 22.27 | 16.95 | 254.52 | 0.2987 | 839.0 | 690.0 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -9.85 | 22.04 | 16.72 | 256.54 | 0.2928 | 910.0 | 804.4 | |
| 0.00 | 2.38 | 0.00 | 1.23 | -10.42 | 21.88 | 16.56 | 254.49 | 0.2922 | 756.0 | 586.7 | |
| 0.00 | 5.81 | 0.00 | 3.00 | -10.13 | 21.74 | 16.42 | 255.38 | 0.2888 | 476.0 | 660.5 | |
| 0.00 | 1.76 | 0.00 | 0.91 | -10.50 | 21.19 | 15.86 | 253.65 | 0.2813 | 954.0 | 803.1 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -10.59 | 20.15 | 14.82 | 252.38 | 0.2651 | 917.0 | 760.1 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -11.34 | 19.17 | 13.85 | 248.51 | 0.2534 | -797.0 | -608.7 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -11.95 | 18.82 | 13.50 | 245.76 | 0.2516 | -816.0 | -581.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -11.99 | 18.61 | 13.28 | 245.30 | 0.2485 | -855.0 | -720.0 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -9.68 | 17.94 | 12.62 | 253.68 | 0.2254 | -688.0 | -568.0 | |
| 0.00 | 2.29 | 0.00 | 1.17 | -11.04 | 17.97 | 12.64 | 248.04 | 0.2327 | -676.0 | -485.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -12.59 | 17.38 | 12.05 | 240.93 | 0.2342 | -777.0 | -579.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -13.28 | 17.25 | 11.93 | 238.08 | 0.2381 | -775.0 | -668.8 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -13.10 | 17.21 | 11.89 | 238.66 | 0.2360 | -873.0 | -678.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -12.08 | 17.16 | 11.84 | 242.52 | 0.2272 | -590.0 | -422.5 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -9.58 | 17.07 | 11.75 | 253.11 | 0.2107 | -636.0 | -507.2 | |
| 0.00 | 3.43 | 0.00 | 1.75 | -14.10 | 17.14 | 11.81 | 234.92 | 0.2437 | -607.0 | -609.4 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -11.96 | 17.03 | 11.71 | 242.75 | 0.2244 | -1042.0 | -777.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -10.52 | 16.76 | 11.44 | 248.41 | 0.2106 | -648.0 | -441.5 | |
| 0.00 | 4.58 | 0.00 | 2.32 | -9.80 | 16.64 | 11.32 | 251.53 | 0.2048 | -737.0 | -637.9 | |
| 0.00 | 6.78 | 0.00 | 3.43 | -10.28 | 16.47 | 11.15 | 249.02 | 0.2047 | -1070.0 | -896.2 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -12.51 | 16.56 | 11.23 | 239.57 | 0.2216 | -697.0 | -591.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.05 | 16.28 | 10.95 | 249.82 | 0.2003 | -708.0 | -596.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -14.24 | 16.26 | 10.94 | 232.42 | 0.2331 | -856.0 | -734.8 | |
| 21.74 | 175.91 | 11.01 | 89.03 | -12.04 | 16.01 | 10.68 | 240.32 | 0.2096 | -1193.2 | -543.3 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -10.48 | 15.86 | 10.53 | 247.06 | 0.1961 | -822.0 | -663.3 | |
| 9.33 | -63.00 | 4.72 | -63.00 | -12.26 | 15.67 | 10.35 | 238.64 | 0.2065 | -1115.6 | 999999 | |
| 2.46 | -63.00 | 1.25 | -63.00 | -11.93 | 15.60 | 10.27 | 239.89 | 0.2027 | -1287.8 | 999999 | |
| 1.85 | -63.00 | 0.93 | -63.00 | -11.96 | 15.41 | 10.09 | 239.30 | 0.2002 | -1355.3 | 999999 | |
| 0.00 | 2.55 | 0.00 | 1.29 | -10.55 | 15.33 | 10.01 | 245.71 | 0.1883 | -911.0 | -826.4 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -9.62 | 15.24 | 9.92 | 250.27 | 0.1813 | -935.0 | -770.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.59 | 15.06 | 9.73 | 250.09 | 0.1781 | -830.0 | -688.2 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -9.20 | 14.92 | 9.60 | 251.97 | 0.1739 | -789.0 | -658.2 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.89 | 14.51 | 9.18 | 242.13 | 0.1781 | -842.0 | -670.0 | |
| 0.00 | 2.02 | 0.00 | 1.02 | -11.28 | 14.39 | 9.07 | 239.89 | 0.1796 | -1046.0 | -773.3 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -9.61 | 13.61 | 8.29 | 246.99 | 0.1551 | -769.0 | -617.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
