SDO HMI 2014-04-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.90 | 189.28 | 31.60 | 98.42 | 10.37 | 0.69 | -4.64 | 14.68 | 0.3032 | -204.5 | -187.4 | |
|
previous
or next observation for the same group /

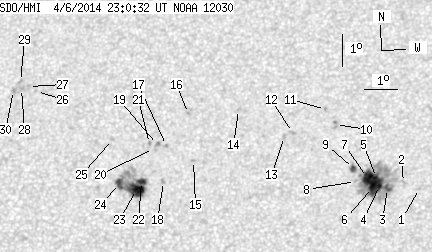

back to the solar disc SDO HMI 2014-04-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.64 | 9.86 | 5.33 | 0.01 | 359.97 | 0.2782 | -616.0 | -421.7 | |
| 0.00 | 2.02 | 0.00 | 1.04 | 10.05 | 4.84 | -0.48 | 1.68 | 0.2814 | -579.0 | -553.3 | |
| 2.82 | 94.25 | 1.45 | 48.65 | 9.86 | 4.36 | -0.97 | 3.43 | 0.2787 | -914.9 | -407.6 | |
| 5.37 | -3.00 | 2.77 | -3.00 | 9.96 | 4.11 | -1.21 | 4.27 | 0.2805 | -1145.3 | 999999 | |
| 3.52 | -3.00 | 1.82 | -3.00 | 10.21 | 4.02 | -1.30 | 4.52 | 0.2849 | -1092.9 | 999999 | |
| 10.74 | -3.00 | 5.54 | -3.00 | 9.90 | 3.90 | -1.42 | 5.04 | 0.2798 | -1326.5 | 999999 | |
| 10.12 | -3.00 | 5.23 | -3.00 | 10.21 | 3.75 | -1.58 | 5.47 | 0.2853 | -1113.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 10.09 | 3.38 | -1.94 | 6.78 | 0.2839 | -538.0 | -463.2 | |
| 2.20 | 4.84 | 1.14 | 2.50 | 10.49 | 3.32 | -2.00 | 6.82 | 0.2908 | -925.7 | -680.9 | |
| 0.00 | 2.55 | 0.00 | 1.33 | 11.88 | 2.76 | -2.56 | 8.03 | 0.3150 | -476.0 | -738.4 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 12.36 | 2.45 | -2.88 | 8.75 | 0.3235 | -729.0 | -625.0 | |
| 0.00 | 2.55 | 0.00 | 1.33 | 11.64 | 1.44 | -3.88 | 12.21 | 0.3148 | -761.0 | -602.7 | |
| 0.00 | 1.76 | 0.00 | 0.92 | 11.51 | 1.20 | -4.12 | 13.04 | 0.3137 | -658.0 | -637.5 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 12.38 | 359.77 | -5.55 | 16.54 | 0.3336 | -676.0 | -545.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 10.79 | 358.42 | -6.91 | 22.04 | 0.3161 | 785.0 | 694.3 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 12.28 | 358.23 | -7.10 | 20.89 | 0.3401 | 896.0 | 760.1 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 11.28 | 357.57 | -7.75 | 23.82 | 0.3290 | 918.0 | 768.2 | |
| 0.00 | 1.85 | 0.00 | 0.96 | 10.15 | 357.51 | -7.82 | 25.49 | 0.3124 | 975.0 | 817.4 | |
| 0.00 | 2.64 | 0.00 | 1.39 | 11.31 | 357.29 | -8.03 | 24.53 | 0.3314 | 951.0 | 747.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 11.19 | 357.17 | -8.15 | 25.01 | 0.3303 | 508.0 | 556.2 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 11.35 | 357.04 | -8.28 | 25.15 | 0.3336 | 718.0 | 548.2 | |
| 4.40 | 54.12 | 2.30 | 28.27 | 10.16 | 356.83 | -8.49 | 27.37 | 0.3176 | 971.2 | -86.9 | |
| 16.98 | -22.00 | 8.86 | -22.00 | 9.91 | 356.68 | -8.64 | 28.15 | 0.3151 | 808.3 | 999999 | |
| 4.75 | -22.00 | 2.49 | -22.00 | 10.11 | 356.15 | -9.17 | 29.28 | 0.3222 | -1121.4 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.93 | 11.50 | 355.89 | -9.43 | 27.93 | 0.3442 | -839.0 | -598.0 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 13.07 | 353.46 | -11.87 | 31.41 | 0.3860 | 434.0 | 471.1 | |
| 0.00 | 2.20 | 0.00 | 1.18 | 13.23 | 353.20 | -12.13 | 31.74 | 0.3904 | 678.0 | 557.9 | |
| 0.00 | 2.46 | 0.00 | 1.33 | 13.18 | 352.98 | -12.34 | 32.28 | 0.3915 | 816.0 | 751.8 | |
| 0.00 | 1.94 | 0.00 | 1.04 | 13.40 | 352.94 | -12.39 | 32.05 | 0.3949 | 758.0 | 593.1 | |
| 0.00 | 2.20 | 0.00 | 1.18 | 13.12 | 352.73 | -12.59 | 32.88 | 0.3929 | 794.0 | 664.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
