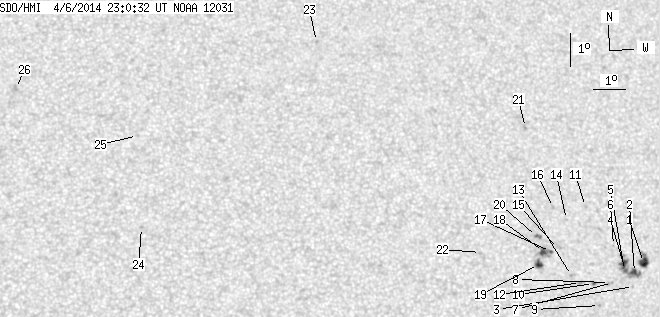

SDO HMI 2014-04-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.64 | 75.52 | 11.97 | 41.44 | 3.07 | 28.67 | 23.35 | 292.45 | 0.4298 | -198.5 | -181.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-06 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 10.56 | 3.20 | 5.91 | 2.62 | 31.68 | 26.36 | 287.80 | 0.4677 | -809.1 | -588.6 | |
| 3.43 | 23.76 | 1.91 | 13.23 | 2.31 | 31.37 | 26.05 | 287.36 | 0.4616 | -884.2 | -725.0 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 1.88 | 31.33 | 26.01 | 286.51 | 0.4590 | -606.0 | -457.0 | |
| 0.70 | -2.00 | 0.39 | -2.00 | 2.35 | 31.07 | 25.75 | 287.67 | 0.4574 | -1066.2 | 999999 | |
| 3.96 | -2.00 | 2.20 | -2.00 | 2.53 | 31.01 | 25.69 | 288.08 | 0.4574 | -1010.8 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 3.09 | 30.69 | 25.37 | 289.48 | 0.4557 | -654.0 | -515.0 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 1.97 | 30.63 | 25.31 | 287.16 | 0.4490 | -663.0 | -548.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 1.96 | 30.53 | 25.21 | 287.22 | 0.4475 | -615.0 | -498.3 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 1.25 | 30.19 | 24.87 | 285.92 | 0.4390 | -779.0 | -724.1 | |
| 0.53 | 1.58 | 0.29 | 0.87 | 1.91 | 30.00 | 24.68 | 287.49 | 0.4393 | -571.2 | -450.6 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 4.24 | 29.80 | 24.47 | 292.58 | 0.4493 | -531.0 | -499.5 | |
| 0.00 | 1.94 | 0.00 | 1.06 | 1.92 | 29.57 | 24.25 | 287.82 | 0.4330 | -840.0 | -778.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 2.12 | 29.28 | 23.96 | 288.49 | 0.4296 | 561.0 | 391.0 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 3.82 | 29.16 | 23.83 | 292.25 | 0.4375 | 654.0 | 484.7 | |
| 0.00 | 0.53 | 0.00 | 0.29 | 2.92 | 28.87 | 23.55 | 290.58 | 0.4280 | -9.0 | -8.3 | |
| 0.00 | 1.67 | 0.00 | 0.92 | 4.16 | 28.74 | 23.42 | 293.37 | 0.4336 | -738.0 | -573.4 | |
| 0.53 | 10.56 | 0.29 | 5.76 | 2.82 | 28.60 | 23.28 | 290.58 | 0.4235 | 731.2 | 693.5 | |
| 2.99 | -17.00 | 1.63 | -17.00 | 2.81 | 28.38 | 23.05 | 290.76 | 0.4200 | 948.8 | 999999 | |
| 3.34 | 5.37 | 1.82 | 2.92 | 2.41 | 28.20 | 22.88 | 290.00 | 0.4152 | 679.9 | 466.3 | |
| 0.44 | 2.64 | 0.24 | 1.44 | 3.26 | 28.16 | 22.83 | 291.94 | 0.4195 | 795.2 | 678.8 | |
| 0.00 | 1.94 | 0.00 | 1.07 | 6.58 | 27.92 | 22.60 | 299.18 | 0.4391 | -647.0 | -482.2 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 2.70 | 26.33 | 21.01 | 292.42 | 0.3890 | -670.0 | -580.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 9.00 | 21.33 | 16.01 | 313.48 | 0.3770 | 696.0 | 547.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 3.15 | 15.74 | 10.42 | 311.72 | 0.2430 | 731.0 | 604.9 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 5.96 | 15.67 | 10.34 | 319.51 | 0.2763 | 721.0 | 585.5 | |
| 0.00 | 4.14 | 0.00 | 2.12 | 7.35 | 11.97 | 6.64 | 333.87 | 0.2617 | 852.0 | 532.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
