SDO HMI 2014-04-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.37 | 445.44 | 41.01 | 236.14 | 12.71 | 13.47 | 8.70 | 335.46 | 0.3569 | -1104.2 | -384.8 | |
|
previous
or next observation for the same group /

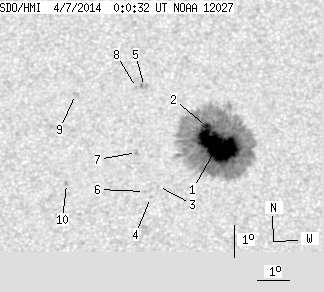

back to the solar disc SDO HMI 2014-04-07 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.88 | 431.80 | 38.62 | 228.94 | 12.66 | 13.58 | 8.81 | 335.13 | 0.3568 | -1347.5 | -396.6 | |
| 4.49 | -1.00 | 2.39 | -1.00 | 13.26 | 13.26 | 8.49 | 336.62 | 0.3635 | -922.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 11.34 | 11.71 | 6.94 | 338.51 | 0.3248 | -668.0 | -522.3 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 10.99 | 11.45 | 6.68 | 338.83 | 0.3178 | 654.0 | 472.8 | |
| 0.00 | 3.87 | 0.00 | 2.07 | 14.52 | 11.37 | 6.60 | 342.53 | 0.3719 | -639.0 | -678.7 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 11.18 | 11.27 | 6.50 | 339.57 | 0.3197 | 638.0 | 498.1 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 12.41 | 11.06 | 6.29 | 341.45 | 0.3376 | -645.0 | -504.7 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 14.48 | 11.12 | 6.35 | 343.12 | 0.3702 | -691.0 | -470.7 | |
| 0.00 | 2.29 | 0.00 | 1.21 | 14.24 | 9.21 | 4.44 | 347.87 | 0.3586 | 637.0 | 559.3 | |
| 0.00 | 1.67 | 0.00 | 0.87 | 11.41 | 8.88 | 4.11 | 346.92 | 0.3119 | 839.0 | 691.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
